2026 Magnetic Track Light System Detailed Explanation: Selection, Quotation, and Selection Guide

By SmartGlow June 2nd, 2026

The core charm of this magnetic track light system lies in its tool free magnetic attraction design. Various magnetic track light fixtures such as spotlights, floodlights, pendant lights, etc. can be easily attached to slender tracks and adjusted in position and angle at any time, creating precise key lighting or ambient lighting without complex construction.

When exploring modern lighting solutions, magnetic track lighting is undoubtedly one of the most highly regarded choices. It completely changes the fixed mode of traditional lighting, making the layout of light unprecedentedly free.
The core charm of this magnetic track light system lies in its tool free magnetic attraction design. Various magnetic track light fixtures such as spotlights, floodlights, pendant lights, etc. can be easily attached to slender tracks and adjusted in position and angle at any time, creating precise key lighting or ambient lighting without complex construction. Whether it is surface magnetic track lighting, recessed magnetic track lighting, or suspended magnetic track lighting, they can inject a high-end texture into the space with minimalist lines.

More importantly, the magnetic track lighting system is not only flexible, but also combines security and intelligence. It includes two options: 24V/48V low voltage and 220V high voltage. The low voltage version has outstanding safety and can avoid electric shock hazards for home use. The high voltage version does not require an external transformer and has stronger load capacity, making it suitable for large-area tooling projects. Both specifications can seamlessly integrate with intelligent systems to achieve scene dimming, surpassing the limitations of traditional downlights and track lights, becoming the preferred solution for designers, contractors, and smart home enthusiasts to create modern spatial lighting.

The principle and various installation forms of magnetic track lights
Many designers who first encounter magnetic track lighting are only attracted by the simple and slender track lines on the ceiling. In fact, the operating mechanism of the entire magnetic track lighting system is hidden inside the track profiles.

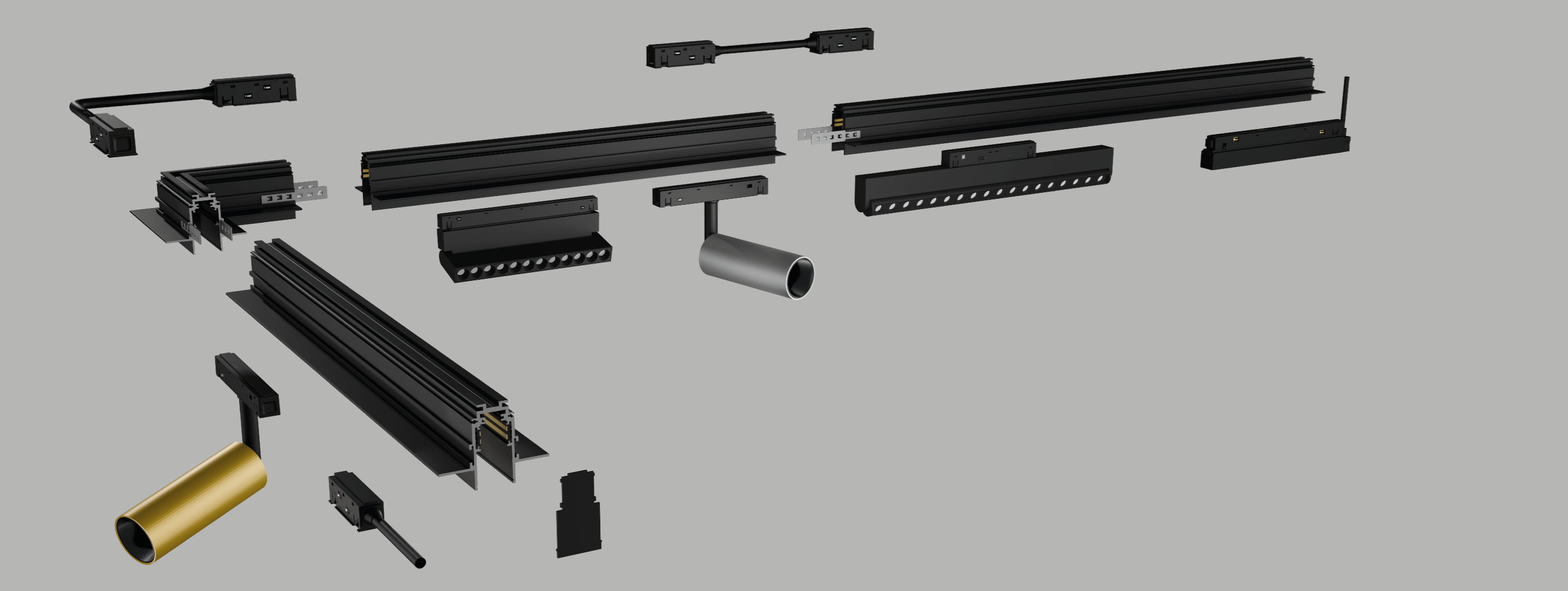

The core of the entire set of lighting fixtures is built on aluminum alloy tracks, with conductive copper strips recessed inside the tracks and various magnetic track light fixtures, such as spotlights, linear lights, and hanging chandeliers, all equipped with magnetic terminals. At the moment of light fixture adsorption, the magnet completes the clamping fixation, and the internal contacts are attached to the copper strip to be powered on. Unified 24V/48V low voltage or 220V high voltage drive stabilization not only avoids electric shock hazards, but also effectively optimizes overall energy consumption.

According to the different ceiling conditions of home decoration and workwear, magnetic ceiling track light is subdivided into four practical installation schemes:

Surface magnetic track light is directly fixed to the top surface without the need for a suspended ceiling. It is the preferred option for renovating old houses and renovating cement roof spaces.
Hanging installation of lifting rails with suspension rods, suitable for office areas and large flat open spaces; Borderless embedded can be flush with the ceiling plaster, with an invisible texture that fills the space, and is commonly used in villas and galleries.
The recessed track with edges has a small exposed side, which is easy to construct and cost-effective, making it a popular choice for apartments and commercial exhibition halls.

Advantages and disadvantages of magnetic track lighting
When selecting a magnetic track lighting system, it is necessary to objectively consider the advantages and disadvantages of this lighting product, and make a reasonable selection based on home decoration and tooling needs.

Product advantages

Firstly, the flexibility of magnetic track light is fully utilized, and various types of magnetic track light fixtures can be freely added, removed, and moved in position, without the need for drilling or wiring to adjust the lighting layout.
The minimalist track lines are suitable for various home decoration styles, whether it is surface magnetic track light or recessed magnetic track light, they can create a clean and high-end top effect.
Secondly, the mainstream product adopts a 24V/48V low-voltage architecture, which has low leakage risk and excellent safety factor for home use.
At the same time, the entire set of magnetic track lighting generally supports smart protocols such as Zigbee and DALI, making it easy to integrate with whole house intelligence and achieve dimming and scene linkage.

existing shortcomings

In terms of cost, the entire set of magnetic track lighting systems requires higher investment in tracks, drivers, and lighting fixtures compared to traditional ceiling lighting fixtures.
The pendant light accessories mounted on the track have a load-bearing limit and cannot be paired with heavy lighting fixtures.
In addition, there is currently no unified standard in the industry, and the specifications of magnetic track lights from different brands are not compatible. It is difficult to mix and match additional lighting fixtures across brands in the future.

Magnetic Track Lighting Price List & Influencing Factors
Project budget is the core factor for contractors to choose between magnetic track lighting system and conventional recessed downlights. Below is the updated price table in English:

Item	Unit Price (USD)	Details
Magnetic Track Rail	3.5～12 per meter	Covers surface magnetic track light & magnetic ceiling track light. Price varies by aluminum thickness and surface finishing
Magnetic Track Light Fixtures	5.8～19 per piece	Includes spotlights, flood lights, linear lights & pendants; cost differs from LED chip brand, CRI value and anti-glare structure
Power Driver	9～16.5 per unit	Standard DC driver within range; smart drivers with Zigbee/DALI/Casambi cost 30%~60% extra
Installation Accessories	1.2～5.8 per piece	Straight connectors, corner joints & end caps; pricing based on plastic fire rating and copper terminal quality

Key Factors That Affect Pricing

Raw Material: Thicker aluminum rail and high-purity copper conductors raise the cost of magnetic track lights. Import LED chips also push up fixture prices.
Mounting Type Price Ranking: Recessed trimless > recessed with trim > suspended > surface magnetic track light. Recessed version has the highest construction & production cost.
Smart Function: Ordinary constant-voltage drivers are affordable; smart dimmable drivers greatly increase total cost of full magnetic track lighting systems.
Order Quantity: Small retail orders follow original price; bulk commercial orders enjoy 15%~20% volume discount.
Light Parameter: High CRI(≥95) and deep anti-glare lamps carry obvious premium over basic models.

Tips for improving the user experience of magnetic track lighting
Intelligent Drive Upgrade
Replace the conventional power supply with Zigbee, DALI, and Casambi smart drivers to achieve branch dimming, scene mode, and voice linkage, allowing the entire magnetic track lighting system to be integrated into the smart home of the whole house.

Expansion of multifunctional lighting fixtures
Install various magnetic track light fixtures such as pendant lights, grille lights, Bluetooth speaker lights, etc. on the track, and match them with ambient light, accent lighting, and ambient lighting as needed, without the need to modify the ceiling.

Optical performance upgrade
Replace the CRI ≥ 95 high color rendering and deep anti glare lamp body to reduce glare, restore the true color of items, and optimize eye comfort for home and commercial use.

Rail expansion accessories
Paired with corner, straight through, and spliced terminals, freely extend the surface magnetic track light (surface mounted) and magnetic ceiling track light (embedded) tracks, and flexibly add new lighting fixtures in the later stage to expand the magnetic track lighting systems.

Color temperature adjustable lamp head optional
Using tri color dimming/infinite color matching magnetic suction lamps, one click switching between warm light, neutral light, and cool white light, suitable for different lighting needs such as living, makeup, and reception.

Suspension lifting accessories
Install hanging ropes and suspension rod components in flat and elevated spaces, replace conventional tracks with suspended ones, and enrich the height and lighting levels of the space.

summary
The magnetic track lighting system stands out with multiple advantages such as flexible lighting, low voltage safety, and intelligent expansion: it can significantly reduce the renovation construction period at the construction level; The versatile module combinations provide designers with ample freedom in light and shadow creation; The comprehensive intelligent protocol adaptation capability facilitates system integrators to connect with various whole house automation platforms.

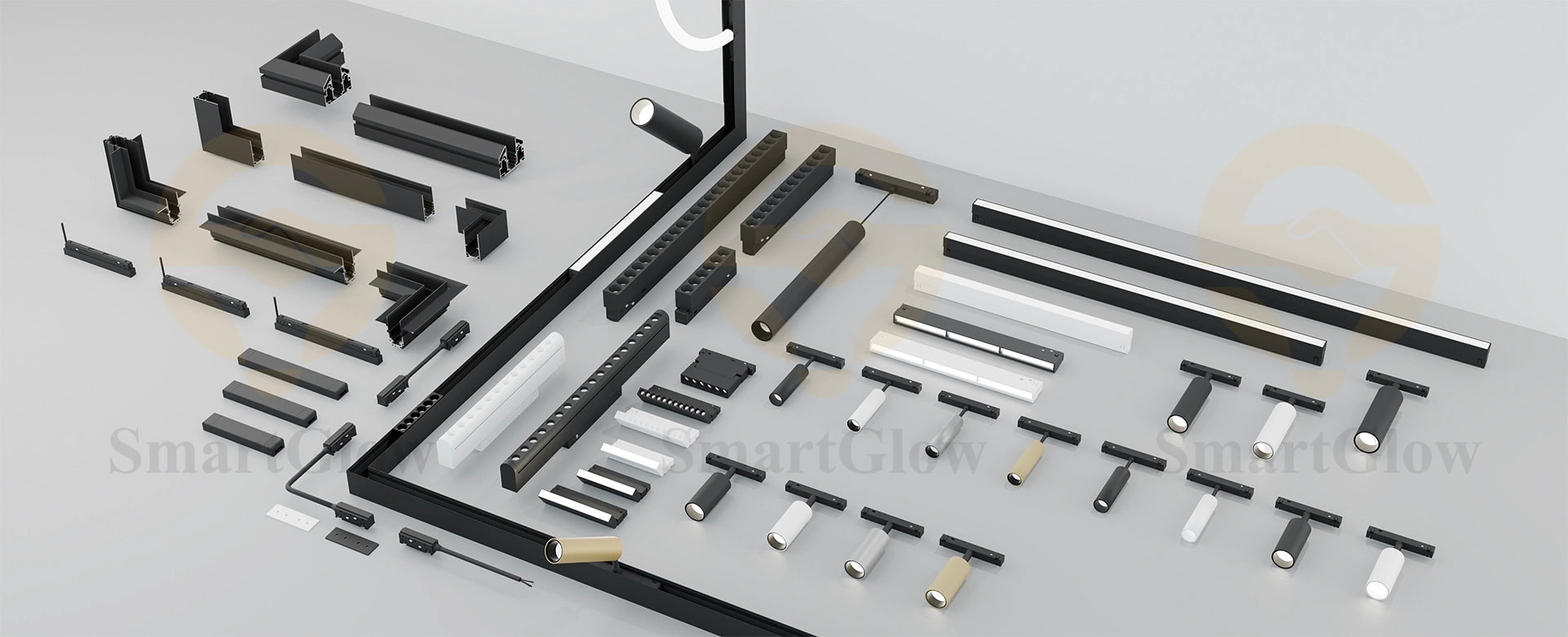

SmartGlow offers a full range of magnetic products, including various specifications of magnetic tracks, including surface magnetic track light, embedded magnetic ceiling track light, and other full category specifications. It supports OEM customization and intelligent solution matching. If you have project selection needs, please feel free to consult and inquire at any time.

FAQ
Q1: What is a magnetic track lighting system?
A1: Magnetic track lights are currently the mainstream modular lighting products. Unlike traditional fixed lighting fixtures, the entire system consists of track profiles and freely combinable lighting modules. All lighting fixtures rely on magnetic suction structures for installation, without the need for screws to fix them. They can adjust the position, quantity, and type of lights according to space requirements, making them a new generation of lighting solution that replaces traditional tube lights and old-fashioned track lights.

Q2: How is the magnetic track light powered on to emit light?
A2: Its core relies on the pure copper conductive strip embedded in the high-quality aluminum alloy track to achieve power supply. The lamp comes with a magnetic conductive joint, which can automatically align and power on after being attached to the track. The system is divided into a dual power supply scheme, with 24V/48V low voltage models using dedicated drivers for stable power supply, ensuring safety and energy efficiency; The 220V high-voltage model does not require a transformer and has simpler wiring, which can meet the power supply needs of different scenarios such as home decoration and tooling.

Q3: What is the budget cost for the entire set of magnetic track lighting?
A3: Magnetic track lights belong to modular combination products, which can be matched and charged according to demand. The overall cost consists of four parts: track profile, lighting module, power drive, and installation accessories. The process, optical parameters, intelligent functions, and procurement quantity will directly affect the final quotation. Compared with traditional lighting fixtures, it is more suitable for high-end precision lighting projects.

Q4: What are the advantages and disadvantages of magnetic track lights compared to traditional lighting fixtures?
A4: The advantages are very prominent, with a minimalist linear appearance that adapts to various decoration styles. The lighting layout can be flexibly customized, supporting intelligent dimming linkage. The low-voltage version has a high safety factor and is convenient for construction and renovation. The only shortcoming is that the initial investment cost is slightly higher, the load-bearing capacity of the lighting fixtures is limited by regulations, and the industry brand specifications are not unified. Most cross brand accessories cannot be used interchangeably.

Q5: Are there any electrical safety hazards for household magnetic track lights?
A5: There's absolutely no need to worry. The mainstream household magnetic track lights use ultra-low voltage power supply, far below the safe electric shock threshold of the human body. Daily replacement and movement of the lights do not require power outage, ensuring safe operation. Commercial high-voltage models have undergone insulation upgrade treatment, meeting protection performance standards, stable and durable, providing comprehensive protection for electrical safety in both home and commercial scenarios.

Q6: Can magnetic track lights be compatible with whole house intelligent automation systems?
A6: Supports intelligent protocol integration across all categories. By simply pairing with compatible smart driver devices, it can be compatible with mainstream smart systems such as DALI, KNX, Casambi, ZigBee, etc., enabling remote light control, infinite dimming, scene switching, voice linkage and other functions, perfectly adapting to smart home and commercial intelligent lighting projects.

Q7: What are the installation methods and suitable scenarios for magnetic track lights?
A7: The product supports four mainstream installation processes, covering all scenario requirements. The surface mounted design is suitable for renovating spaces without suspended ceilings, while the suspended design is suitable for large office spaces. The borderless embedded design focuses on high-end minimalist decoration, while the edge embedded design has excellent cost-effectiveness and is widely suitable for various home decoration and workwear projects such as apartments, exhibition halls, villas, and shops.
