Recessed Downlight Selection And Installation Guide
By SmartGlow
June 6th, 2026
Recessed downlight, also known as downlights or can lights, is installed with the main body embedded inside the ceiling or wall. After installation, the light surface is flush with the top surface, and the overall line is neat and flat. The lamp body driver and wiring components are all hidden inside the ceiling, with only the light-emitting surface exposed, creating a clean and simple visual experience.
Recessed downlight, also known as downlights or can lights, is installed with the main body embedded inside the ceiling or wall. After installation, the light surface is flush with the top surface, and the overall line is neat and flat. The lamp body driver and wiring components are all hidden inside the ceiling, with only the light-emitting surface exposed, creating a clean and simple visual experience. The mainstream LED recessed downlight is equipped with energy-saving LED light sources, which have lower energy consumption and longer service life compared to traditional light sources.
When selecting a recessed LED downlight for home decoration and commercial projects, a comprehensive selection should be made from multiple dimensions: the mainstream hole specifications on the market are 2 inches, 4 inches, and 6 inches, and the recessed downlight trim style and light color temperature should be determined according to the needs. Preferring flexible changes in light and shadow, dimmable recessed downlights dimming downlights can be preferred to freely control the brightness of the space. This article provides a detailed analysis of various segmented products, covering trim recessed downlights such as frameless down lights recessed adjustable downlight， Facilitating designers to quickly determine adaptation plans based on usage scenarios.
How to install and arrange recessed downlights?
Recessed downlight can be divided into three installation schemes based on the construction situation: New Construction, Old House Renovation, and Old Lamp Replacement

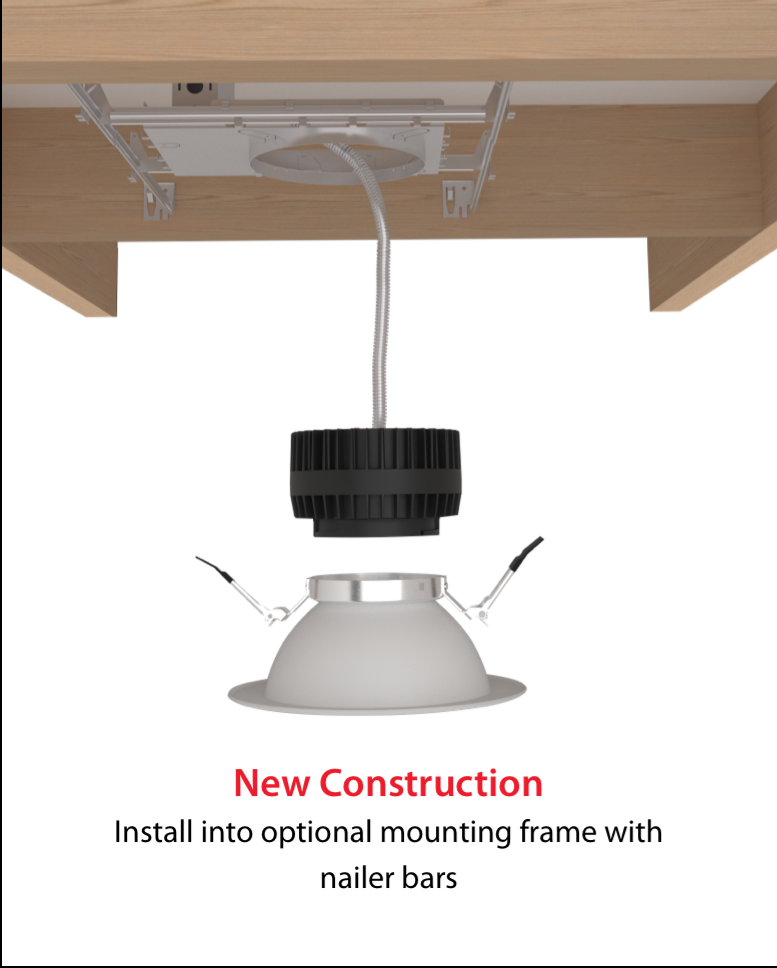

- During the new hard installation phase, pre embedded bracket type downlights are selected, which are fixed between the wooden keel of the ceiling with nail strips.

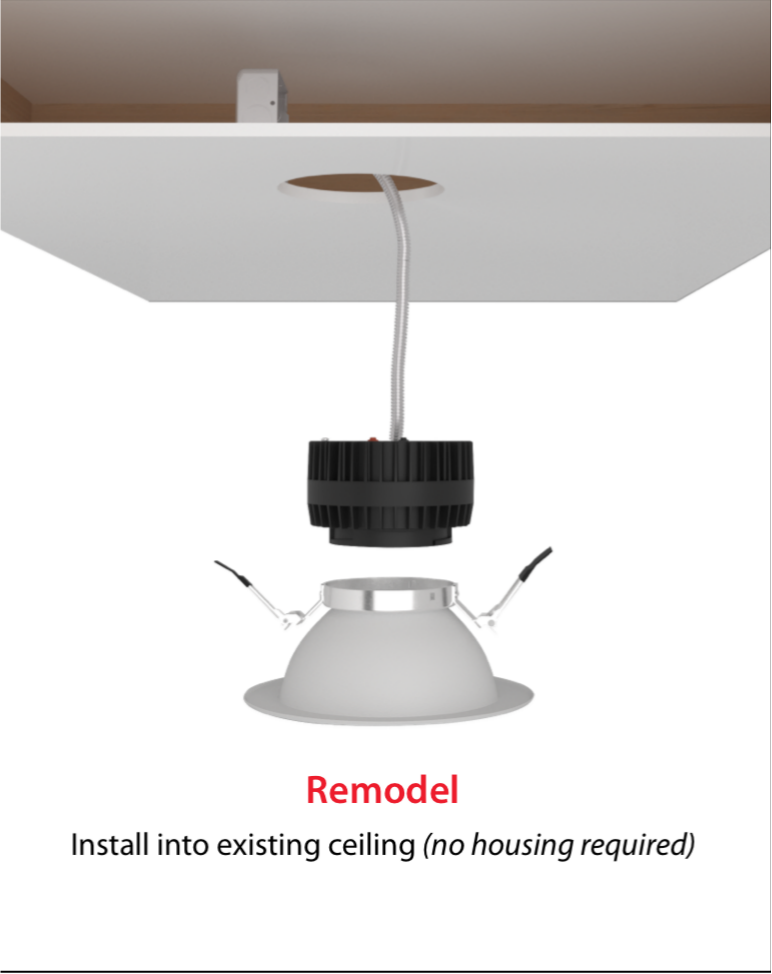

- When there is no pre embedded bottom box in the old house, Remodel open hole style is used, which can be directly inserted into the finished ceiling.

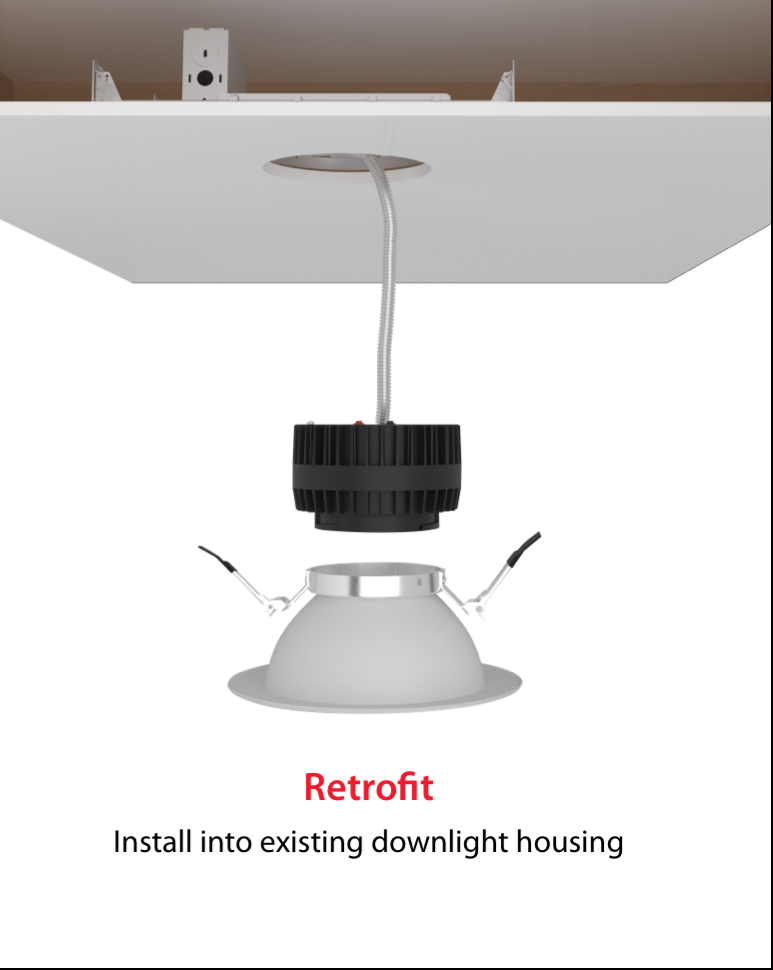

- The retrofit of the original old-fashioned downlight is preferred with the retrofit replacement type, which can be directly installed into the existing downlight rechessed can old shell without the need to re open the top and slot.
Precautions
Choose a location that avoids concrete ceilings and carved gypsum ceilings, which are more suitable for chandeliers.
If insulation cotton is laid inside the ceiling, it is necessary to use IC fire rated LED recessed downlight.
The regular installation distance from the wall is about 90cm to eliminate the problems of wall shadows and low floor height.
The spacing between the lighting fixtures follows the principle of halving the floor height. For a space with an 8-foot floor height, the spacing between the 4-inch LED recessed downlights should be controlled at 4 feet.
Subdivide scenes and arrange lights as needed

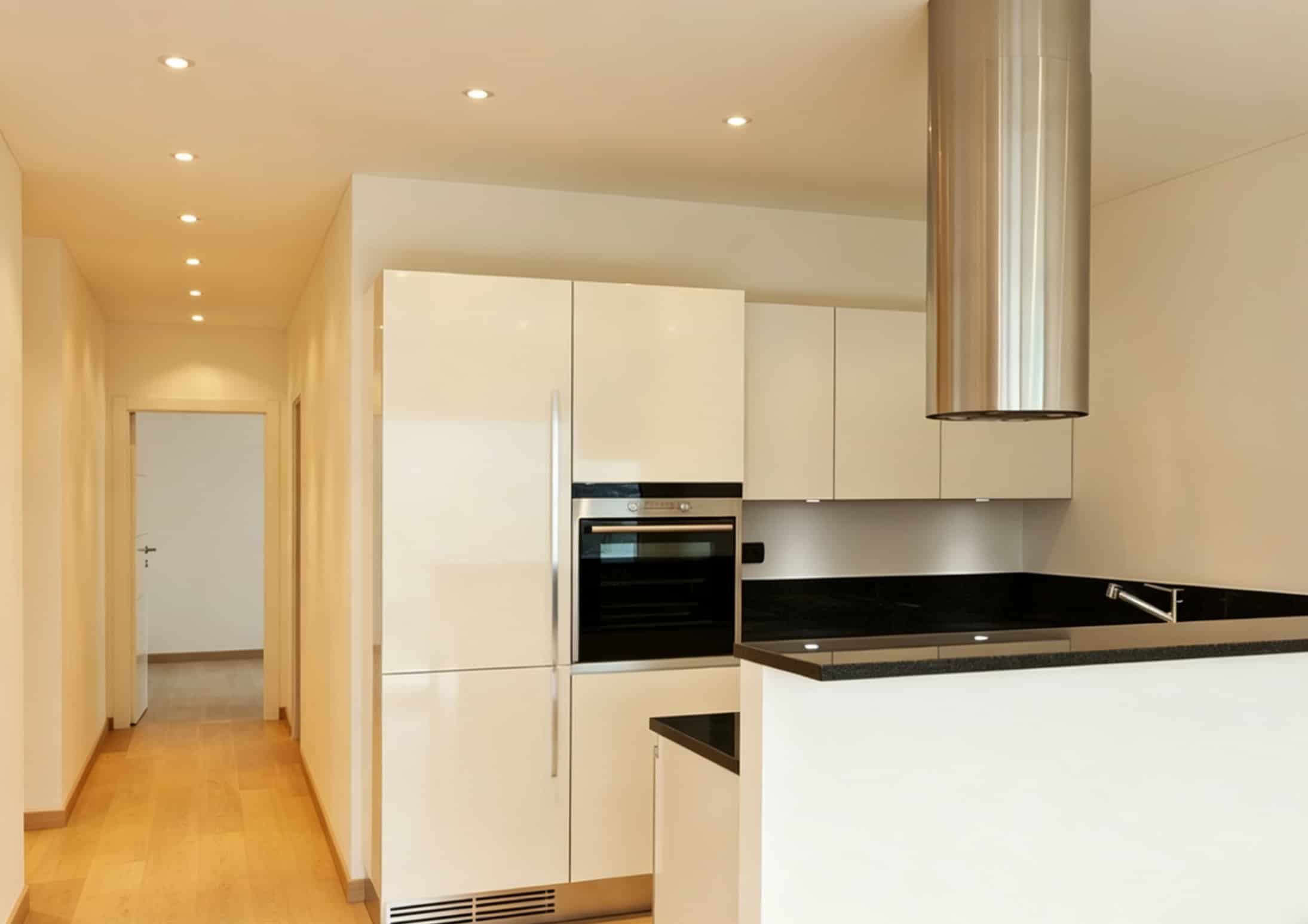

The kitchen space is equipped with recessed kitchen ceiling downlights, and a downlight is installed directly above the stove and sink to supplement the work lighting. A small-sized 2-inch Led recessed downlight can also be installed at the bottom of the cabinet to brighten the countertop.
Hang paintings, decorations, fireplaces and other key areas, and pair them with recessed adjustable downlight and adjustable corner downlights for focused lighting. If you want to control the light freely, you can choose dimmable recessed downlights dimming style.
If you pursue a minimalist top, you can choose trim recessed downlights frameless downlights.
How to choose recessed LED downlights
Mainstream category of recessed downlights
Recessed downlight is divided into eight categories based on its appearance, size, and dimming structure. Different styles are suitable for various construction scenarios such as new house hard decoration, old house renovation, and commercial workwear.
1. Trimless recessed downlights
Abandoning the traditional recessed downlight exposed decorative frame, the lamp body is pre recessed into the ceiling during construction, and after completion, the lamp surface is seamlessly flush with the ceiling panel, visually weakening the presence of the lamp, making it the preferred choice for minimalist centerless lamp design today. Mainly used for basic lighting in the living room, bedroom, and hallway of high-end new houses, adapted to the installation method of New Construction, with a clean and neat overall roof surface.
2. Mini recessed downlight (2 inch)
The mainstream aperture specification is locked at 2 inches, and the lamp body is small and exquisite, occupying very little ceiling height. The most commonly classified as received kitchen ceiling downlights, installed under the bottom of the kitchen cabinet to precisely supplement the light source for countertop operations. At the same time, it is suitable for auxiliary lighting in small areas such as wardrobe interiors, foyer crevices, and small display cabinets, and is the preferred choice for fine lighting in small spaces.
3. Square recessed downlight
The square and rugged outline is different from traditional circular recessed tube lights, with a prominent design sense, leaning towards light luxury home decoration, boutique retail stores, office buildings, and other workwear scenes. The product can be equipped with dimmable repeated downlights, which ensure basic lighting during the day and create a soft atmosphere by lowering the brightness at night, suitable for multi period lighting needs throughout the house.
4. Round recessed downlight
The most versatile classic styles in the industry, the 4-inch LED recessed downlight and 6-inch LED recessed downlight are standard sizes for home decoration in North America, with ample supply and easy replacement. It can be pre recessed and installed in new houses, or directly installed into old downlight recessed can tube lamp shells through retrofit solutions. It is widely used for basic lighting in conventional spaces such as kitchens, bathrooms, restaurants, and basements.
5. Ultra thin recessed downlight
Simplify the lamp body and driver height, and have low requirements for reserved space in the ceiling interlayer. It is specifically designed for renovation projects of old houses with low floor height and narrow ceiling interlayer, and is compatible with Remodel renovation technology. It does not require large-scale roof breaking and slotting, reducing the cost of renovation construction and the risk of ceiling damage.
6. Eyeball recessed down light
Adopting a curved biomimetic eyeball lamp head structure, supporting horizontal 360 ° adjustment, excellent beam convergence, and focusing on precise fixed-point lighting. Specially designed to focus on soft decoration highlights such as wall decoration oil paintings, small ornaments by the dining area, and fireplace shapes, making the spatial display more layered.
7. Gimbal recessed adjustable downlight
The adjustable range far exceeds that of the eyeball model, and the lamp head not only supports horizontal 360 ° adjustment, but also can deflect up and down 30 ° or 45 °, allowing for free change of the beam irradiation direction. It is a commonly used lighting fixture for physical store shelves, art exhibition halls, living room TV background walls, and study display areas. The lighting position can also be adjusted according to the needs of later soft decoration changes.
At present, the vast majority of styles on the market have been upgraded to LED recessed downlight, which has lower energy consumption and longer service life compared to traditional halogen tube lights. Some high-end models also support multi color temperature switching.
How to choose the size of recessed Led downlight?
When selecting a recessed downlight, the opening size is the core basis for selection. The measurement diameter should be based on the inner diameter of the lamp body opening, and should not be included in the width of the decorative frame of the peripheral recessed downlight trim. The LED recessed downlight of the corresponding inch size should be selected based on the floor height and spatial function.
1. Mini 2-inch Recessed LED downlight
The opening size is small and occupies very little ceiling space. It is mostly used as a received kitchen ceiling downlight for the bottom of cabinets, accurately filling the kitchen countertop with light, and also suitable for small areas such as cabinets and foyer crevices for local auxiliary lighting.
2. 4inch led recessed downlight
The popular size for home decoration, with soft and moderate lighting, is the preferred lighting fixture for kitchen spaces. This tube lamp is commonly used above the stove and sink to supplement the work lighting. The basic lighting of small and medium-sized living rooms and corridors is also suitable, and the renovation of old houses can directly replace the old downlight recessed can shell.
3. 6 inch led recessed downlight
The main model commonly used in the market, with a wider coverage of light emission, focuses on universal basic lighting for the whole house, and is preferred for large living rooms, bedrooms, and public corridors. Dimmable repeated downlights dimming versions can be selected to freely change the brightness of the space.
4. 7-9 inch large caliber recessed Led downlight
Large sized light sources have a wide illumination range and are commonly used in villas with sufficient floor height, high-rise spaces, and commercial lobbies. They evenly distribute light over a large area, making it easy to create bright and open ambient light.
Additional reference for purchasing: If the floor height is low, choose ultra-thin tube lights as a priority. If the floor height is sufficient, you can match it with a rechecked adjustable downlight style as needed, balancing basic lighting and focused lighting.
Recessed Led downlight temperature and color matching configuration
When choosing LED recessed downlights, color temperature is the core parameter that determines the atmosphere of the space. Mainstream products are divided into three types of fixed CCT color temperature, and dimmable recessed downlights dimming models are generally equipped with multiple CCT switching configurations.
1. Soft warm light (2700K~3000K CCT)
Low color warm yellow light, with warm and soft light, creating a warm and cozy home atmosphere, commonly used in bedrooms and living rooms; Paired with black recessed downlights, the soft outfit has a stronger sense of layering.
2. Bright cool white light (4000K~4500K CCT)
Neutral and cool refreshing light source, with transparent light and clear vision, serves as the main lighting for recessed kitchen ceiling downlights and study workstations, meeting the lighting needs of fine operations.
3. Simulated sunlight (5000K~6500K CCT)
High CCT daylight color, highly replicated outdoor natural light spectrum, excellent color reproduction, commonly used in dressing rooms and collection exhibition halls, paired with recessed adjustable downlight, fully restores the original color of hanging paintings and ornaments.
Upgrade smart recessed Led downlight
1. Upgrade of light source and color temperature function
Traditional recessed downlights mostly have a fixed monochrome temperature, while smart LED recessed downlights have been fully upgraded with adjustable lighting and color matching configurations. Mainstream dimmable recessed downlights support stepless brightness adjustment, with a color temperature covering 2700K warm light to 6500K daylight. Before installation, the commonly used color temperature can be locked to adapt to differentiated lighting scenarios such as bedrooms and repeated kitchen ceiling downlights.
2. Intelligent interconnection
High end intelligent downlight, equipped with Bluetooth and WiFi communication modules, can be linked to mobile apps and intelligent voice devices. In addition to remote adjustment of brightness and color temperature, it is also possible to customize timed start stop and scene mode linkage, achieving automated lighting effects such as one click off of home lights and gradually turning on lights in the morning.
3. Commercial batch intelligent control
After installing smart recessed downlights in bulk in commercial stores and exhibition halls, they can be networked for unified management, allowing for one click switching between multiple lighting schemes for opening, closing, and welcoming, simplifying the operation and maintenance of lighting in large spaces.
summary
Whether using trimless recessed downlights or 4/6-inch LED recessed downlights to create a soft basic lighting for the whole house, or pairing them with recessed adjustable downlights or dimmable recessed downlights to focus on space highlights such as hanging paintings and cabinets, recessed downlights can flexibly adapt to various decoration styles such as home decoration, kitchen and commercial use, seamlessly integrating into ceiling design, balancing practical lighting and spatial aesthetics. Still struggling with size, color temperature, and style selection? Welcome to consult and help you accurately match the most suitable embedded lighting solution.
