The Best Way to Hang Curtains: What is An Recessed Curtain Track
By SmartGlow
May 20th, 2026
Understand the hidden recessed curtain track system to create a simple home decoration texture, select durable stretch ceiling aluminum invisible tracks, support black and white color matching, single and double track multiple styles, can be matched with LED light strips to create a warm atmosphere, covering installation tutorials and scene usage, suitable for both home and commercial use, easily creating a clean and high-end window edge aesthetics.
Advanced curtain design is not only about fabric and color, but also about the overall texture brought by the hanging method. The ideal curtain effect should be that the fabric naturally falls from the top, the lines are smooth and flowing, there are no exposed poles or messy hardware, visually clean and neat, which can not only raise the height of the space and create a sense of openness and transparency, but also weaken visual interference, making the space more peaceful and elegant.
This simple and beautiful high-end atmosphere is not accidental, but the exclusive advantage of recessed curtain tracks (also known as hidden curtain tracks or hidden sliding tracks). It is different from traditional exposed curtain rods. It is not abrupt, but cleverly hidden in the stretch ceiling, curtain box or top groove. It can also integrate with the lighting scheme and seamlessly blend with the building lines, allowing the curtains to fall from the ceiling and completely bid farewell to the cluttered feeling of exposed hardware.
This article will comprehensively analyze the recessed curtain track from the aspects of definition, core advantages, applicable scenarios, installation points, etc., taking you to understand this perfect curtain and lighting.
What is the hidden recessed curtain track system?

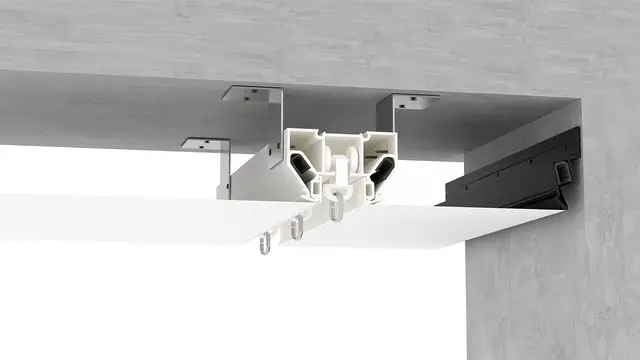

The hidden recessed curtain track system, in simple terms, is a curtain suspension solution that completely hides hardware components such as rails and pulleys. Different from traditional surface mounted exposed decorative poles, all mechanical structures are hidden without revealing, leaving only the curtains themselves, creating a clean and seamless visual effect. This system is also commonly referred to as recessed ceiling curtain track, invisible curtain rail, hidden ceiling slide rail, etc.
According to the ceiling structure and design requirements, there are mainly two mainstream implementation methods for concealed curtain systems:

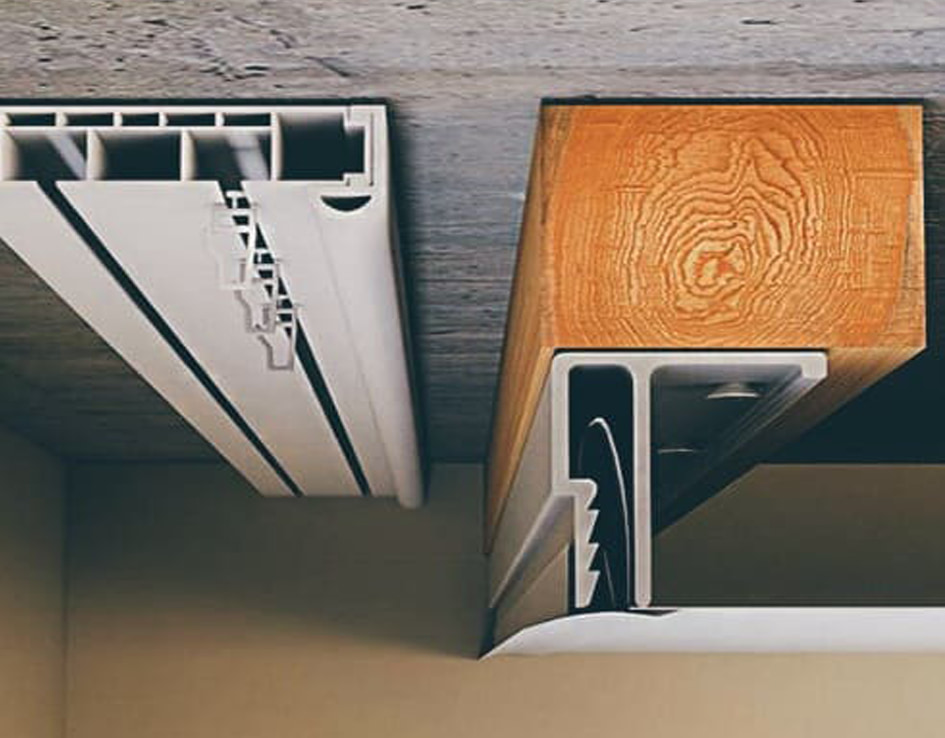

- One type is embedded installation, which embeds the track into the preset groove of the ceiling, ceiling gap or customized curtain box, and seamlessly connects with the top surface, which is truly "invisible".
- Another type is surface concealed installation, where the track is fixed to the ceiling surface but obscured by curtains, dedicated track boxes, or ceiling edge structures, completely hiding the hardware from normal view, balancing installation convenience and invisibility.

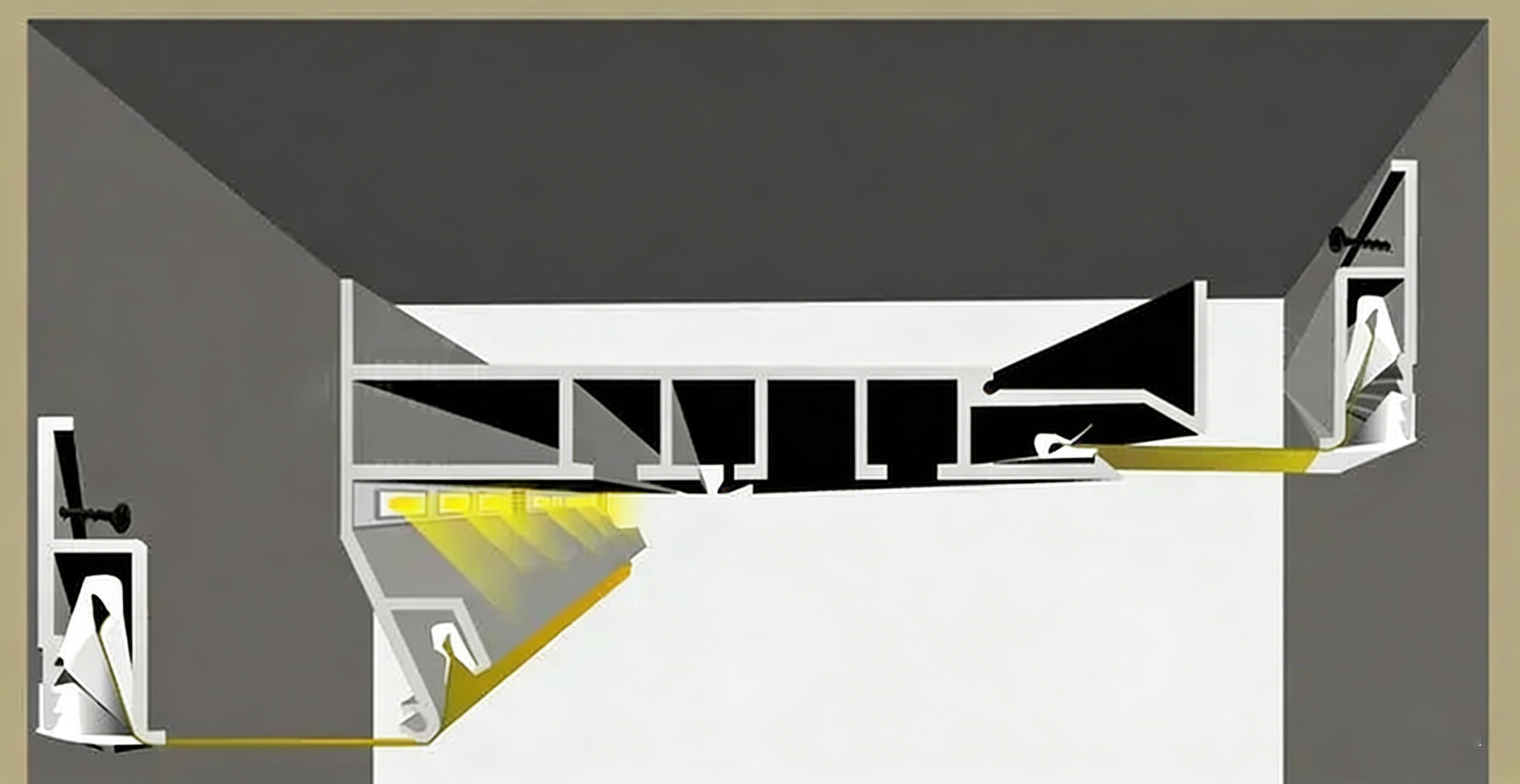

The recessed curtain track can create a suspended design: the track is completely embedded in the ceiling groove or customized structure, and the curtain seems to hang directly from the top, creating a minimalist and modern high-end beauty.
Working principle of hidden curtain track system
The core principle of hidden curtain track is the same as that of ordinary track, which achieves curtain opening and closing through track and pulley. The difference is that it is completely embedded in the ceiling groove or suspended ceiling.
- Hidden installation design: The track is completely hidden on the top, only revealing the hanging curtains, creating a minimalist visual experience.
- Paired with high-quality sliding track: both manual and electric are available, with smooth and silent pulling.
- Support customized size and curvature: suitable for special window types such as curved and angled.
- Multiple specifications: Available in single track (single-layer curtain) or double track (gauze curtain+fabric curtain), compatible with all fabrics from lightweight gauze curtains to thick blackout curtains, balancing aesthetics and practicality.
Why choose hidden curtain tracks?1. Increase the sense of spaceThe hidden curtain track is embedded in the ceiling, and the top of the curtain seamlessly connects with the top surface, forming a continuous vertical line that visually "extends" the wall and raises the height of high-rise buildings, making small apartments and low floors appear spacious and tall. Especially suitable for french window, large windows, curtains from the top down to the ground, clean.
2. Stronger load-bearing capacityThe hidden curtain track disperses the load through multi-point fixation, greatly improving stability. Whether it is thick blackout curtains, double-layer lining curtains, or curtains that frequently open and close in hotels and commercial spaces, they can be pulled smoothly, are not easily deformed or drooped, and remain smooth and durable for long-term use.
3. Flexible adaptation to various shapesThe recessed ceiling curtain track supports bending and splicing, easily adapting to complex window types such as convex windows, corner windows, curved windows, and full glass walls. It can achieve multiple installation methods such as single track, double track, folding, and overlapping, perfectly adapting to various types of layouts and space requirements.
How to install recessed curtain rails?
The installation of embedded curtain tracks requires selecting a solution based on the ceiling structure, budget, and construction conditions. There are two common solutions that are suitable for different decoration scenarios.

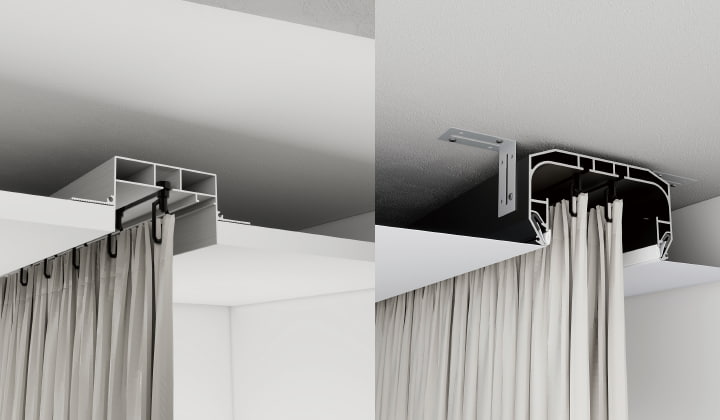

1. Recessed ceiling groove (classic invisible solution)
Accurate slotting is required near the window on the ceiling to form a narrow groove, with the track fully embedded in the groove, flush with the top surface, and visually almost seamless.
Preliminary evaluation: Confirm that the ceiling is made of gypsum board/solid wall, with sufficient load-bearing keel to avoid loosening in the later stage.
Precise slotting: slotting according to the size of the track, with a reserved width of 12-15cm (to accommodate the stacking of the track and curtains), a depth of ≥ 5cm, ensuring that the track is flush with the top surface.
Fixed track: Insert the track into the groove and fix it to the keel with self tapping screws to ensure firmness and no shaking;
Install curtains: Hang the pulleys/hooks, fix the curtains on the track, and open and close smoothly without jamming.
Practical reminder:
- Adequate space should be reserved for the width of the groove to facilitate the folding, storage, and later maintenance of the curtains.
- The edge of the track needs to be trimmed to avoid cracking.
- The downlight should be kept at a distance of more than 30cm from the groove to prevent uneven light and shadow.
2. Ceiling integrated installation (preferred for renovation)
Suitable for whole house ceiling or partial lowered ceiling design, it is a common solution for renovation projects to hide tracks through sunken ceilings around the perimeter, while also considering storage, wiring, and shading.
Structural reinforcement: Reserve reinforcement keel on the inner side of the ceiling as a load-bearing foundation for the track.
Track fixing: fix the track on the reinforced keel and hide it in the gap between the ceiling and the wall.
Ceiling closing: Narrow the edge of the ceiling to block the track and achieve an invisible effect.
Additional advantages: The ceiling can hide wires, lighting fixtures, and air conditioning pipelines, making it clean and beautiful.
Practical reminder:
- The ceiling height should be ≥ 10cm, with reserved space for stacking curtains.
- The track must be fixed on the solid keel to avoid sagging in the later stage.
Choose the appropriate hidden recessed curtain track for your space
1、 According to the number of track layers: single track vs double track
Monorail concealed curtain track: suitable for spaces that only require a single layer of curtains. It can be made of lightweight gauze curtains to create transparency, or basic shading can be achieved with blackout curtains. The structure is simple, the cost is lower, and it is suitable for bedrooms and leisure areas with soft lighting.
Double hidden curtain track: it is the best choice for living room, master bedroom, french window and other spaces with strong lighting, taking into account the lighting and dual privacy needs.
2、 By driving mode: manual/electric
Manual track: simple structure, durable and reliable, convenient daily opening and closing, suitable for ordinary small and medium-sized apartments, low windows, and is the first choice for cost-effectiveness.
Electric concealed track: suitable for large-span french window, high-rise or inaccessible installation areas, one button remote control opening and closing, uniform tension, reduce the wear of curtain top. Suitable for high-end residences, hotels, and large commercial spaces.
3、 According to hardware quality: silent and smooth
High quality slides are the key to smooth and durable tracks, and it is necessary to choose styles with strong load-bearing capacity and wear resistance. Compared to traditional pole type hanging rings, the hidden track is paired with high-quality sliding rails, which can open and close quietly without noise, making daily use more comfortable, especially suitable for quiet spaces such as bedrooms and study rooms.
4、 Paired with LED light strips: Upgraded atmosphere
The hidden curtain track can be embedded with LED light strips, installed along the inner side of the track, with soft and diffuse light, no glare, and no glare. During the day, the track is invisible, while at night it lights up the atmosphere. It can outline the window shape, enhance the sense of depth in the space, and create a warm and luxurious atmosphere. It is suitable for living rooms, bedrooms, and bay windows, making it easy to create a minimalist and luxurious style.
5、 By application scenario: precise matching of space
Residential (living room/bedroom/dining room): Priority is given to dual tracks, paired with LED light strips to balance shading, privacy, and atmosphere.
Convex/irregular window: Customized curved track that fits the curvature of the window, opening and closing smoothly without jamming.
Hotels/high-end venues: Silent electric tracks that balance durability and sophistication.
Commercial office: stable manual/electric tracks, clean and professional, suitable for large areas of glass.
Why choose SmartGlow Lighting to create exclusive recessed curtain track system
SmartGlow Lighting specializes in customized services for hidde recessed ceiling curtain track. We can tailor high-quality track solutions to suit various scenarios based on your space needs, window characteristics, and decoration styles. Whether it's customized curved tracks for regular straight windows, convex/irregular windows, or convenient and efficient electric opening and closing systems, we rely on our professional design experience to provide high-quality products that meet the highest industry standards.
Our embedded curtain rail provides you with a wide range of choices:
- The material is made of stable quality aluminum, which is corrosion-resistant, has strong load-bearing capacity, is not easily deformed, and remains stable and smooth for long-term use.
- The color can be selected as needed from classic black or minimalist white, easily adapting to various decoration styles such as modern, minimalist, and light luxury, achieving seamless integration with the space.
- The track specifications support flexible selection of single track and double track. Single track is compatible with single-layer curtains, while double track can be paired with both gauze curtains and cloth curtains to meet the multiple needs of shading, privacy, and lighting.
With years of deep industry cultivation and rich project implementation experience, SmartGlow Lighting has become a trusted high-end embedded curtain rail partner in the fields of home decoration and workwear. Whether you are customizing tracks for regular windows, bay windows, or irregular windows, SmartGlow Lighting can accurately match your needs and provide one-stop customization services.
Do you want to upgrade your space style with high-quality recessed curtain tracks system? Consult SmartGlow Lighting now to customize exclusive track solutions and unlock a new experience of simple, high-end, practical and durable curtain hanging!
