Modern Open Kitchen - Led Recessed Lighting

This case study showcases the perfect combination of a stretched ceiling and embedded downlights in a modern open kitchen. It features anti glare, adjustable beam angle LED recessed downlight with universal joints, and is compatible with stretched fabric/PVC ceilings. By fixing color temperature and precise light control, it creates a minimalist space without a main light, balancing practicality and high-end texture.

Case Details

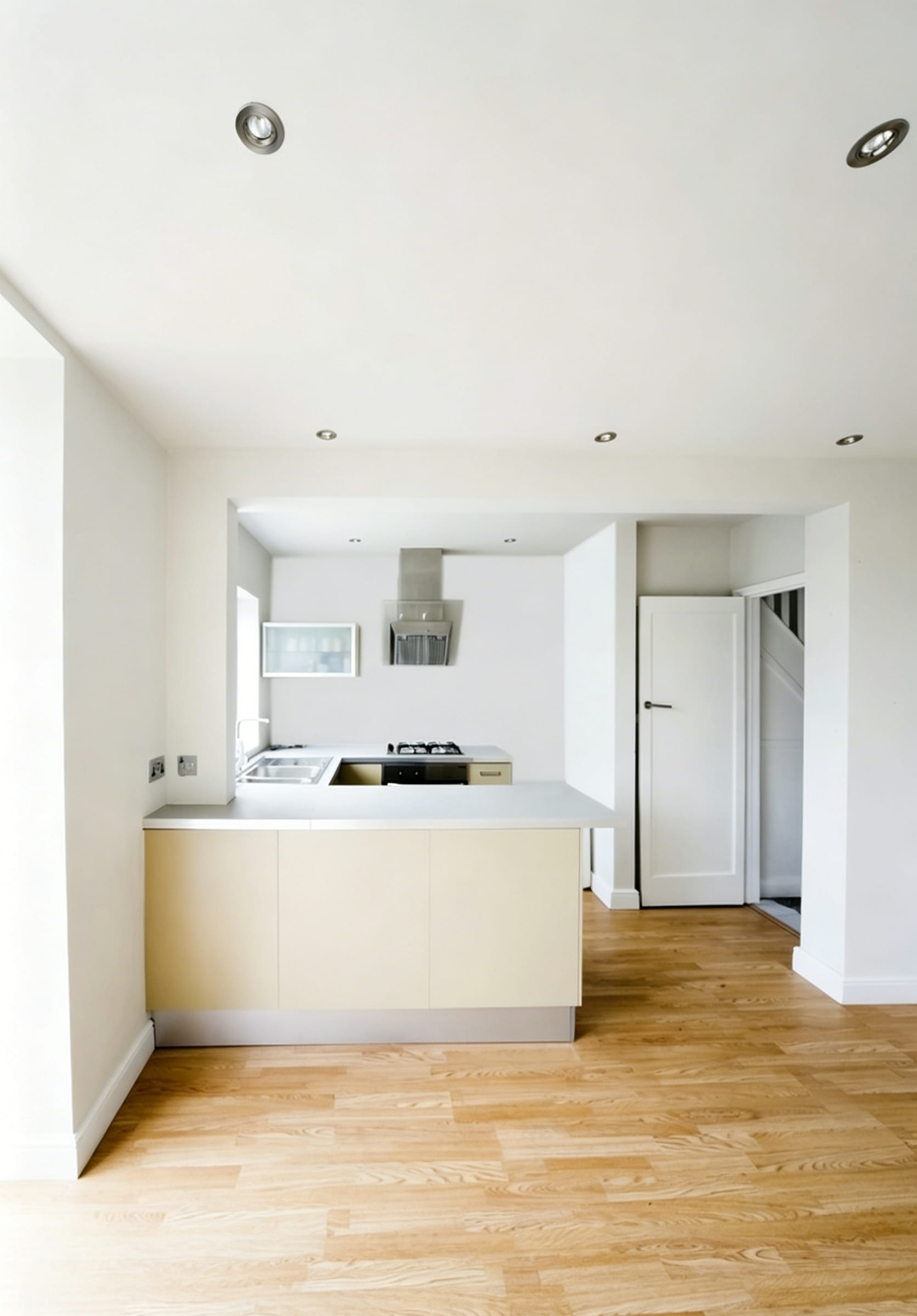

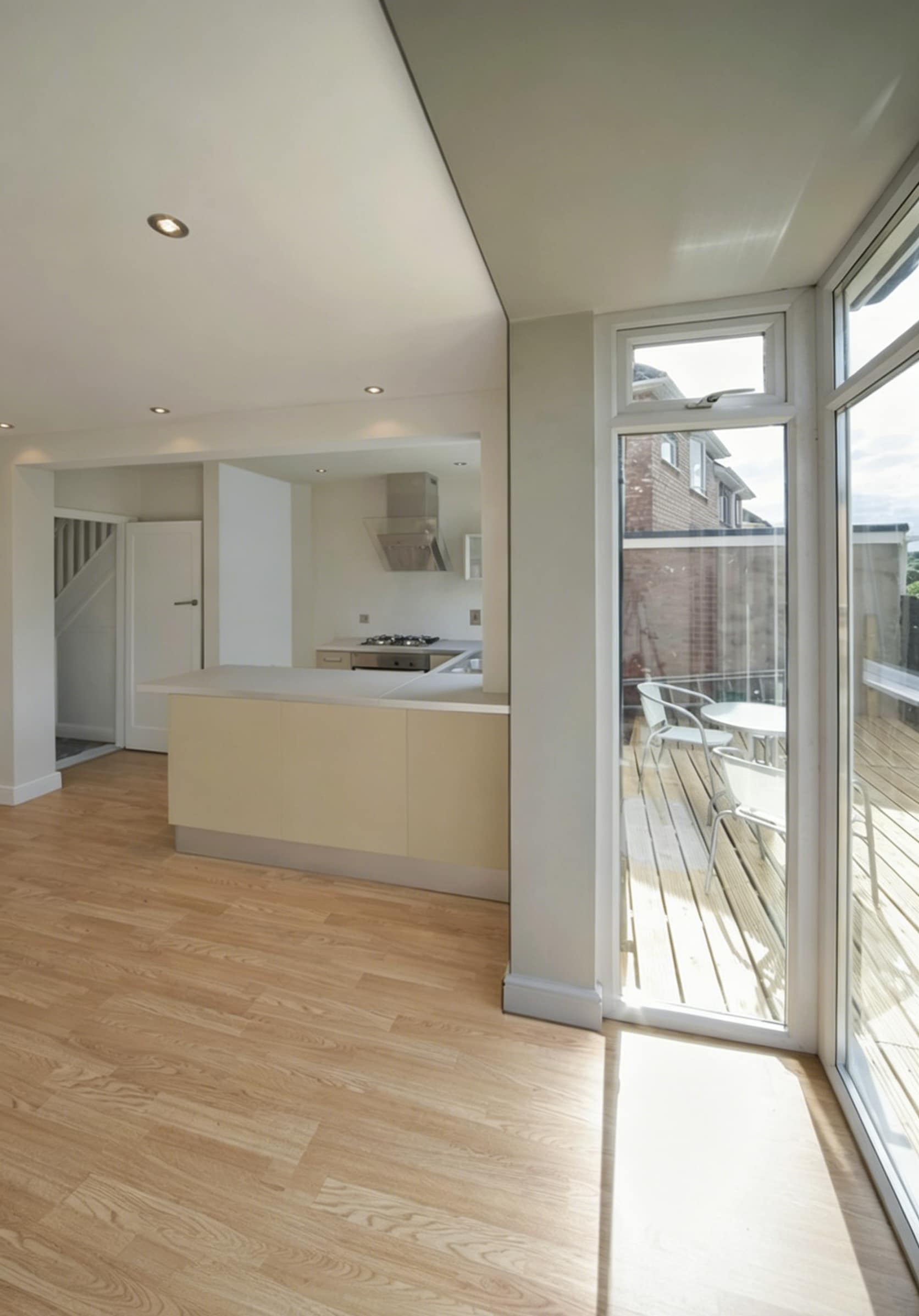

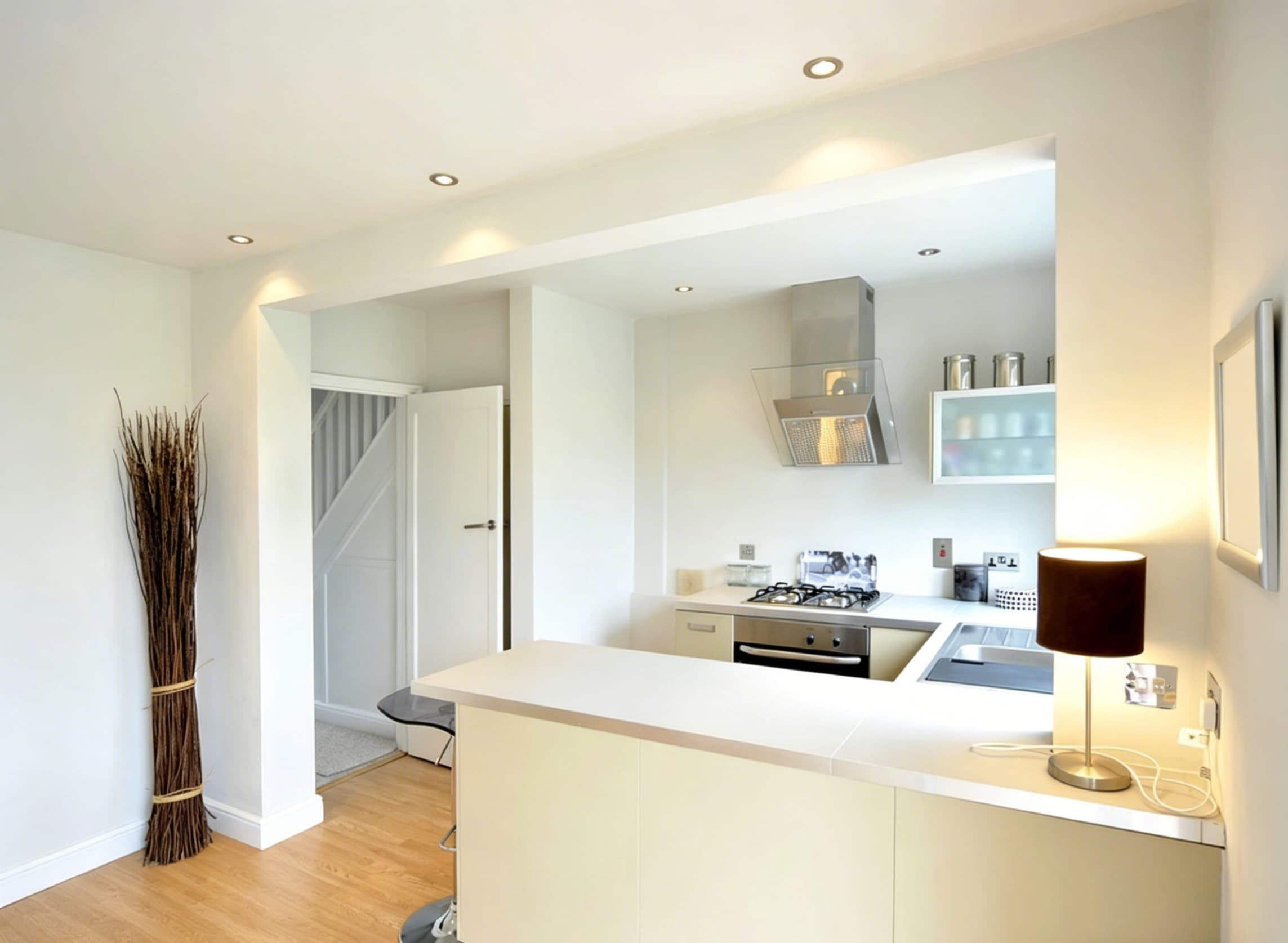

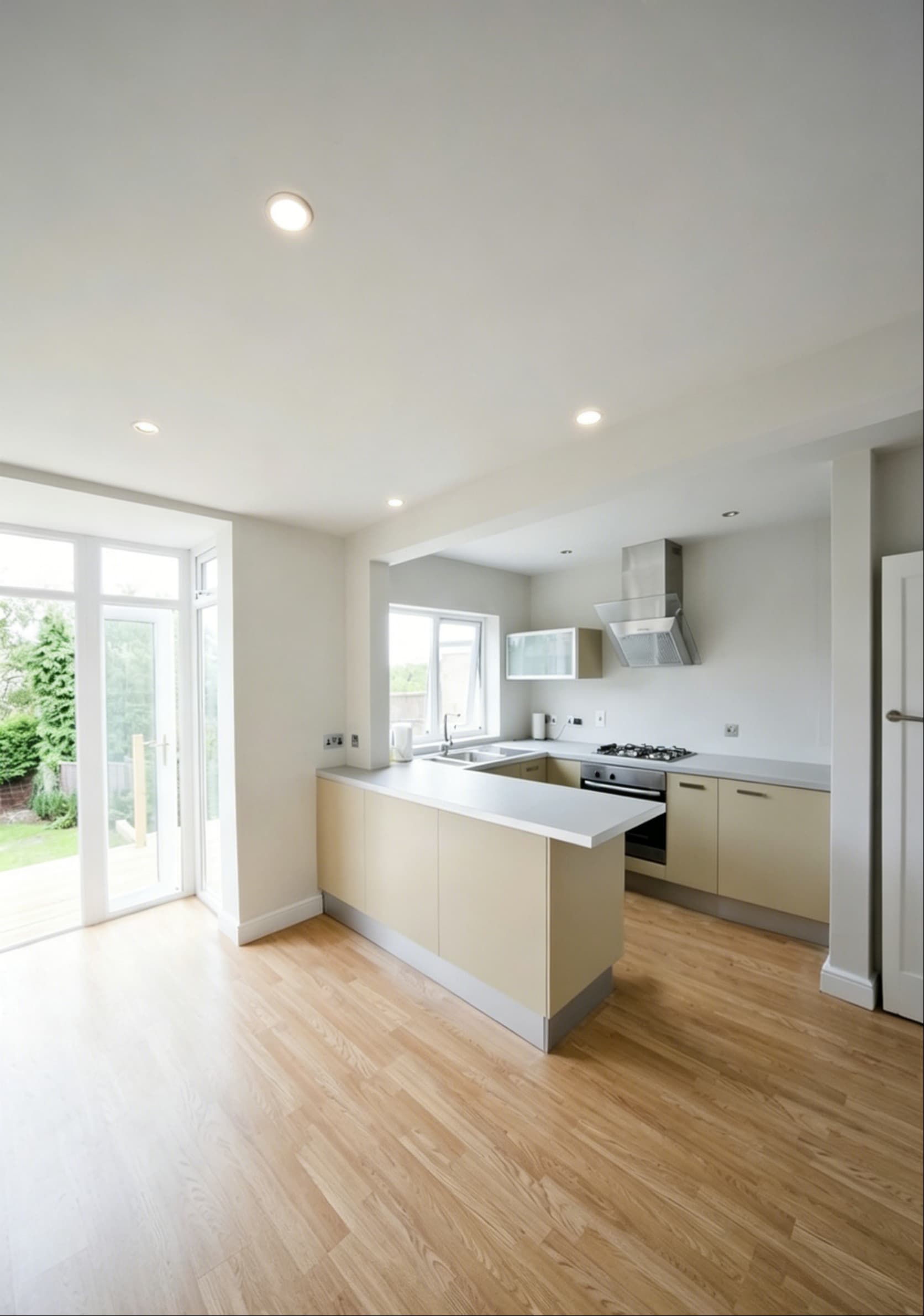

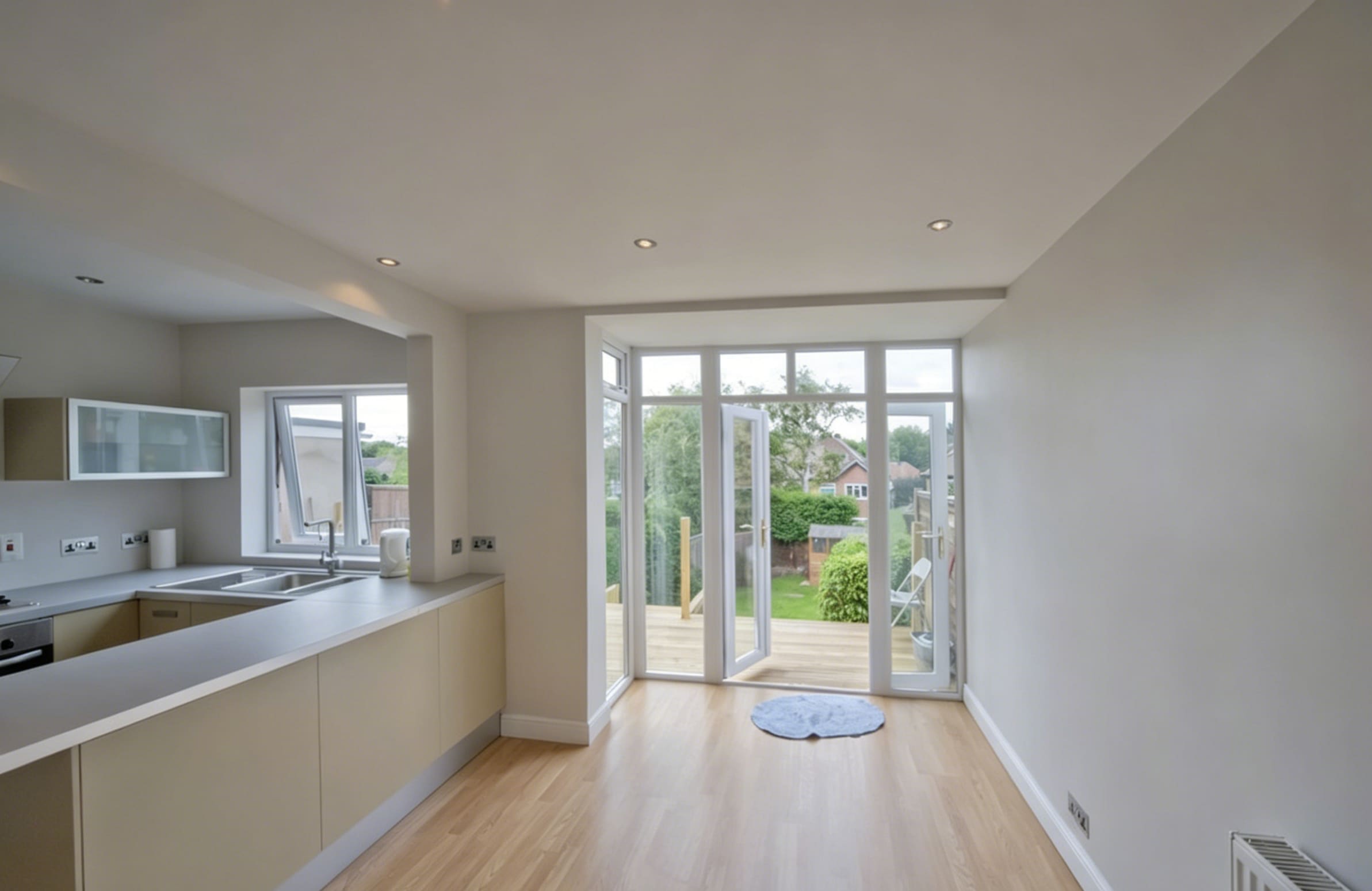

This space features high ceilings, transparent and bright large windows, and a light colored stretch fabric ceiling. Traditional single lighting often fails to balance the delicate tasks of the kitchen operation area with the warm atmosphere of the dining area, and can easily disrupt the cleanliness of the minimalist ceiling. In this case, the perfect combination of high color rendering recessed downlights and stretched ceilings, combined with precise beam control, creates a high-end immersive experience of "seeing light but not seeing light", which is the ideal solution for modern minimalist style open kitchen/dining area lighting.

Lamp selection
Basic floodlighting (anti glare downlight)
The entire roof of the house is equipped with anti glare recessed downlights, uniformly configured with 4000K neutral white light, single lamp power of 10W, luminous flux of 800lm, CRI ≥ 90.
Lighting logic: According to the flow of the kitchen and dining area, downlights are evenly arranged on the ceiling, with a spacing controlled between 1.2m-1.4m. The light is diffused through the anti glare lens to emit soft diffused light, illuminating the entire open space as a whole, avoiding dark corners in the kitchen, and making the space appear transparent and bright.

Key task lighting (universal joint adjustable downlight)
Install adjustable recessed downlights with universal joints in the kitchen island console and cutting area.
Parameters: 3000K warm white light, power 8W, adjustable beam angle of 15 ° -30 °.
Function: Utilize its 360 ° rotation and angle adjustment function to accurately project the beam onto the central island and above the tabletop. Provide centralized and shadowless key lighting to meet the needs of delicate operations such as cutting vegetables, cooking, and reading recipes, while not interfering with the surrounding area's lighting.

Stretch ceiling adaptation and recessed downlight installation details
Seamless fit: All lighting fixtures are installed using spring snap fasteners and recessed in light colored stretch fabric ceilings. The edge of the lamp body is flush with the ceiling, and the gap is controlled within ≤ 1mm, maintaining the visual core of a flat and minimalist top surface.
Strong adaptability: For the stretched ceiling material, the lamp adopts a soft rubber sealing frame to avoid scratching the film surface during installation and ensure airtightness to prevent oil fumes from penetrating into the ceiling interlayer.
Ultra thin design: The measured thickness of the lamp body is only 42mm, perfectly adapting to the ceiling height of ≥ 90mm in this space. All wiring is hidden inside the ceiling cavity to ensure a clean appearance.

Scene atmosphere switching
The entire series of lighting fixtures in this case adopts a fixed color temperature design. By adjusting the angle of the universal joint beam, different scene light effects can be converted without worrying about visual confusion caused by color temperature mismatch.

Cooking mode
The whole house downlight maintains a fixed neutral white light at 4000K, with full brightness on.
The universal joint recessed light in the Nakajima/cutting area is vertically adjusted downwards to a beam angle of 15 ° -24 °, forming high-density key lighting.
The precise coverage of the light on the control panel ensures no dead corners or shadows, accurately reproducing the color of ingredients and ensuring safe and efficient cooking processes. It is the best guarantee for fine kitchen operations.

Dining/Leisure Mode
Adjust the brightness of the entire homeowner's lighting to 50% and maintain a basic light of 4000K.
Rotate the universal joint recessed light towards the dining table area and adjust the beam angle to 36 °.
Soft light is focused downwards to create a warm and comfortable dining atmosphere. The greenery outside the window echoes the warm indoor light, instantly switching the space from "efficient mode" to "enjoyment mode".

Late night atmosphere
The whole house downlights are turned off, only the induction downlights in the middle island area are retained, and the beam angle is adjusted to 60 ° to expand the scattering range. The dim light does not interfere with sleep, making it suitable for sitting or cleaning tasks at night. It not only meets the needs of nighttime movement, but also provides ultimate protection for vision.

User's genuine evaluation
This embedded lighting system really elevates the level of the kitchen! My home decoration is a stretched ceiling. I was worried that installing the lights would damage the film surface, but after installation, it fits perfectly without any abruptness. The universal joint tube light is aimed at the middle island, and when cutting vegetables, it can be seen very clearly. The color rendering of the light is very good, and the dishes look fresher. Friends who come to visit praise this lighting design for being too practical.

kitchen recessed light

Why choose SmartGlow Lighting?
Our recessed downlight system is tailor-made for stretch fabric/PVC ceilings and gypsum ceilings, providing comprehensive solutions to user pain points from easy installation, safe use to cost control. Paired with minimalist design, it perfectly meets the spatial needs of modern open kitchens and other spaces.

Accurate adaptation: Comes with 75mm standardized perforation accessories and soft rubber edging to avoid scratching the film surface, saving $50-150 per repair cost and zero installation loss.
Ultra thin and durable: The 42mm ultra-thin lamp body is suitable for ceilings of ≥ 80mm, without the need to modify the cavity, reducing $80- $200 in secondary renovation costs, and is durable.
No additional investment required: Comes with insulated flame-retardant wire and IP44 waterproof terminals, saving $20- $60 in accessory costs, suitable for humid environments, and meets US safety standards.
Universal joint adjustment: 360 ° rotation, ± 30 ° angle adjustment, without damaging the membrane surface, saving $100- $300 in post repair costs.
High cost-effectiveness: The entire 15-20 square meter space is only $180- $350, saving 30% of the cost compared to similar products. The service life is up to 50000 hours, making it more cost-effective in the long run.
