A Full Guide of Curved Magnetic Track Lighting System

By SmartGlow April 9th, 2026

In this blog post, you will learn about the arc-shaped magnetic track lighting system and how to make lighting design as free as drawing lines, easily creating various light and shadow effects such as arcs, rings, and S-shapes, while balancing minimalist aesthetics, lighting efficiency, and future scalability.

catalogue
What is a curved magnetic track lighting system
Characteristics of curved magnetic track rail
The advantages of curved magnetic tracks
Types and installation methods of curved magnetic track systems
Installation guide for curved magnetic track lights
Lamp selection for curved magnetic track lights
Application of curved magnetic track lighting
Smart curved magnetic track lighting
Curved Magnetic Track Light: Maintenance, Safety, and Service Life Guide

Perhaps many people think that track lights can only be straight and rigid lines, with a thin and boring design sense. But the emergence of the curved magnetic track light system completely overturned this inherent impression.
Nowadays, more and more designers and homeowners are choosing curved, circular, and flexible magnetic track lights to truly match the shape of the building. Whether it's wrapping around columns, fitting arches, or adapting to uniquely shaped ceilings, low-voltage magnetic tracks can be easily achieved. The lighting fixtures can be quickly disassembled and assembled without the need for tools, and can be arranged in just a few seconds, making it simple and efficient.
If you are pursuing lighting adaptation design rather than designing to accommodate lighting, you may want to continue reading.

What is a curved magnetic track lighting system

The curved magnetic track lighting belongs to the 48V low-voltage modular lighting system. The track can be made into curved, circular, curved, and even S-shaped shapes, and the fixture is fixed and powered by magnetic force. While achieving customized curved lighting design, it also retains the convenience of plug and play of track lights.

Core components
A complete curved magnetic track system, mainly composed of three core components:

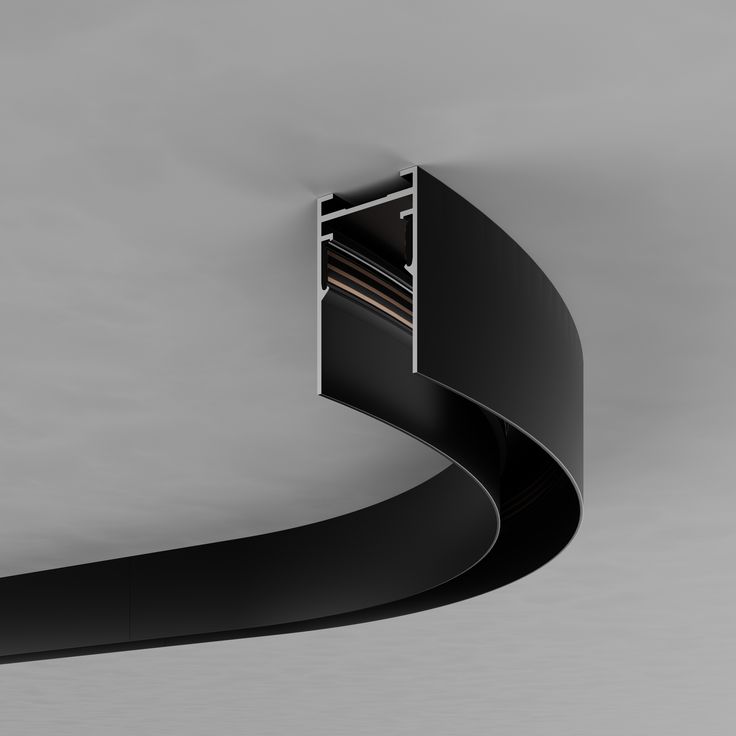

Curved magnetic track body
24V/48V low-voltage bendable magnetic track aluminum profile, available in two installation methods: embedded or surface mounted. It can be bent into circular, curved, wavy, and any customized curvature curve according to design requirements.

Magnetic LED lighting module
There are various types of modules that can be freely matched: magnetic track adjustable spotlight is suitable for key lighting and task lighting. The floodlight linear magnetic light can provide uniform and soft ambient light. There are also magnetic pendant lights, wall washers, etc., which can be used for lighting in characteristic areas of the space. All lighting fixtures come with magnetic interfaces that can be directly attached to the track for use.

Low voltage drive and power supply accessories
Equipped with a dedicated 24V/48V DC low-voltage driver, matched with corresponding power lines and adapter accessories, to achieve safe and stable power transmission between the driver and the track.

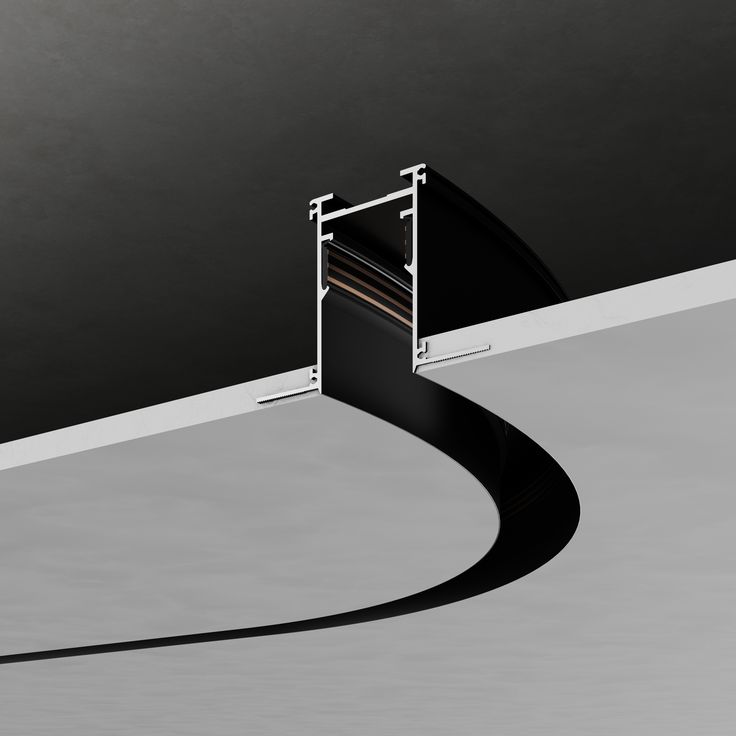

recessed curved magnetic track

Characteristics of curved magnetic track rail

Compared to ordinary straight tracks and traditional track lights, curved magnetic tracks have distinct characteristics.

It can no longer only walk in straight lines, but can naturally extend along curved ceilings, columns, and architectural shapes.
The lighting fixtures are connected by magnetic attraction, eliminating the need for mechanical buckles and fixing accessories.
The entire system is designed for low voltage, which is safer than conventional commercial power tracks and has a thinner appearance.
The layout can create circular, circular, and smooth curves, no longer limited to straight lines and grid arrangements.

The core advantage comes from bendable and circular customization technology
Track profiles can be lightly bent on site, or customized with curved tracks according to specified radii in the factory. There are also prefabricated circular, curved, and circular lamp bodies to choose from, and the installation methods also cover embedded and exposed installation.

Therefore, whether it is the compact small curves required for arches, partitions, curved walls, or the soft large curves that stretch in large spaces such as hotel lobbies and exhibition halls, they can all be easily achieved.

The advantages of curved magnetic tracks

The curved magnetic track lighting system not only has higher design freedom than traditional linear track lights, but also is very easy to install, with multiple outstanding advantages in practical use.

Flexible design
In terms of design, it completely breaks the constraints of linear layout. It can not only extend along curved ceilings and partitions, but also create smooth lines such as circles, rings, ellipses, and S-shapes. It can also be arranged around columns, niches, and characteristic walls. The flexible track can also be customized with exclusive curvature, perfectly adapting to various spatial shapes.

Tool free disassembly and assembly
The user experience of LED lighting fixtures is also very convenient. All lighting modules are designed with magnetic suction, which can be disassembled and assembled by hand without the need for tools. The spotlights can also slide and adjust freely on the track. Even if you need to re plan the lighting according to the layout of furniture and exhibits, you don't need to seek help from electricians. For shops and restaurants, it can easily and quickly update the visual effect of the space.

Low voltage safety (24V/48V)
In terms of safety performance, the curved magnetic track system operates at 24V/48V low voltage, providing more assurance during installation and daily maintenance. It is also more reassuring for lifting scenarios above crowds, and can easily connect with smart dimming devices. In densely populated public areas such as homes and shopping malls, it can significantly reduce electricity risks.

LED energy-saving and long-lasting
The Magnetic Track Light series adopts LED technology, which not only has high lumens, but also saves more electricity and has a longer service life, reducing the trouble of replacement in the later stage. At the same time, the light color is stable and the top surface heats up less, effectively reducing the overall operating costs of residential, hotel, and commercial spaces.

modern style
The exterior design focuses on a simple and modern style, with embedded tracks that can be flush with the ceiling. The exposed style is also slim and neat, and the black and white color scheme can adapt to most modern interior styles. It is used in spaces such as lobbies and living rooms, which can achieve lighting and highlight the beauty of the building itself.

In addition, the curved magnetic track allows for more precise lighting control, allowing for flexible adjustment of spotlight angles along the arc. Wall washers light can be used to surround and illuminate characteristic walls, while round LED magnetic lighting fixtures and linear modules can create rich light and shadow layers, effectively avoiding uneven brightness in curved ceilings and corridors. The lighting layout is perfectly integrated with the architectural style, and the lighting effect is more in line with practical needs.

Types and installation methods of curved magnetic track systems
Magnetic track rail type
Our curved magnetic track system focuses on two core track styles, which can accurately adapt to the design needs of different circular and curved ceilings, while balancing regular styling and customized size selection.

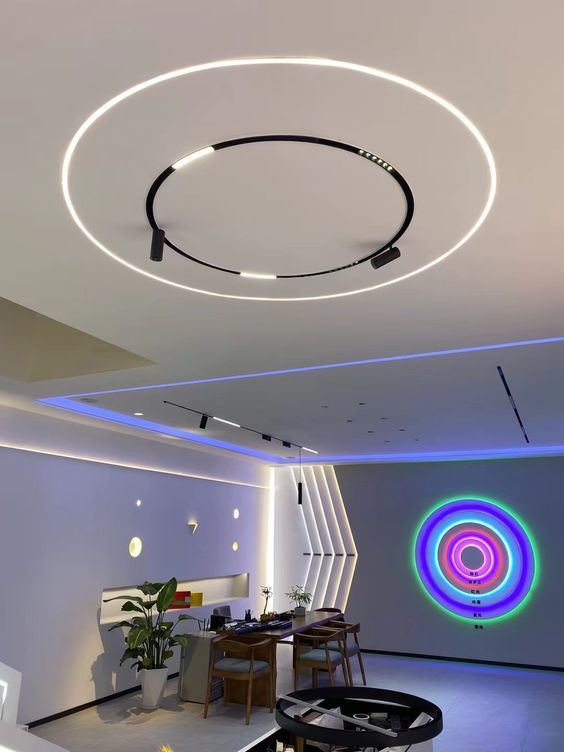

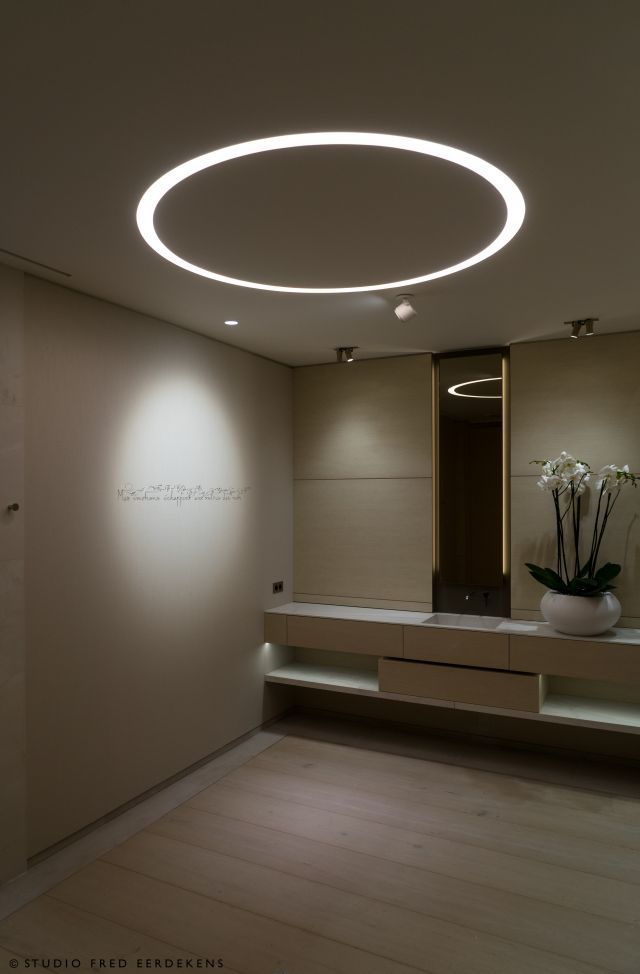

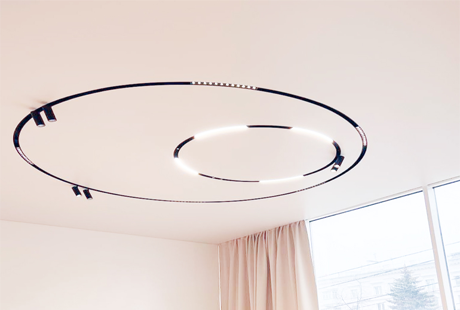

Full circular magnetic track
Specially designed for circular light and shadow, with simple and neat lines, it is suitable for use as a visual center for dining tables, lobbies, and characteristic ceilings. It easily replaces traditional chandeliers and creates a symmetrical and textured circular lighting effect.

Curved Magnetic Track

A Full Guide of Curved Magnetic Track Lighting System

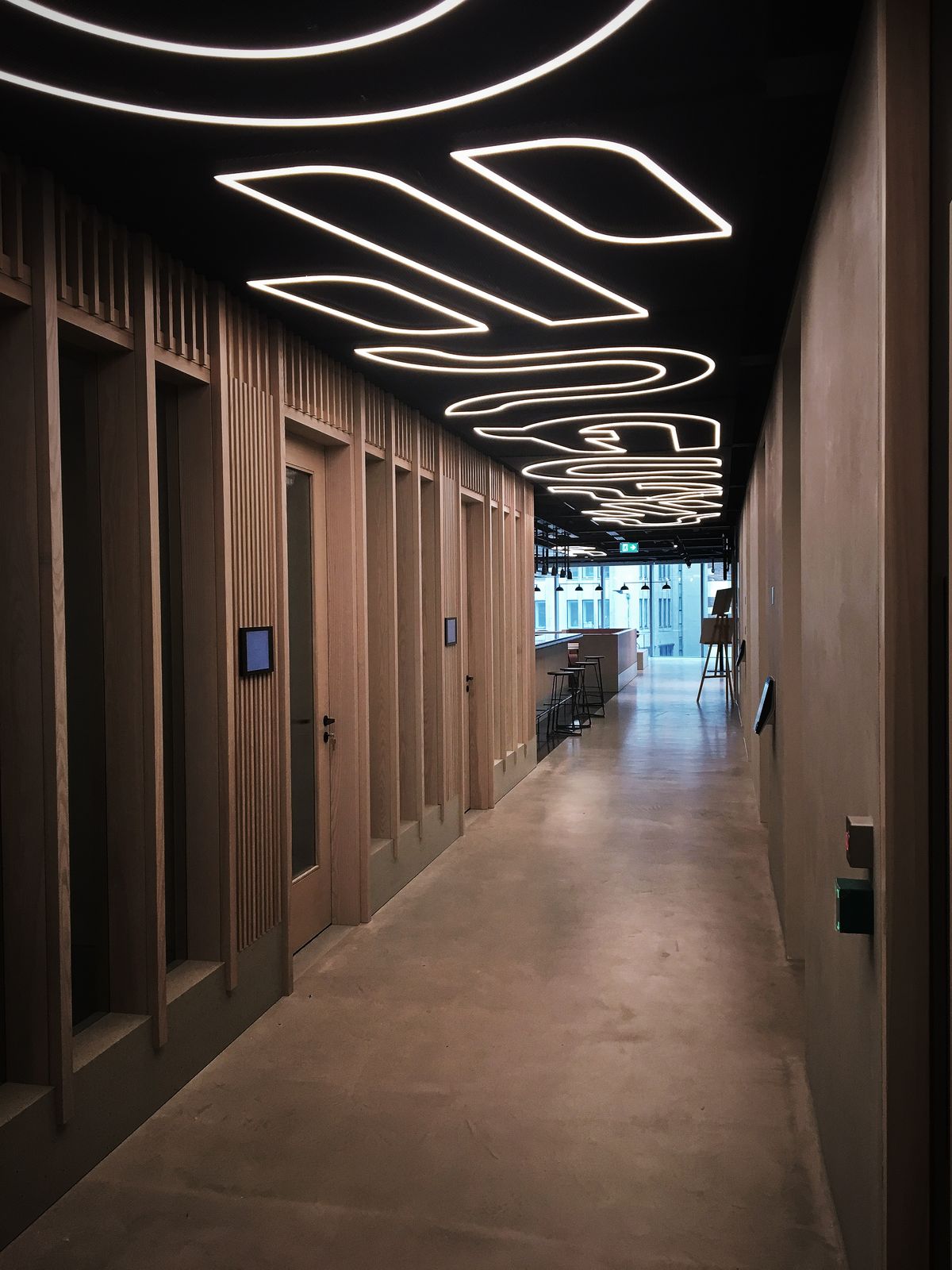

Stretch ceiling radius magnetic track
Specially designed for curved stretch ceilings, we offer four standard diameter specifications of 600mm, 900mm, 1200mm, and 2400mm, which can directly match different sizes of curved ceilings to meet the lighting layout needs of various spaces.

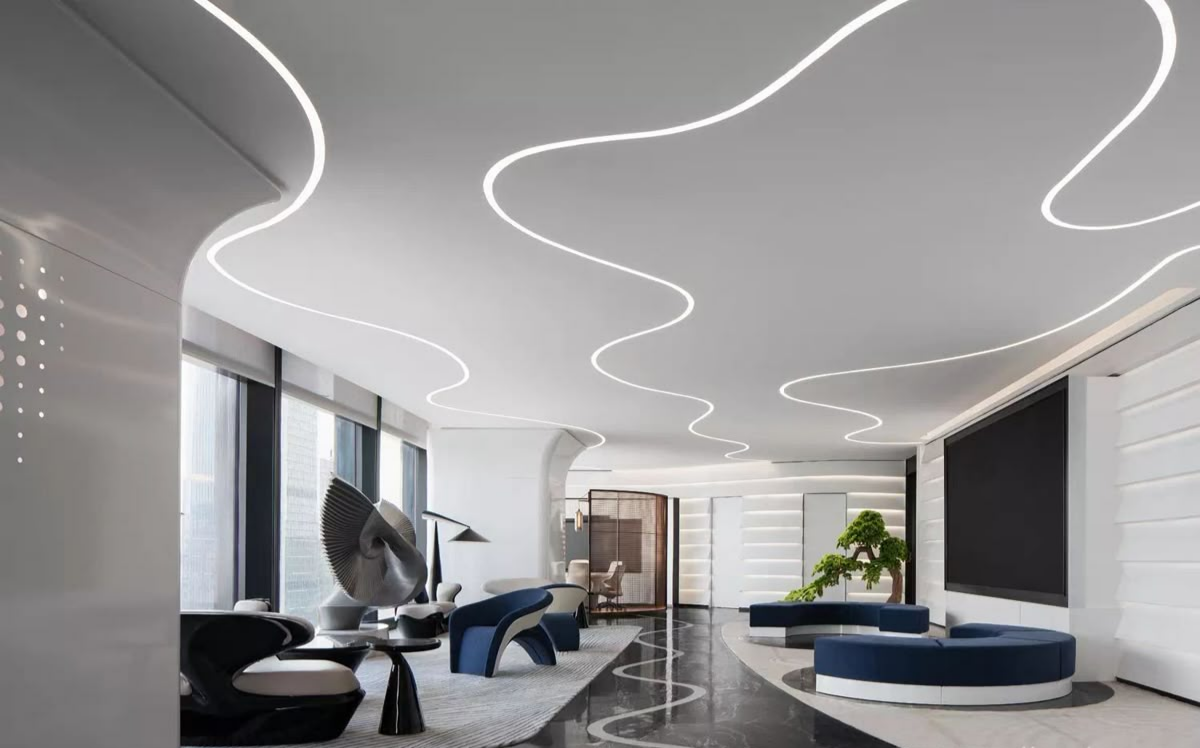

magnetic track rail

Installation method
The system supports three mainstream installation methods, which can be freely selected according to decoration scenarios, roof conditions, and aesthetic needs, and is suitable for various scenarios such as new house decoration and old house renovation.

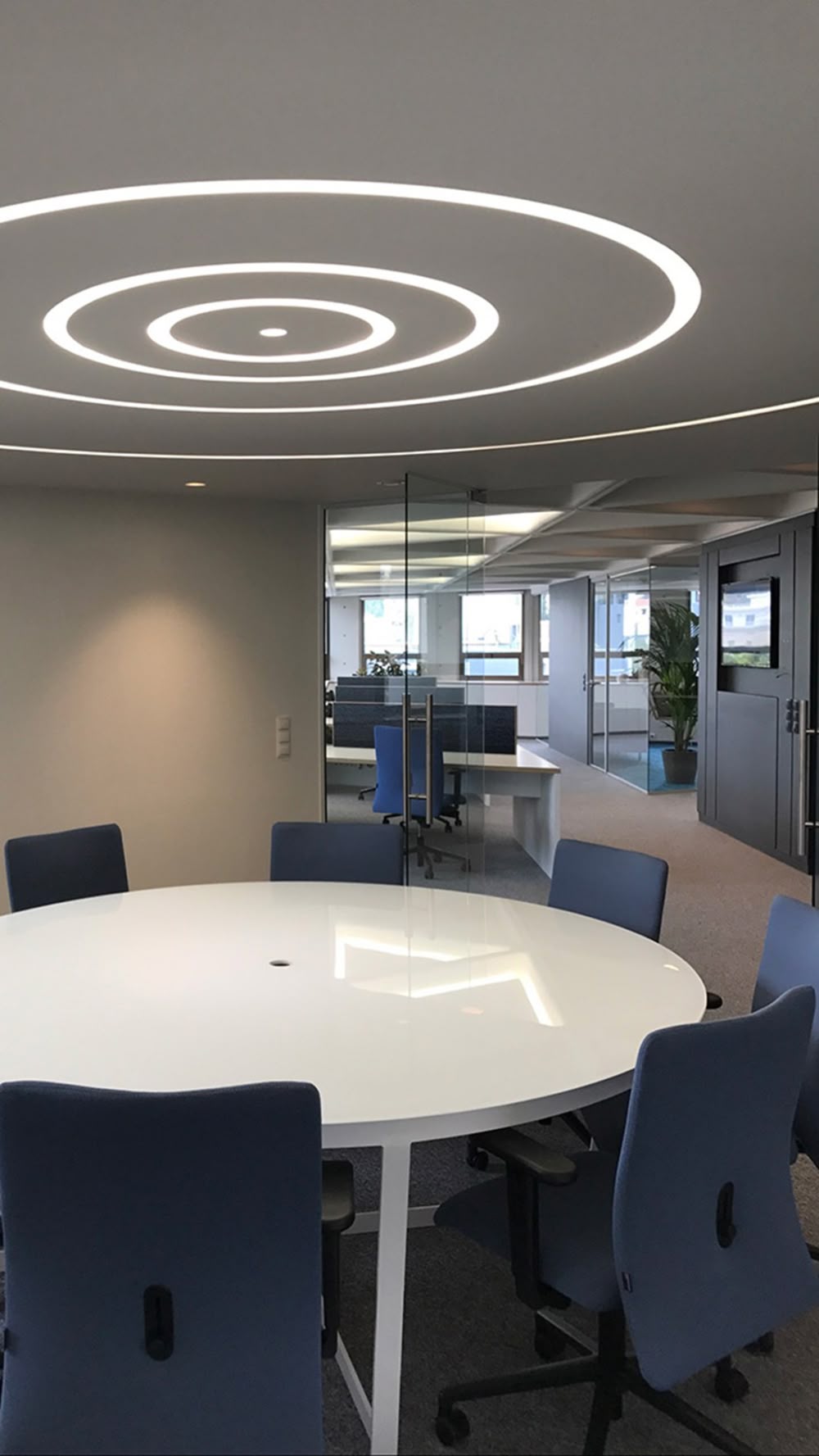

embedded installation
Embedding the track flush with the ceiling and walls to achieve an invisible and minimalist visual effect, without damaging the overall lines of the ceiling, suitable for high-end residential, boutique and other spaces that pursue a minimalist texture.

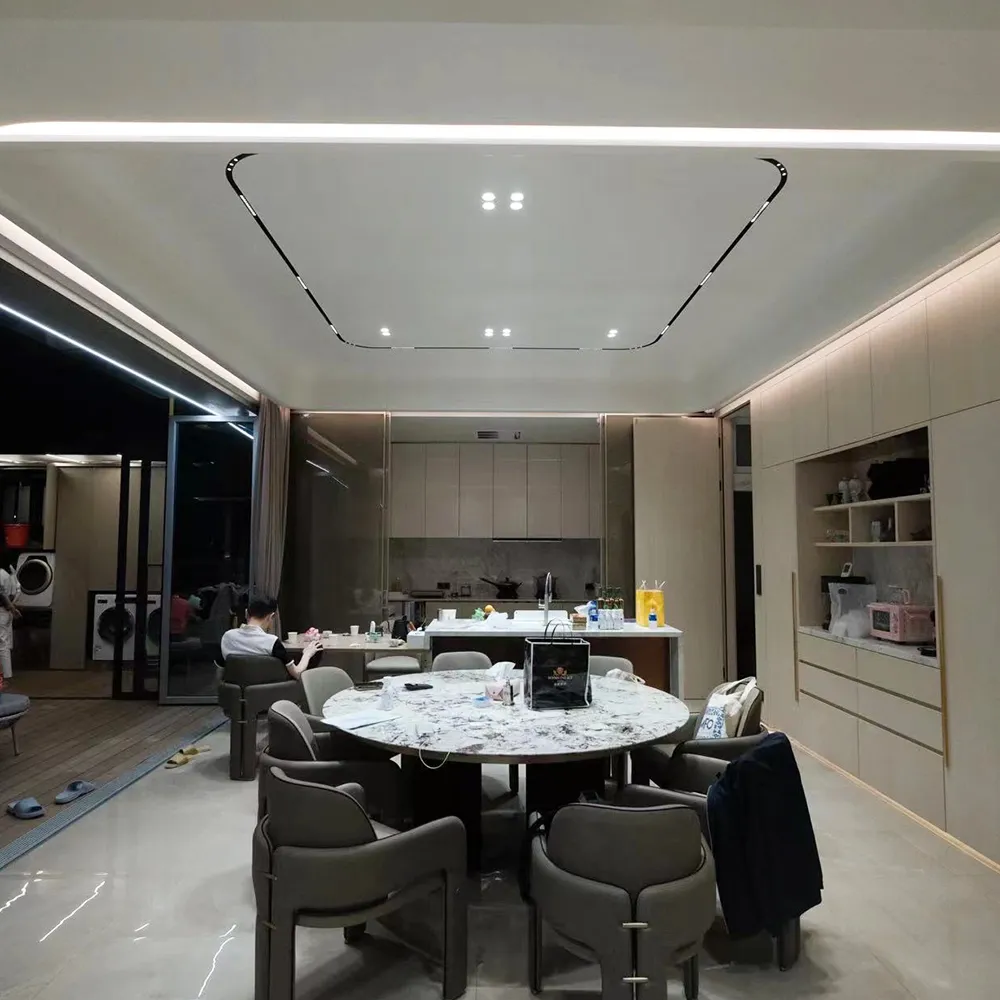

magnetic track lighting system

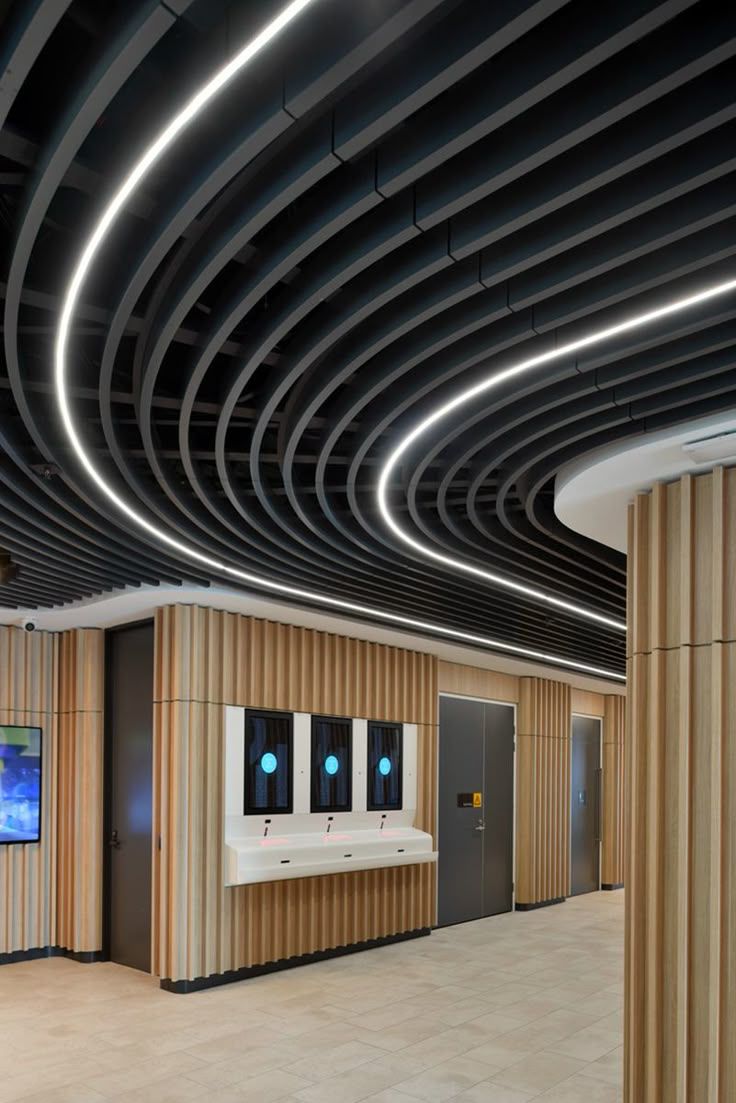

surface mount
No need to groove the top surface for renovation, it can be directly fixed and installed, with fast construction and strong flexibility for renovation. It is suitable for concrete ceilings, rental houses, and various renovation projects, and the simple appearance is not affected.

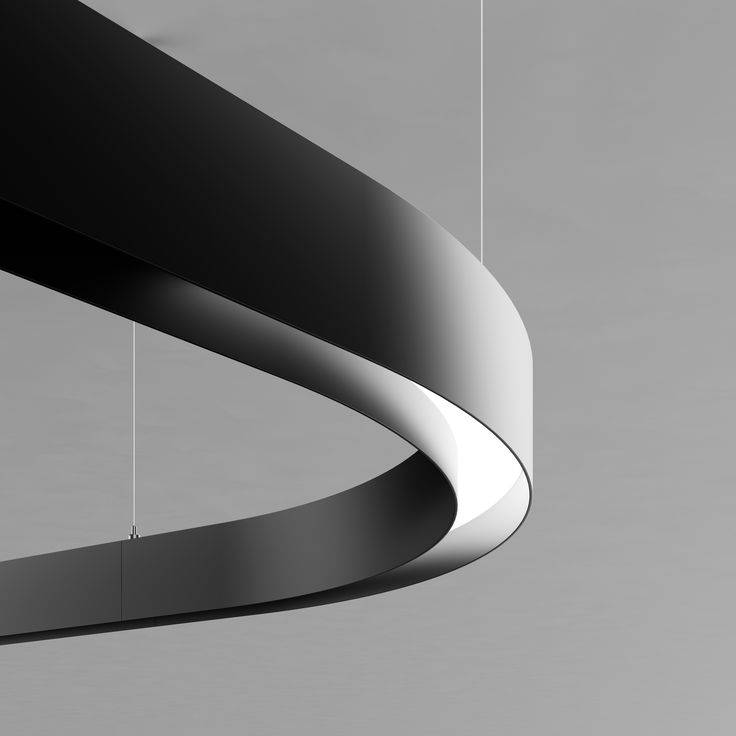

Curved Magnetic Track Lighting

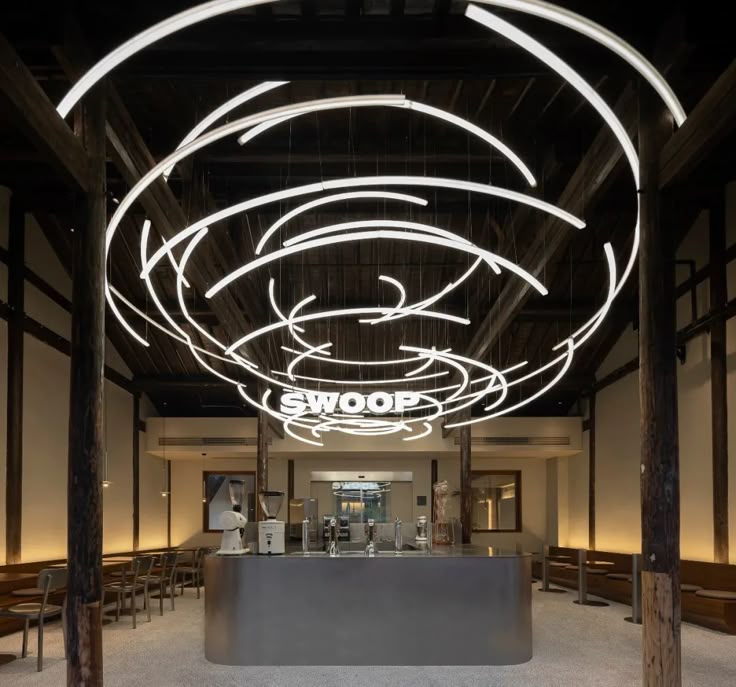

Lifting and installation
By hanging wires or suspension rods, it is suitable for spaces with high ceilings such as restaurants, office areas, and exhibition halls. It can make the lighting closer to the activity area and create a rich lighting atmosphere with lighting modules.

slim magnetic track light

Lamp selection for curved magnetic track lights

In the curved magnetic track lighting system, the track is more like the "skeleton" that supports the entire lighting layout. What truly makes the space full of vitality and personality are the magnetic light fixture modules that can be attached and freely moved at any time.
They can be easily disassembled, slid, and adjusted without the need for tools, allowing you to reorganize light and shadow at any time according to scene changes, firmly holding the initiative of lighting in your hands - this is also the core charm of magnetic track lights that distinguishes them from traditional lighting.

Fixture Type	Best For	Key Curve Advantage
Adjustable Magnetic Spotlight	Accent, task, product display, artwork	Precise aiming along arcs and S-curves
Linear Diffuser Magnetic Module	Ambient light, corridors, living spaces	Clean, continuous light emission along curves
Magnetic Pendant Module	Dining tables, bars, reception desks	Strong focal point on circular/arc tracks
Wall Washer Magnetic Accessory	Feature walls, galleries, retail walls	Vertical wall washing even on curved paths
Smart Ready Module (24V/48V)	Residential, office, hotel, retail	Dimming, tunable white, RGB/RGBW, scene control

Application of curved magnetic track lighting
Traditional linear track lights are always constrained by the straight lines of space, while curved magnetic track lighting systems can grow along the curves of buildings, making the light an extension of space rather than a rigid addition. In different scenarios, it can bloom with unique design value:

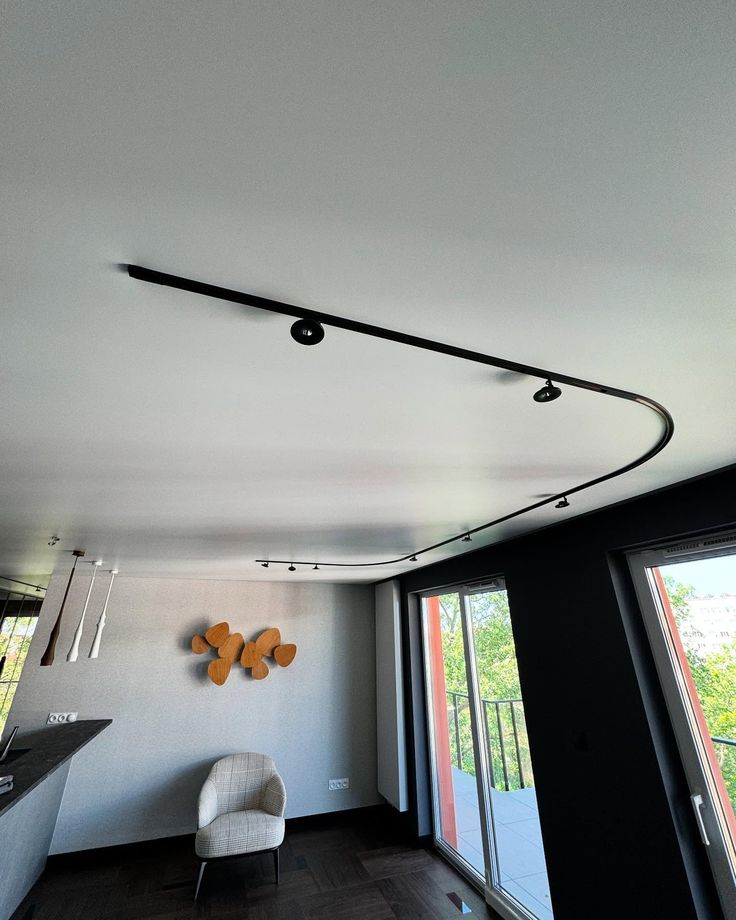

Residential space: living room, kitchen
In home scenes, curved magnetic track lights are the ideal choice for minimalism without clutter, allowing each functional area to have its own unique light and shadow rhythm:
Living room: Draw a soft curve or circular layout above the sofa area, use adjustable magnetic spotlights to focus on decorative paintings and artworks, and combine linear diffusion modules to create a warm ambient light, balancing atmosphere and practicality.
Kitchen: Install curved tracks along the island or bar counter, use spotlights to provide clear working lighting for the preparation area, and combine with magnetic pendant light modules to make the dining area more ceremonial.

stretch ceiling profiles

Suitable for special buildings: curved ceiling, suspended ceiling
If your space comes with curved ceilings, partitions, columns, or arches, curved magnetic track lights can perfectly amplify the beauty of these architectural details:
Curved ceiling: Embedded curved track light strips can be hidden in the ceiling to create a suspended halo effect; If slotting is not possible, the surface mounted magnetic curve track can also achieve minimalist visual extension with thin lines.

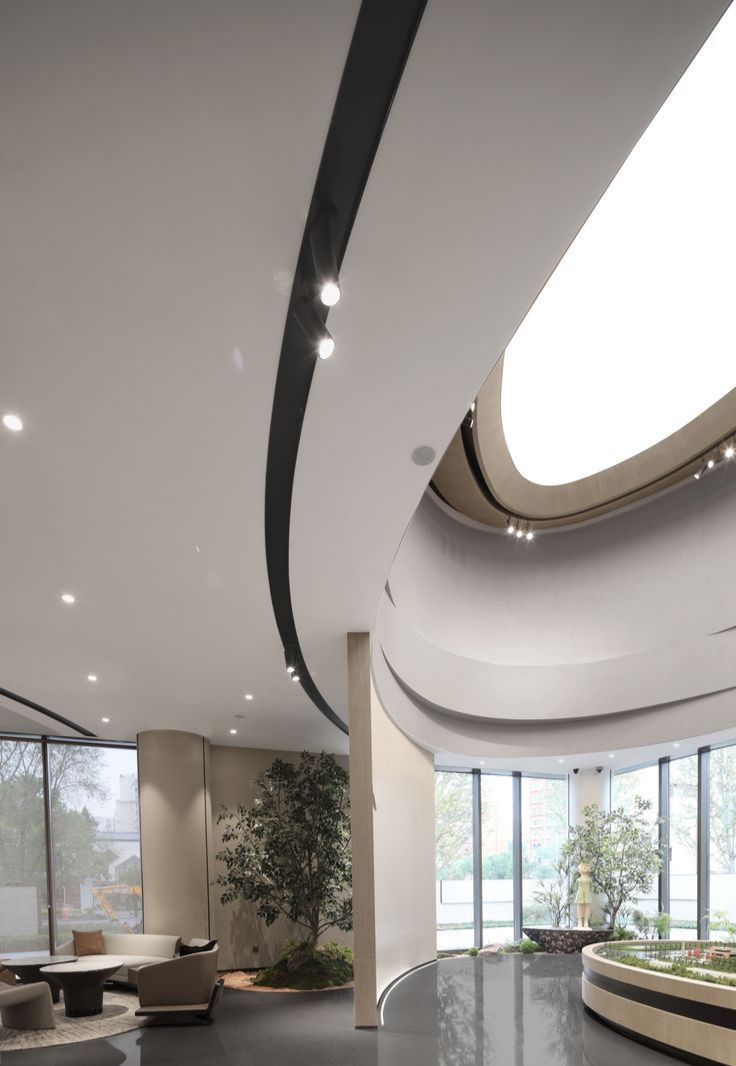

curved magnetic track

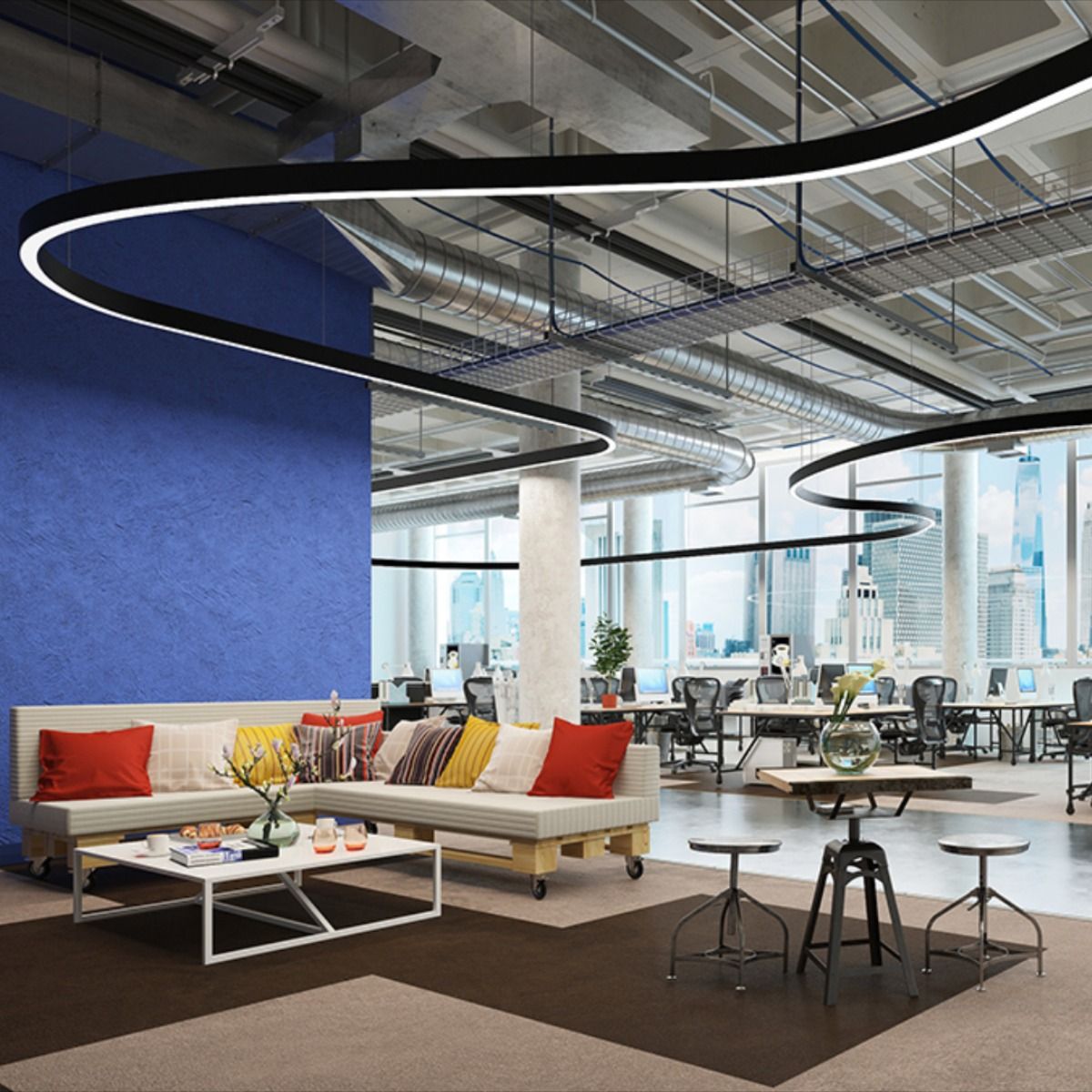

Office and Public Space: Defining Wallless Order with Curves
In modern offices, galleries, or halls, curved magnetic track lights can construct spatial structures using light and shadow without walls
Office: Define the collaboration area with a long arc, equipped with an intelligent dimming module, and switch between focus mode, meeting mode, and other scenarios with just one click.
Gallery/Museum: Arrange curves along the exhibition route, use magnetic wall washers and narrow beam spotlights to accurately illuminate artworks while avoiding glare interference.
Public Hall: Stacking circles, arcs, and straight lines to create a richly layered lighting area, clearly separating reception, waiting, and passage spaces.

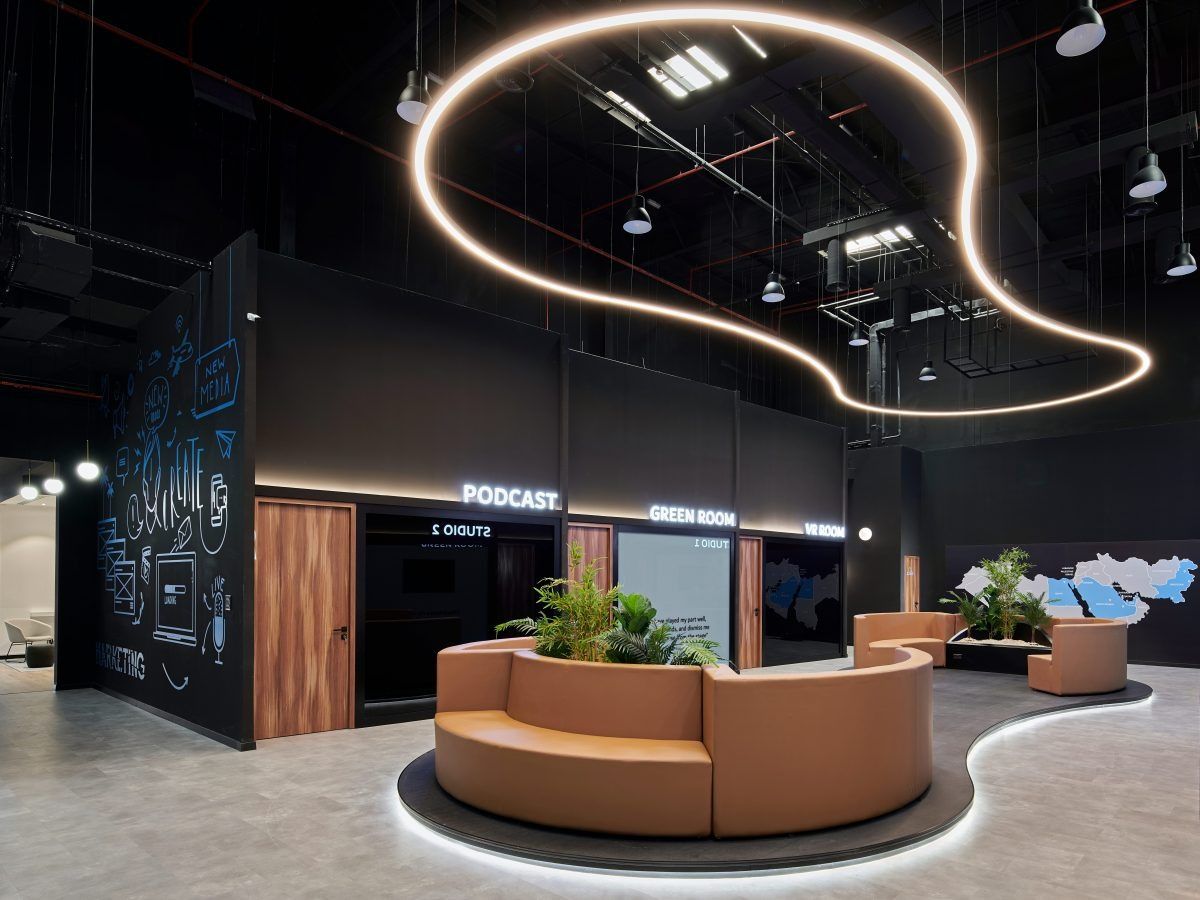

48V magnetic track

Installation guide for curved magnetic track lights
Many people think that the installation of curved magnetic track lights is complicated, but in fact, the core lies in planning, not wiring. As long as the layout is done in advance and the installation method is selected correctly, a lighting system that conforms to the building curve and is stable and durable can be easily achieved. Below, I will share my practical steps.

Step 1: Layout and Curve Radius Planning
Whether it is a circular, curved, or S-shaped track, the first step is to clarify the logic on paper/plan:
First, draw a layout sketch: clearly mark the curve type (circular/wave/S-shape), total length of the track, segmented connection points, and power supply feeding positions to avoid confusion in later wiring.

Accurate measurement of curve radius:
Circular track: Clearly define the inner and outer diameters to ensure a perfect match with spatial dimensions;
Custom curve: The minimum bending radius provided by the manufacturer must be consulted, and it is absolutely not allowed to forcefully bend too small a radius, otherwise it will directly damage the track profile.

Step 2: Choose an installation method that suits your top surface and style
There are three main installation methods for curved tracks, which should be selected based on ceiling type, floor height, and aesthetic preferences:

Embedded installation: suitable for modern spaces that pursue minimalism without main lights, requiring ceiling/gypsum board cavities that can perfectly integrate into curved ceilings and niches, achieving "invisible" lighting effects.

Surface installation: preferred for scenarios such as concrete roofs and old house renovations where slotting is not possible. The slim track shape still maintains a modern feel without damaging the original roof structure.

Lifting installation: Optimal selection for elevated spaces such as hotel lobbies, large flat living rooms, and offices. Use hanging wires/rods to suspend curved tracks above dining tables, bars, or moving lines, creating a floating light and shadow effect.

Step 3: Top surface pretreatment
Check the installation surface: Ensure that the top/wall surface is flat, clean, and dry, remove dust, loose plaster, and old paint.
Accurate marking and positioning: Use chalk lines or laser level to draw smooth curves and circular centerlines, while marking fixed points (expansion screws/screw positions), segmented joint positions, and driver access ports.

Step 4: Low voltage drive and power supply
Curved magnetic tracks mostly use 24V/48V low-voltage systems, and the wiring should pay attention to these points:

Choose the right driver: The power should match the total power of all lighting modules, and it is recommended to reserve a 20% -30% margin to avoid overload and malfunction.
Driver placement: Place it in a well ventilated and easily accessible location (such as a ceiling sandwich, dedicated junction box, or cabinet) to facilitate heat dissipation and extend its lifespan.

Standardized wiring: Connect low-voltage cables to power feeders, corner connectors, and curved/circular joints, strictly follow polarity and wiring diagrams to prevent flickering or "dead light areas".

Step 5: Installation and alignment of lighting fixtures
After the track is fixed and powered on, magnetic lamps can be installed:

Snap on installation: Insert adjustable spotlight (key lighting), linear module (ambient light), magnetic pendant light (focal area) and other modules into the track.

Sliding adjustment position: Slide the lamp along the curve and align it with the target position such as the wall artwork, operating table, dining table, etc.

Safety check: Ensure that the magnetic contacts of each module are fully embedded in the track, and fasten the mechanical lock of the lifting/vertical track to prevent detachment.

Smart curved magnetic track lighting

When designing curved magnetic track lighting, it is not only a beautiful curve on the ceiling, but also a complete set of intelligent lighting ecology. Only by integrating intelligent control from the beginning can we truly achieve the value of practicality and aesthetics.

Easy integration with mainstream intelligent control systems
The current mainstream 24V/48V curved magnetic track systems have strong compatibility and can be directly connected to various intelligent control solutions:
Home smart wall switch (Wi Fi, Zigbee, Z-Wave)
Mobile APP control (Graffiti Smart, Smart Life, Philips Hue gateway, etc.)
DALI and 0-10V driver protocols commonly used in commercial projects

It is also very flexible in practical use:
Daily use of intelligent switches, one click implementation of whole house/single channel switching and dimming;
When partition control, timed switching, or remote control are required, they can be directly managed through the APP;
It is recommended to install the driver unit in the ceiling or cabinet for easy upgrading and maintenance in the future.

Curved Magnetic Track Light: Maintenance, Safety, and Service Life Guide

The maintenance cost of the curved magnetic track lighting system itself is not high. As long as daily cleaning, regular inspection, and standardized use are done well, it can maintain stable operation for a long time, while maximizing the service life of the entire system.

Daily cleaning and appearance maintenance
To maintain a clean and refreshing visual effect of the curved track and lighting fixtures, daily cleaning is very simple:

Use a soft cloth or microfiber duster every week to gently sweep and remove dust along the curved track;

When encountering stubborn stains, wipe them with a slightly damp cloth, and avoid using strong acid or alkali cleaners or grinding tools;

When cleaning, do not spray the cleaning agent directly on the lamp module. It is safer to spray it on a cloth first and then wipe it off;
Regularly clean the dust and debris in the magnetic groove of the track to avoid dust accumulation affecting the conductivity and bonding effect.

Regular inspection of magnetic contacts and connectors
After long-term use, the contact state directly affects the stability of the light. It is recommended to conduct regular simple inspections:

Gently remove the magnetic modules such as spotlights and linear lights, and then firmly clip them back onto the track to ensure that the magnets are firmly attached and not loose;

Check for any looseness, overheating, discoloration, or other abnormal conditions in the connectors and joints on the track;
If there is flickering of the lighting fixtures, the module can be moved to another position on the track for testing to quickly investigate whether it is caused by poor contact.

Reasonable heat dissipation to extend the service life of LED
Heat dissipation is the key to ensuring the durability of LED light sources in curved tracks:

Prioritize the use of aluminum heat dissipation lamps that match the curved track profiles to improve heat dissipation efficiency;
Do not densely install too many spotlights or light modules in small radius curved areas, and reserve reasonable spacing;

High quality LEDs work at suitable temperatures, resulting in not only more stable luminous flux but also long-term color rendering and longer service life.

Specification for Safe Use of Low Voltage Systems
Even with 24V/48V low voltage design, daily safety checks cannot be ignored:

The driver should be installed in a well ventilated location and should not be completely wrapped by insulation materials to ensure normal heat dissipation;

Inspect the entire system circuit once a year to check for aging, overheating, or damage;
Ensure that all connectors and power cords are tightly connected and not exposed, and equipped with smart switches and dimming devices that match the specifications of the driver.

Modular design, easy upgrade without changing tracks
Onemajor advantage of curved magnetic track lights is that they are very easy to upgrade in the later stage:

The original curved track can be retained, and the effect can be upgraded by simply replacing the magnetic light fixture module;

Without changing the track, ordinary color temperature lamps can be replaced with adjustable color temperature, RGB or intelligent control modules;
Different functional modules such as pendant lights and wall washers can also be added according to space requirements.

This modular design not only saves labor and material costs for later modifications, but also allows the lighting system to continuously meet the needs of space updates, maintaining a fashionable and practical effect for a long time.

After reading this comprehensive analysis, I believe you have a complete understanding of the design freedom, easy installation, intelligent adaptation, and long-term durability of curved magnetic track lights. It breaks the linear constraints of traditional track lights and, with its flexible and modular design, perfectly adapts to diverse spaces such as residential, office, and commercial areas. It can become an aesthetic highlight of the space and accurately meet functional lighting needs.
Whether it's creating a minimalist design without a main light for new house decoration, upgrading smart lighting for old house renovation, or customizing lighting solutions for commercial spaces, curved magnetic track lights can provide a one-stop solution. We not only provide a full range of tracks, lighting modules, and smart control accessories, but also offer exclusive customization services based on your space size and design style. With professional technical support and installation guidance, we make your lighting concepts easy to implement.

If you want to know specific product quotations, customized solutions, or need engineers to provide you with free layout planning, please feel free to contact us at any time to unlock your own dynamic light and shadow space!
