Guidelines for Matching 6 Types of Stretch Ceiling Aluminum Shapes with Lighting Fixtures
By SmartGlow
April 2nd, 2026
This article provides a detailed explanation of the lighting fixture matching solutions for six types of specialized stretch ceiling aluminum materials, covering core effects such as suspended light, hidden light, and flexible combination light, suitable for residential and commercial spaces, and providing an intelligent stretch ceiling integrated solution that integrates lighting, functionality, and aesthetics.
In the practice of SmartGlow Lighting's deep cultivation of stretching ceiling systems, we have found that the lighting texture of walls and ceilings not only depends on the lighting fixtures, but also on the precise adaptation of aluminum materials. Especially in scenarios where wall to ceiling connections and sound insulation are required, selecting the right aluminum material is essential to ensure that lighting does not damage the structure while also amplifying the spatial atmosphere.In this article, we will break down 6 types of mainstream stretch ceiling aluminum profiles one by one, detailing the characteristics, compatibility with lighting fixtures, installation methods, light and shadow effects, and applicable scenarios of each aluminum profile, helping you solve lighting matching in one stop.Suspended ceiling special aluminum material (suspended transparent)Embedded lighting ceiling aluminum material (hiding uniform light)Magnetic track integrated aluminum material (flexible combination of light)Special stretch ceiling aluminum material for wall top connection (transition contour light)Special stretch ceiling aluminum material for soundproof walls (quiet and soft light)
Hidden curtain track stretch aluminum material (invisible coordinated light)

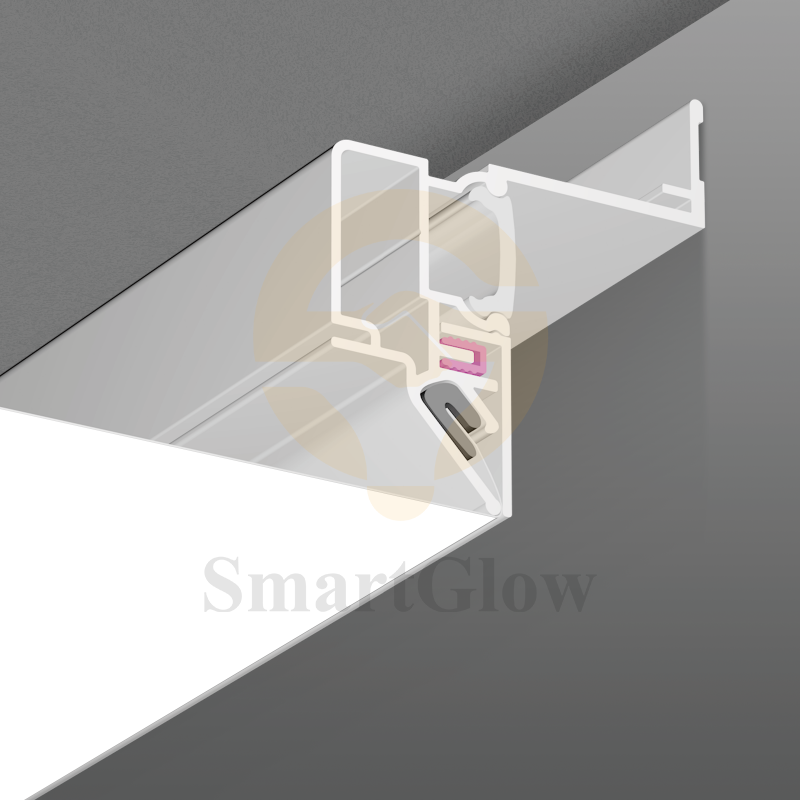

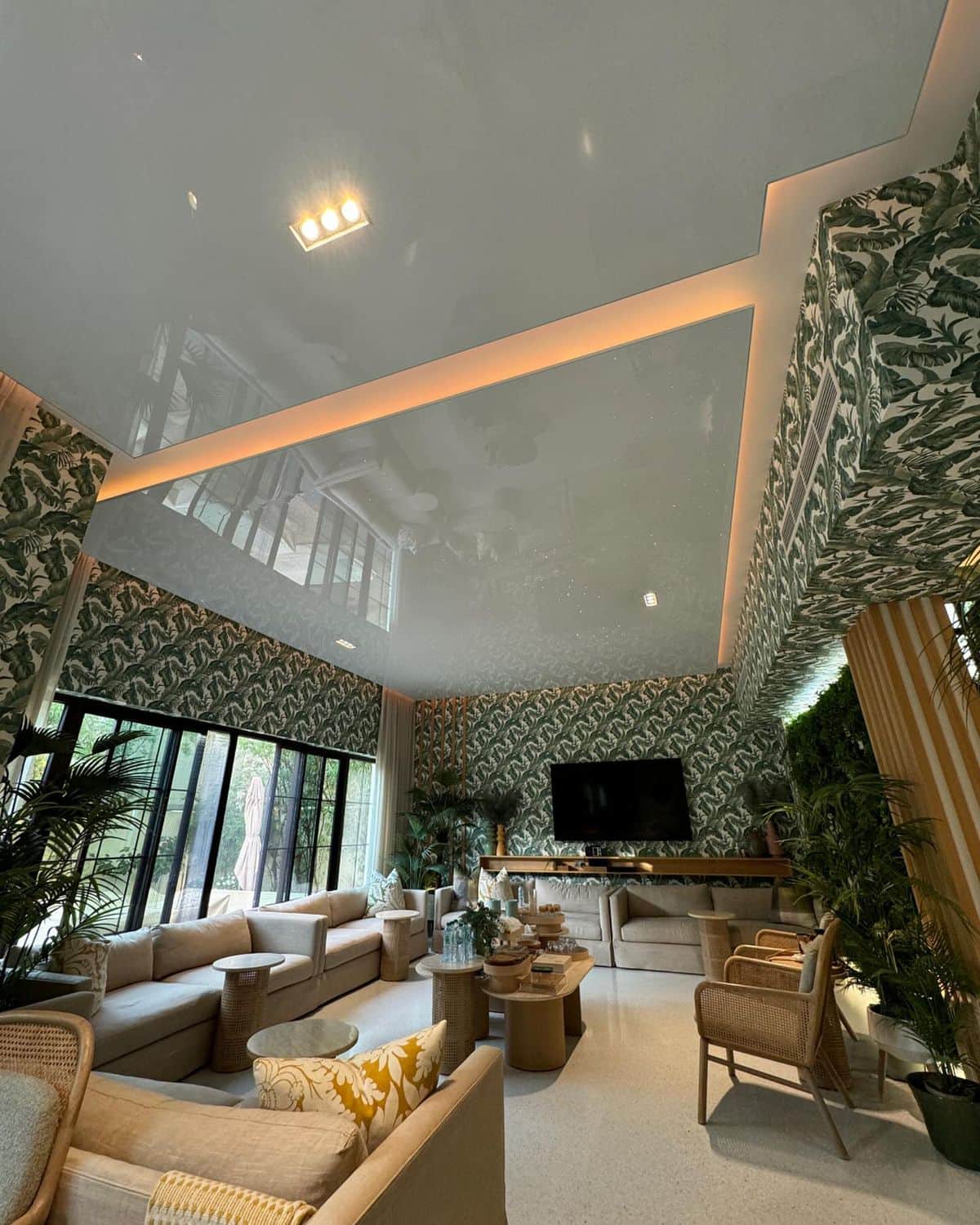

Suspended Ceiling Special Stretch Aluminum Ceiling (Suspended Transparent)
The load-bearing and lighting integrated aluminum material designed specifically for suspended tensile ceilings focuses on creating a "borderless suspended feeling", allowing lighting to deeply integrate with suspended ceilings and completely break free from the oppressive feeling of traditional ceilings.
Profile specifications: Lightweight high-strength aluminum alloy frame (wall thickness 2.5mm), supports hanging wires (wire spacing ≤ 1.2m), comes with 13mm hidden light trough, customizable ceiling size and shape (circular or irregular)Suitable lighting fixtures: Low voltage flexible LED strip (2835 model, color rendering index ≥ 90), mini hanging wire light (adjustable wire length), suspended linear light (same length as aluminum)
Installation method: First, fix the top suspension point with expansion screws, connect the suspension wire to the aluminum frame and level it, embed the light strip into the frame light slot, cover it with a PC soft light diffusion cover, and then tension and fix the stretching film under the frame. The suspension wire light can penetrate the film material and be installed through the preset hole (the hole size matches the lamp base accurately)
Light and shadow effect: The soft light emitted from the lamp trough forms a "floating light strip" along the edge of the ceiling, and the hanging line lamp provides focused lighting vertically downwards. The overall light is transparent and does not exceed the height of the ceiling, without obvious traces of light sources, creating a light and open sense of space
Applicable scenarios: Suspended ceiling in living room, irregular ceiling in dining room, central area of exhibition hall, suspended design in hotel lobby, open office area
Core advantages: Integrated load-bearing and lighting, without damaging the original top structure, transparent light and shadow with a sense of design, suitable for irregular shapes, meeting the needs of modern simplicity, minimalism, light luxury and other styles
(Click here to view our suspended stretch ceiling project)

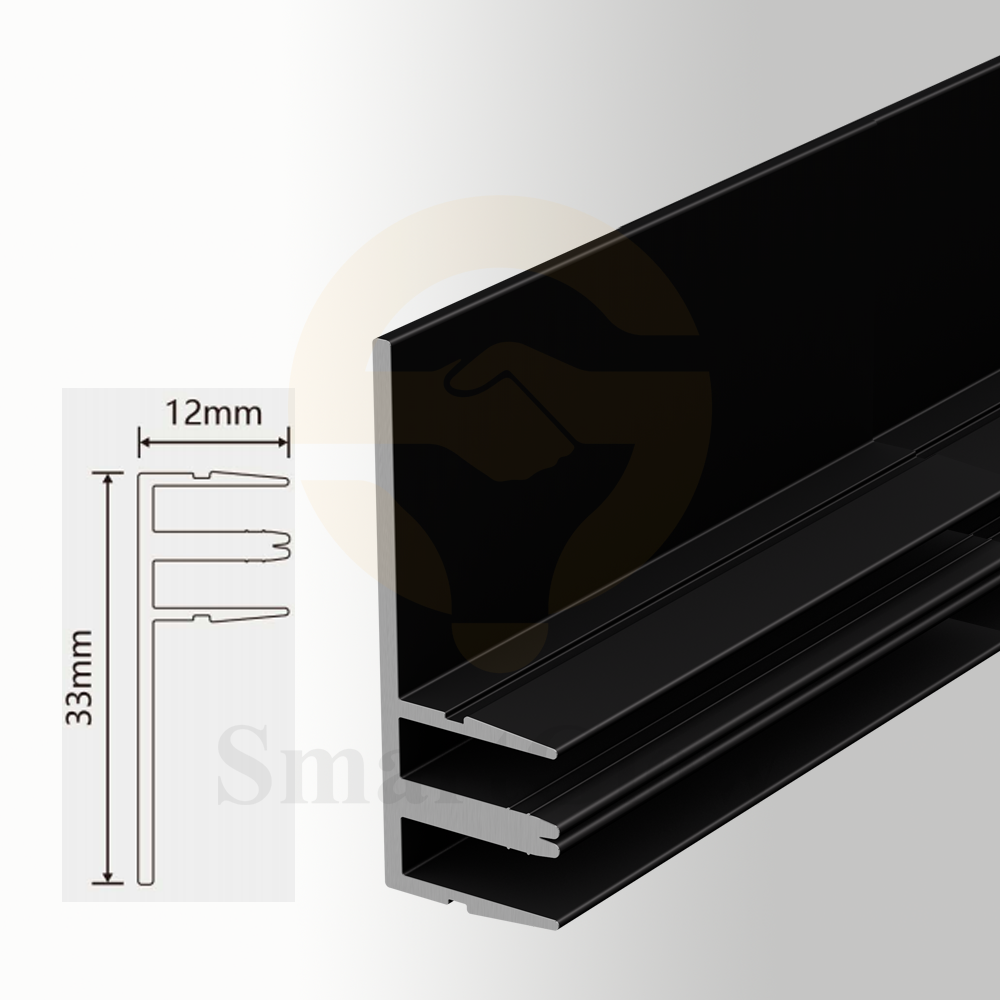

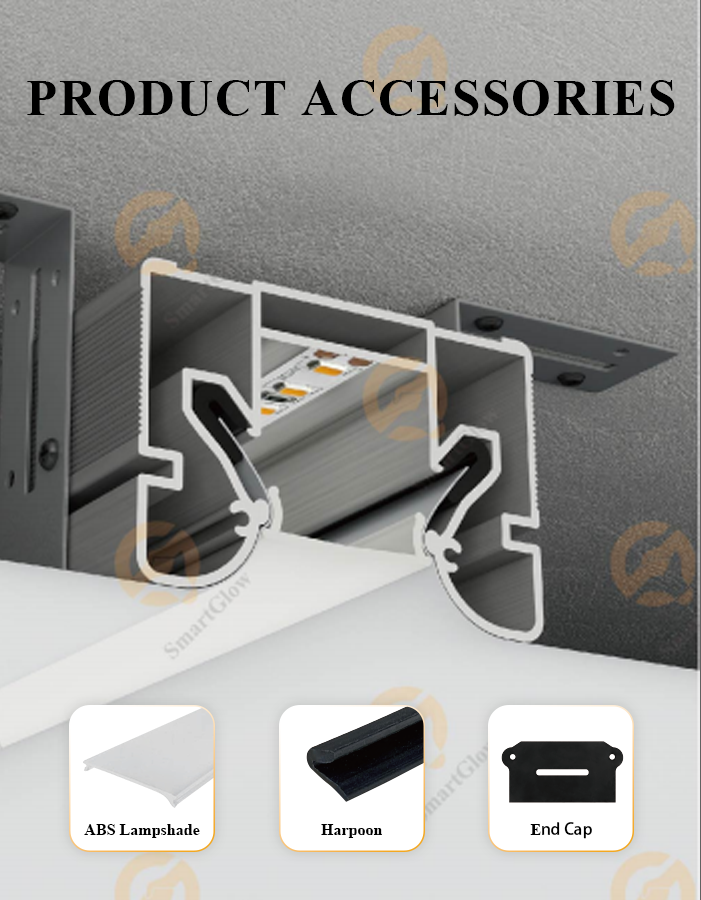

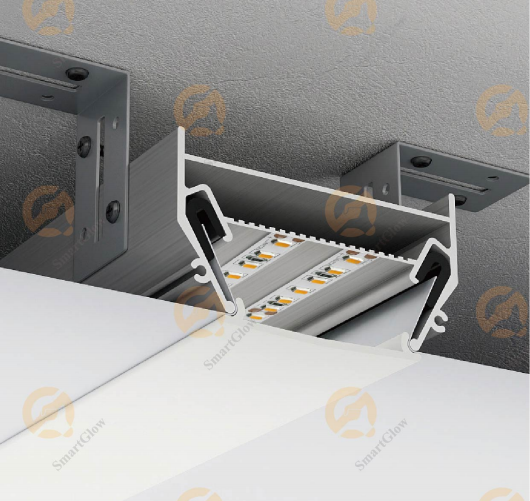

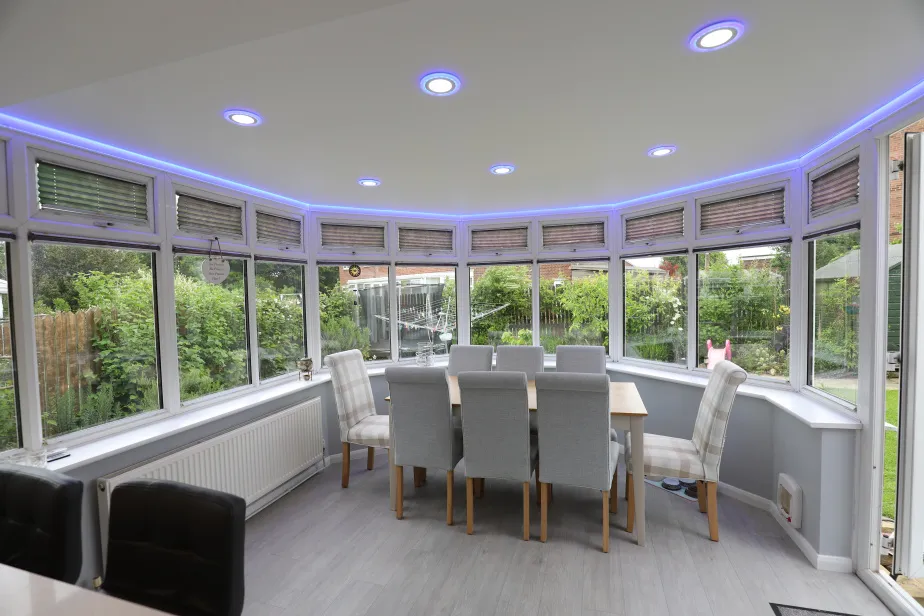

Embedded ceiling lighting with stretched aluminum material (hiding uniform light)
The specialized stretch ceiling aluminum material that focuses on fully concealed lighting allows the lamps to be flush with the stretched ceiling, without protrusions or exposure, and solves the core problem of "integrated lighting and ceiling".
Suitable lighting fixtures: embedded LED downlight (aperture 80-120mm optional), low-voltage flexible LED strip, anti glare embedded spotlight (beam angle adjustable from 15 ° -60 °)Installation method: First, fix the aluminum groove on the top base layer, cover the aluminum surface with a stretching film, and reserve the installation hole for the lamp. The lamp is inserted into the aluminum slot from below the film material, completely flush with the film surface, without any loose gapsLight and shadow effects: The light is evenly projected, with down lights providing basic illumination and spotlights focusing on key areas without glare or leakage. The ceiling surface is clean and uniform, visually "seeing only the light but not the light"Applicable scenarios: bedrooms, kitchens, bathrooms, corridors, meeting rooms, high-end residential whole house ceilingsCore advantages: Hidden installation does not damage the integrity of the ceiling, uniform and soft lighting, anti glare design is more eye friendly, suitable for spaces with high cleanliness requirements, easy installation and maintenance
(Click here to view our embedded stretch ceiling lighting project)

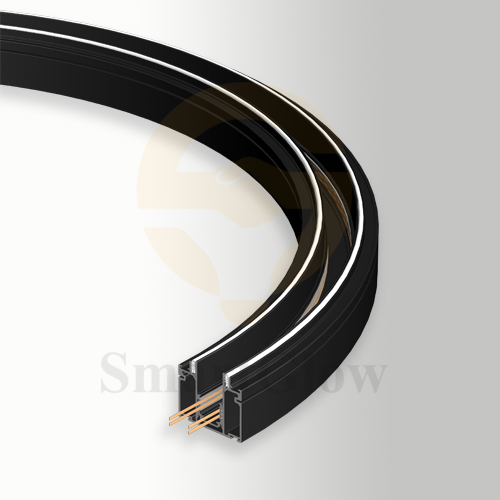

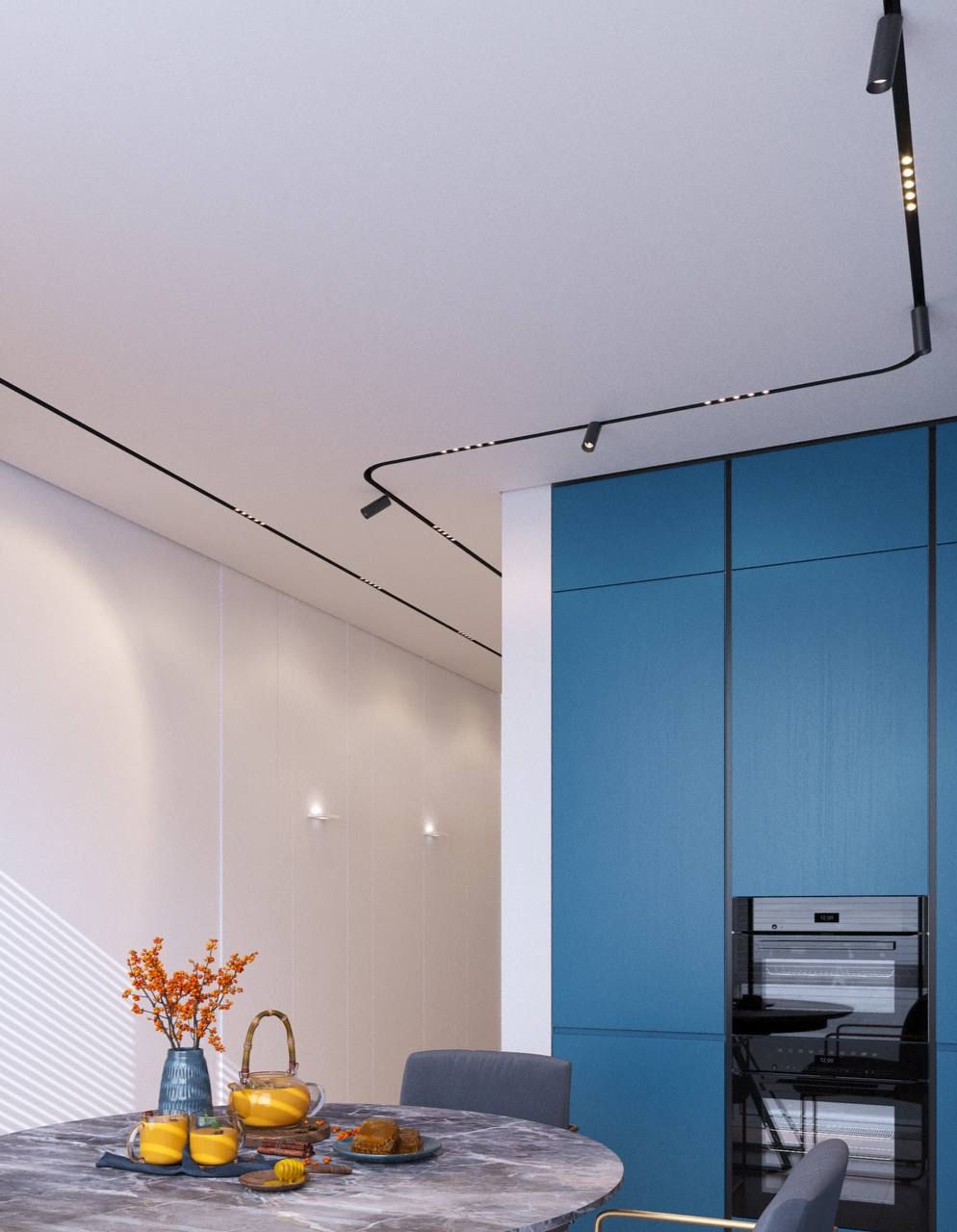

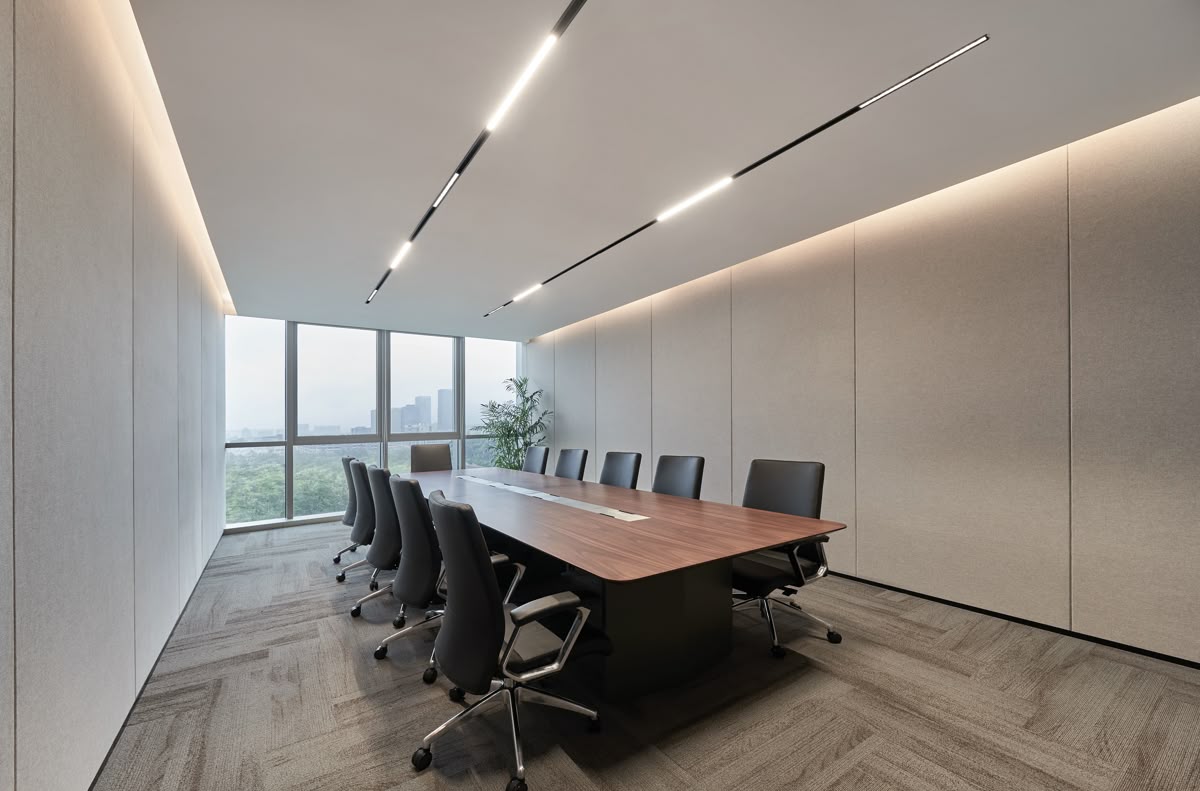

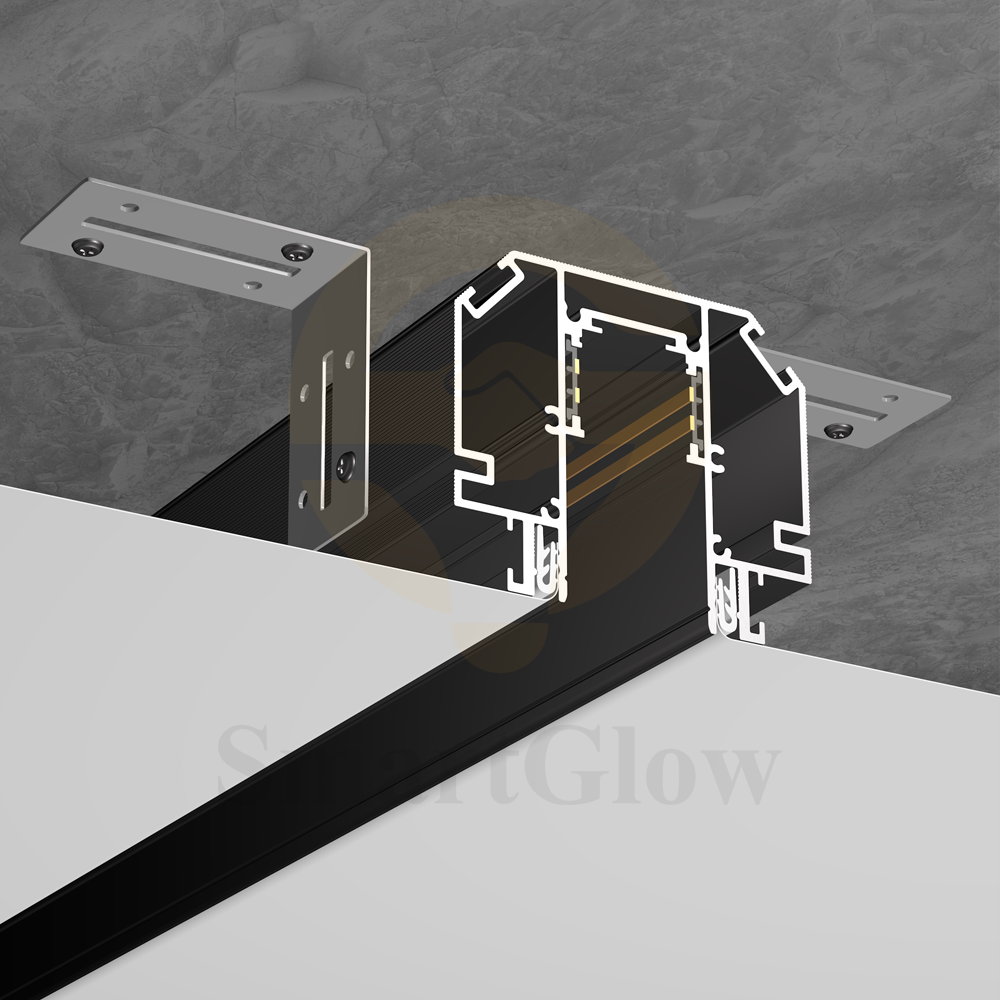

Magnetic track integrated stretch ceiling aluminum material (flexible combination of light)
The integrated design of intelligent magnetic tracks and stretched ceiling aluminum materials focuses on flexible and adjustable lighting layout, adapting to spaces that require dynamic adjustment of lighting requirements.
Profile specification: Integrated stretch ceiling magnetic track aluminum material (thickness 12mm, track groove width 20-30mm), compatible with universal magnetic suction lighting interface, supports long-distance splicing (maximum length of 3m per section). It can be embedded in the ceiling or wall base, or installed openly or suspended on the ceiling.Suitable lighting fixtures: magnetic spotlights (adjustable angle 0 ° -90 °), magnetic floodlights (emitting angle 120 °), magnetic linear lights (length customizable), magnetic pendant lights (adjustable height above ground), magnetic grille lights (anti glare soft light)Installation method: The aluminum material is fixed in advance on the ceiling or wall base, and a track opening is reserved at the corresponding position of the stretch film. The exposed part of the track is level with the film surface, and the lamp can slide, absorb, and disassemble freely without tools, without the need for additional wiringLight and shadow effects: can freely combine point light (focusing on decorative paintings/exhibits), line light (uniformly brightening), surface light (atmosphere enhancement), support intelligent dimming (brightness 0% -100%), color temperature switching (3000K-6000K), scene linkage (such as reception mode and viewing mode), no exposed pipelines, minimalist and tidyApplicable scenarios: living room, open study, retail store display wall, dynamic display area of exhibition hall, multifunctional conference roomCore advantages: Zero constraints on lighting layout, adaptability to changes in spatial functions (such as home layout adjustments and commercial display updates), intelligent control to enhance convenience, and the ability to add lighting fixtures as needed in the future without the need to modify the structure
(Click here to view our stretch ceiling magnetic track project)

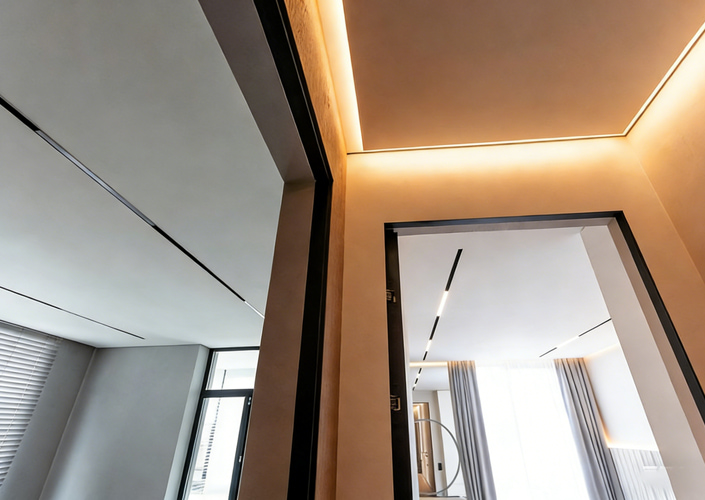

Special stretch ceiling aluminum material for wall top connection (transition contour light)
The integrated aluminum material designed specifically for the connection between the inner and outer corners of walls and ceilings solves the problem of "lighting discontinuity at the boundary between walls and ceilings" and creates seamless transition light and shadow.
Compatible with lighting fixtures: flexible LED strip (bendable to adapt to internal and external corners), mini low-voltage linear strip (12V safe voltage), RGB full-color strip (supports color gradient)
Installation method: Fix the two right angled edges of the L-shaped aluminum material on the wall and ceiling base respectively, embed the light strip into the aluminum groove, and cover the wall and ceiling with stretch film respectively. The aluminum material is completely hidden at the corner of the wall top, only allowing light to pass through
Light and shadow effect: Light follows the top of the wall to form a soft "contour light strip", eliminating the stiffness of the wall top boundary and making the space more transparent and coherent. At the same time, there are no dust or dead corners at the corners, making it easy for daily cleaning
Applicable scenarios: living room wall top corner, bedroom corner, corridor connection, hotel room wall top transition, overall outline of exhibition hall, villa empty space wall top connection
Core advantages: Integration of connection and lighting, simple installation, natural transition of light and shadow, balancing practicality and aesthetics, suitable for mainstream styles such as minimalism, light luxury, and modernity, and can switch light effects through intelligent control
(Click here to view our stretch ceiling wall top connection project)

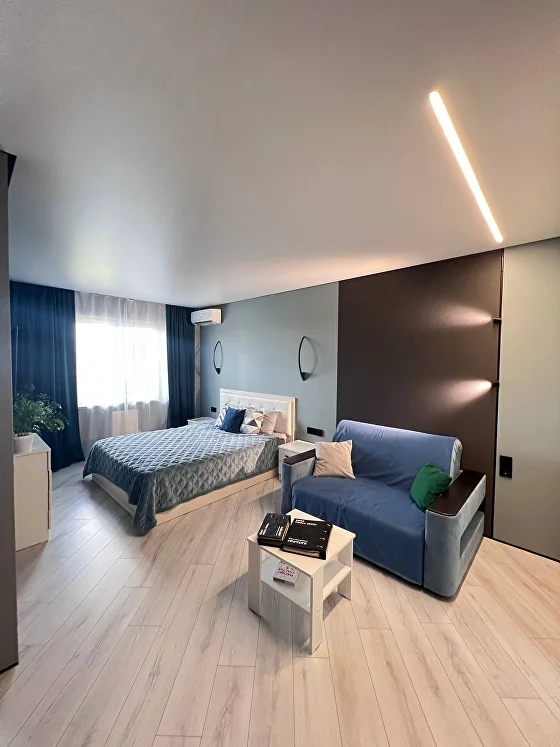

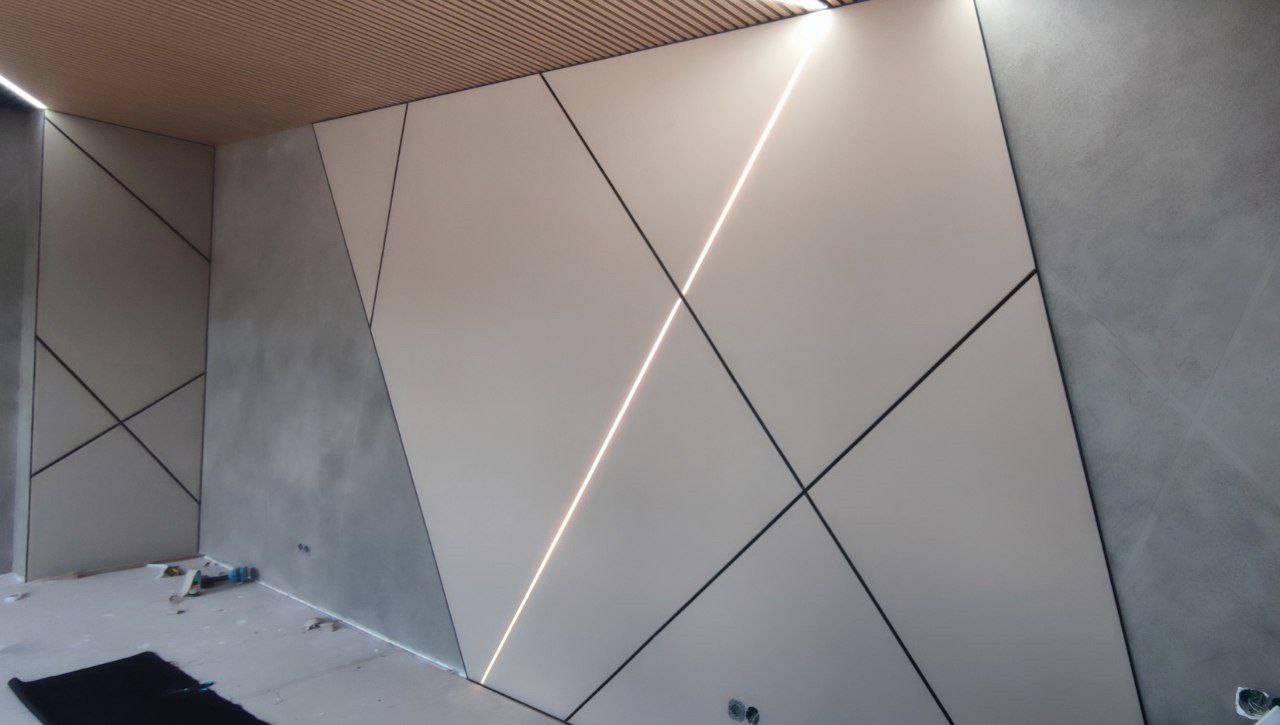

Specialized soundproof wall stretch ceiling aluminum material (quiet and soft light)
The integrated aluminum material for sound insulation and lighting, specially designed for fabric soundproof walls, focuses on integrating lighting without damaging the sound insulation structure, achieving the dual requirements of silence and light and shadow.
Suitable lighting fixtures: low heat flexible LED strip (power ≤ 12W/m, to avoid high temperature affecting the sound insulation cotton), embedded magnetic suction small spotlight (no perforation design, not damaging the sound insulation layer), side emitting light strip (diffuse light not directly), embedded wall light.Installation method: Aluminum material is embedded in the soundproof wall frame, with the light groove facing indoors. The light strip/lamp is fixed in the groove and covered with an anti glare soft light cover. The fabric soundproof film is tightly stretched and fixed against the aluminum surface to ensure that the soundproof layer is sealed without gaps. The light groove and film material are seamlessly connectedLight and shadow effect: The light is softened by a soft light cover and a fabric film, forming a warm diffused light without glare or direct light. It not only meets the needs of space basic lighting or ambient lighting, but also does not damage the sound absorption and insulation performance of soundproof walls. The sound propagation is softer, reducing echo and noise interferenceApplicable scenarios: soundproof walls in audiovisual rooms, soundproof walls in study rooms, soundproof background walls in conference rooms, soundproof headboard walls in bedrooms, soundproof partitions in offices, soundproof walls in piano roomsCore advantages: Compatible with lighting and sound insulation functions, does not weaken the wall's silent effect, concealed installation of lighting fixtures keeps the wall clean, low heat design is safer, and soft lighting effects are suitable for the atmosphere needs of quiet spaces
(Click here to view our stretched ceiling soundproof wall project)

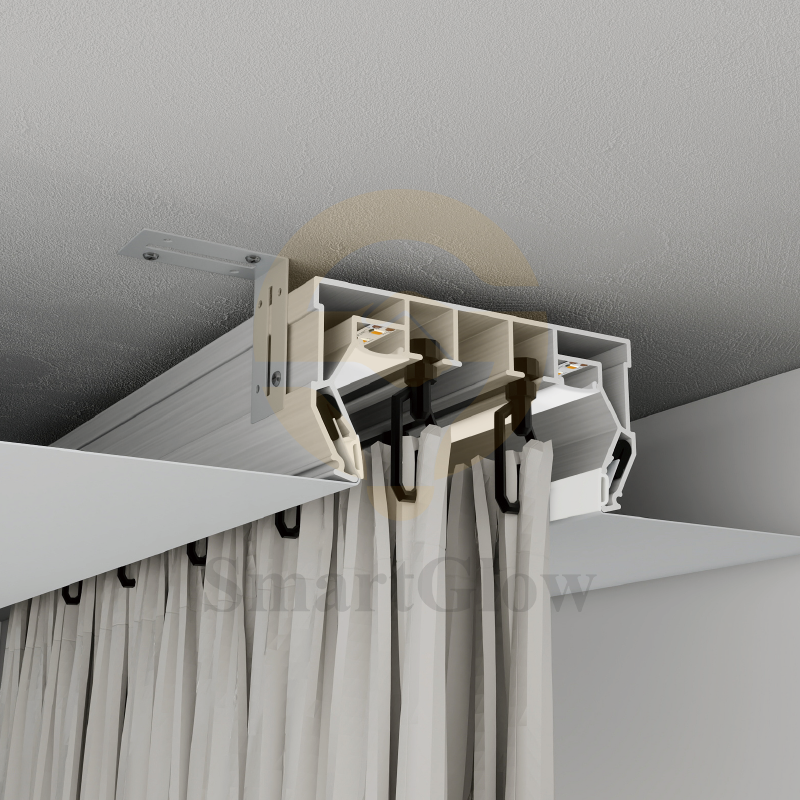

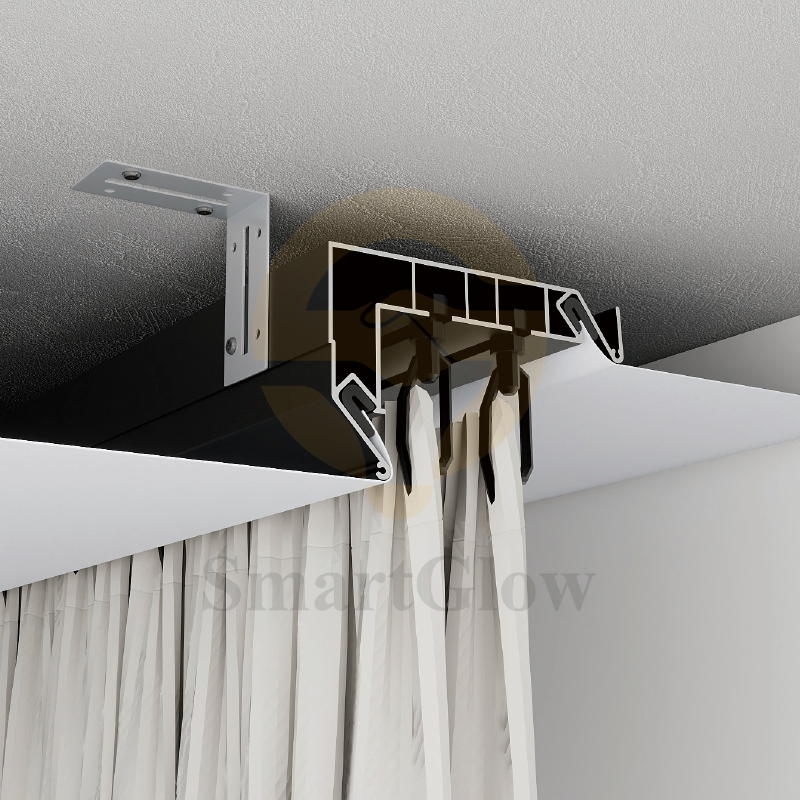

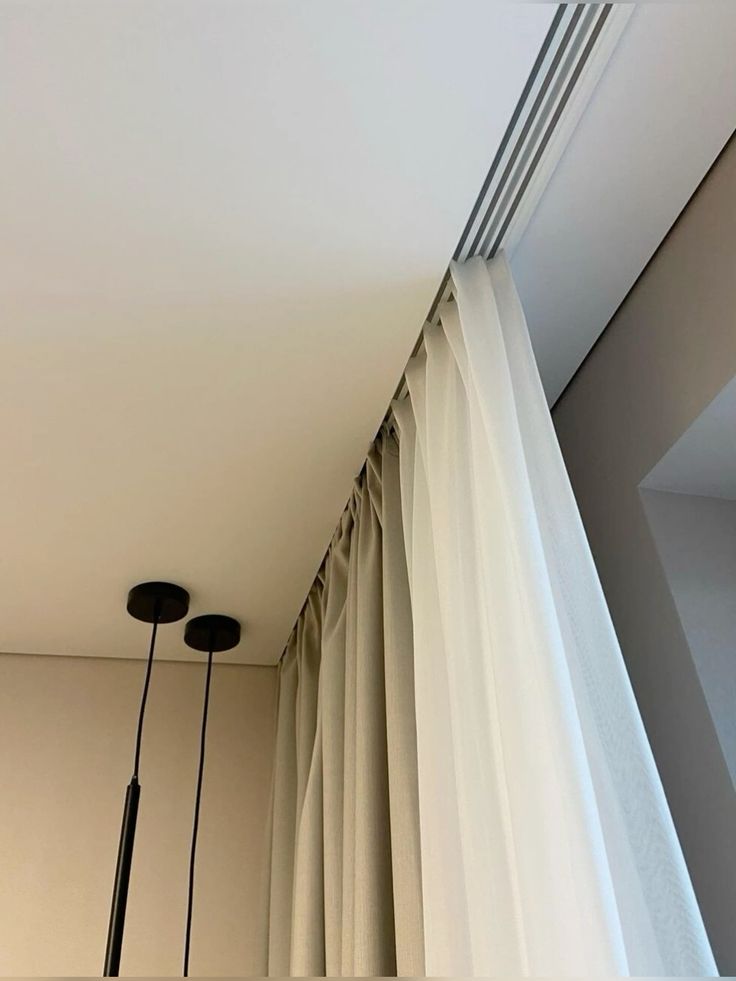

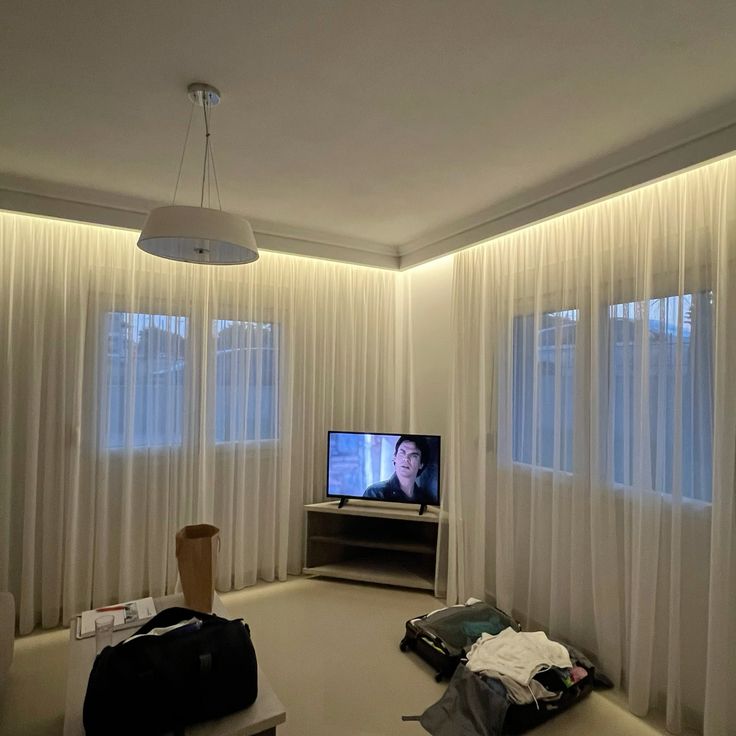

Hidden curtain track stretch aluminum material (invisible coordinated light)
The integrated stretched aluminum material designed specifically for the dual needs of concealed curtain tracks and perimeter lighting is aimed at solving the pain points of traditional exposed curtain tracks, conflicts between light tracks and curtain boxes, and forming a visually unified whole of stretched ceilings, curtains, and lighting, balancing functionality and aesthetics.
Profile specifications: lightweight high-strength aluminum alloy, wall thickness of 2.0mm, balancing structural stability and installation convenience; Integrated 35mm wide curtain track groove (compatible with manual/electric curtain sliding rail)+20mm hidden light groove, with independent double groove separation and no interference with each other; It can be directly fixed on the top base layer or reserved in the curtain box, supporting seamless connection with the stretch film, with an overall thickness of only 15mm, without occupying additional layer height; The edge of the lamp groove is equipped with anti slip sealing tape to ensure seamless adhesion with the stretch film and avoid light leakage.
Suitable for lighting fixtures and curtainsLamp: RGBW flexible LED strip (2835 model, color rendering index ≥ 90, power ≤ 12W/m, low heat does not affect the use of curtains)Curtains: Light and thin gauze curtains, blackout fabric curtains (compatible with conventional curtain slides), compatible with electric curtain motor installation, supporting automatic opening and closing function.
Installation methodCustomize aluminum material according to the actual length of the curtain track, fix the aluminum material in the preset position on the top surface (or inside the curtain box), and use a level to accurately calibrate and ensure horizontal flatness;Embed the RGBW LED strip into the light slot, apply a heat conductive patch on the back of the strip to dissipate heat, and cover it with a PC soft light diffusion cover to avoid direct sunlight and glare;Install sliding rails in the aluminum curtain track groove. For electric models, the motor circuit needs to be pre installed and tested before installing curtain hooks and fabric curtains;The stretch film is tensioned and fixed along the outer edge of the aluminum material, completely hiding the aluminum body, light groove, and curtain track, only exposing the curtain fabric surface and soft perimeter light.
Light and shadow effectsAfter being softened by a diffuser, the light in the lamp trough forms a continuous contour light strip along the edge of the ceiling, without glare or dark spots, and naturally transitions with the curtain fabric;The curtains do not obstruct the light source during the opening and closing process, and the light remains uniform and stable. The RGBW mode can manually/automatically switch between warm white, cool white, and colorful lighting effects, adapting to different scene atmospheres;The overall visual design has no exposed tracks or light slots, and the stretch film, curtains, and lighting form a unified whole, making the space appear more simple and tidy.Applicable scenes: living room french window area, above bedroom bay window, balcony and indoor junction; Next to the french window of the hotel guest room, the window of the exhibition area in the exhibition hall, and the office rest area;Style adaptation: Modern minimalist, minimalist, light luxury, Nordic and other design styles that emphasize a sense of spatial cleanliness.
Core strengthsFunctional integration: integrating curtain track concealment, perimeter lighting, and stretch film fixation, reducing redundant structures and saving space;Visual Cleanliness: Thoroughly conceal the curtain tracks and light slots, eliminate the abruptness of traditional designs, and enhance the overall spatial integrity;Strong scene adaptability: supports manual/electric curtain switching, LED light strip can adjust color temperature and color, suitable for different scenes such as daily rest, reception, and movie watching;Installation friendly: No need to customize complex curtain boxes, can be installed synchronously with stretched ceilings, simplifies the construction process, and saves construction costs.
In conclusion
The lighting combination between the stretched ceiling and the wall is essentially determined by the scene requirements, and the selection of aluminum materials matches the characteristics of the lighting fixtures. For the pursuit of suspended feeling, suspended aluminum materials are selected, and for the preference of cleanliness, embedded aluminum materials are selected. Magnetic tracks need to be flexibly adjusted, wall top transition special connection models need to be selected, and soundproof wall special models need to be selected.At SmartGlow Lighting, we can provide an integrated customized solution of aluminum, lighting fixtures, installation, and intelligent control based on your spatial structure (such as wall to ceiling connection methods, sound insulation requirements), style preferences, and lighting habits, ensuring that every light and shadow is accurately adapted to your needs without sacrificing structural stability and practicality.If you want to further understand the specific specifications of a certain type of aluminum material, the selection details of lighting fixtures, or need to plan an exclusive matching scheme for your project, please feel free to contact us at any time.
