Preferred for Stretching Ceiling Lighting: Selection and Installation Guide for Embedded Downlight

Lighting is a key element in creating spatial texture and atmosphere. Embedded LED downlights, with their practical performance and minimalist aesthetics, have become the mainstream lighting choice for modern homes, offices, and various commercial spaces.
Whether it is the hidden design that adapts to stretch ceilings, or the diverse features of uniform soft lighting, intelligent controllability, and serial splicing, it can accurately meet the lighting and design needs of different scenes.
This article will comprehensively analyze the core advantages of embedded LED downlights, their core differences from spotlights, key selection points for different scenarios, and the exclusive installation process for stretch ceilings, providing a complete reference for creating efficient, beautiful, and durable lighting solutions.

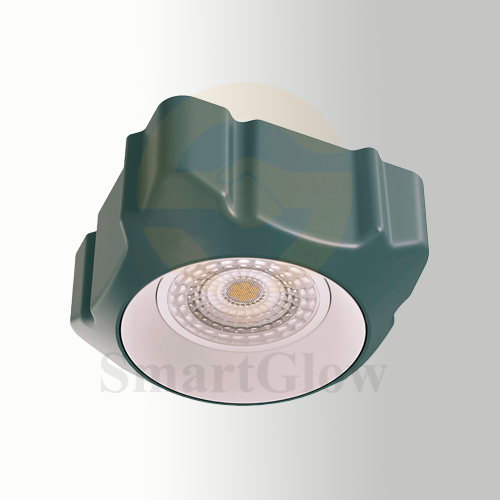

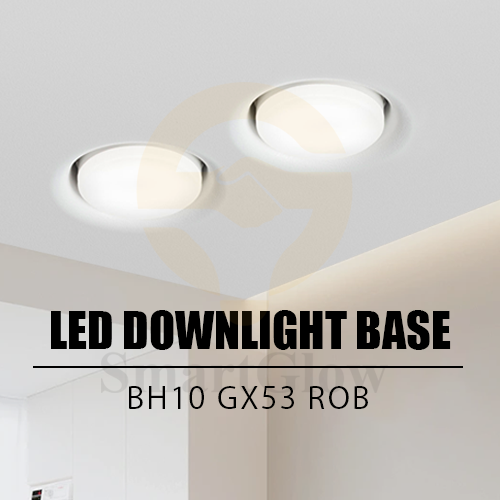

What is an embedded LED downlight
Due to its powerful and easily accessible core advantages, downlights have become a popular lighting choice in modern spaces. Among them, the embedded downlight (also known as embedded stretch lighting) is the mainstream model - it is designed specifically for stretching ceiling cavities, with the lamp body completely hidden inside the top surface, only revealing a simple decorative cover, which can create a smooth and clean visual effect, perfectly matching the minimalist design concept of "seeing light but not seeing light".

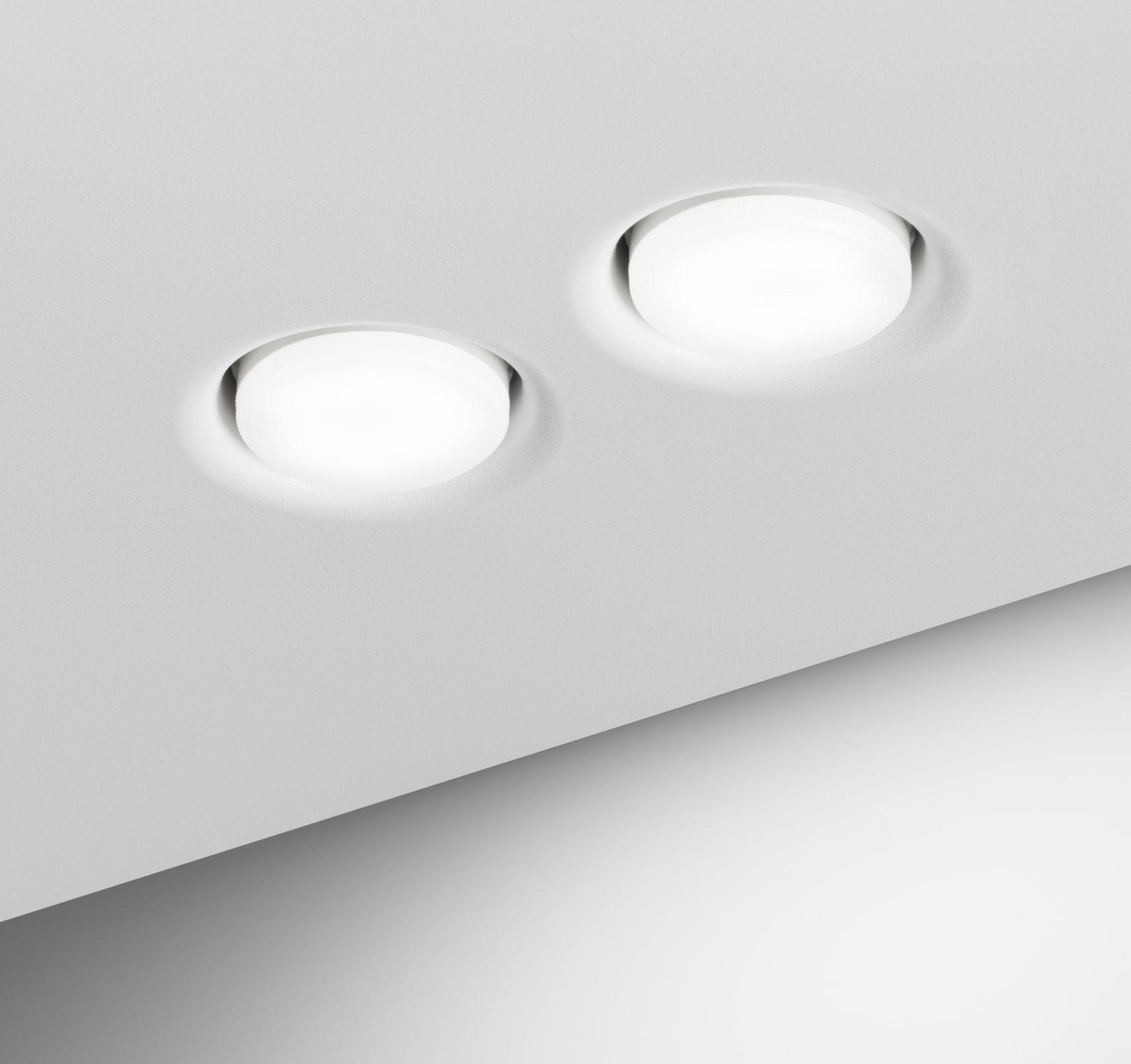

The key design highlight lies in the frosted panel: the panel combines decoration and practicality, and as a natural diffuser, it can evenly spread the light beam, avoid glare, and make the light coverage wider. The light source is embedded in the ceiling and shines vertically downwards, providing basic lighting without compromising the overall aesthetic of the space, suitable for various residential and commercial scenes.

Embedded LED downlight: why has it become the preferred lighting for all scenarios

The reason why embedded downlights have become a classic choice in the field of lighting in residential, commercial, and various building environments lies in their multiple core advantages of beauty, practicality, and flexibility, which can accurately adapt to the design tone and lighting needs of different spaces.

• Ultimate Aesthetics: Its lamp body is completely hidden in the stretched ceiling cavity, with only a simple decorative cover design exposed, minimizing the visual presence of the lamp itself. It can easily integrate various design styles such as modern, minimalist, and light luxury, creating a smooth and clean high-end beauty for the space, perfectly fitting the minimalist design concept of "seeing light but not light".

• Multifunctionality: It can cover the lighting needs of all scenarios, providing uniform light for the entire house as basic lighting, adapting to work areas such as kitchens and study rooms as work lighting, and highlighting spatial highlights such as wall decorations and exhibits as key lighting. It can flexibly adapt to diverse functional layouts.

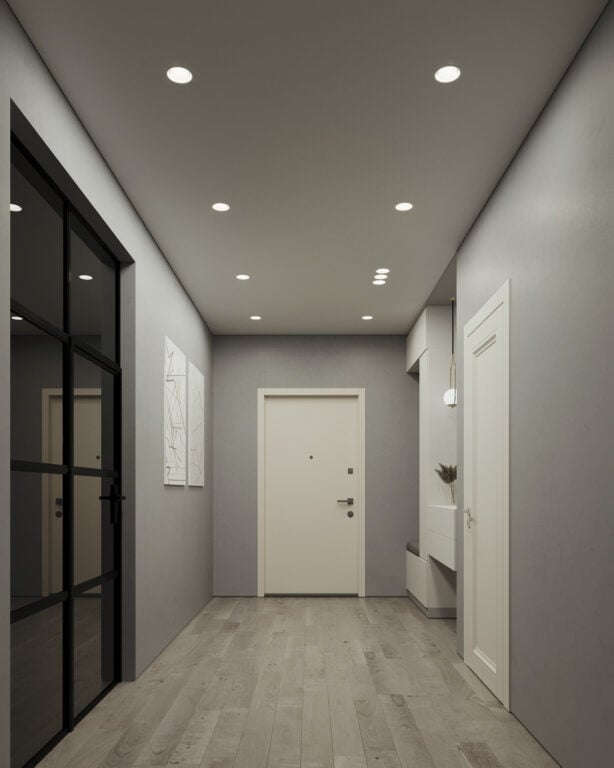

• High space utilization: completely embedded inside the ceiling, not occupying any vertical space in the room, especially suitable for small apartments, low ceilings, narrow areas such as corridors and entrances. It not only does not destroy the sense of openness in the space, but also efficiently completes basic lighting, making it an ideal choice for limited space scenes.

• High light comfort: Paired with frosted panels and deep cup anti glare design, the light is uniform and soft, avoiding glare and protecting vision.

• Energy saving and durable: LED models have a light efficiency of over 110lm/W, a lifespan of over 50000 hours, and low long-term usage costs.

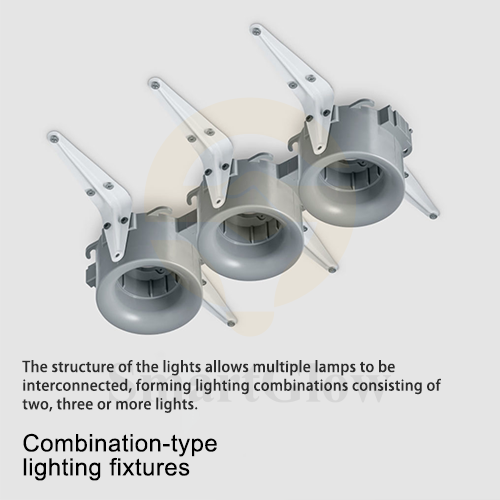

• Series connection design: Adopting a snap in series connection lamp housing cover design, it supports the free splicing and series connection of multiple lamps, making it easy to create an integrated embedded linear lighting effect. Not only can it significantly enhance the delicacy and atmosphere of spatial lighting, but it can also flexibly adapt to various scenes such as living rooms, corridors, exhibition halls, and office areas, meeting diverse lighting design needs.

• Intelligent control: With powerful intelligent control capabilities, it supports mainstream intelligent protocols such as Bluetooth Mesh, Wi Fi, DALI, Zigbee, etc. Flexible selection can be made according to the needs of different scenarios such as residential, commercial exhibition halls, and office areas, easily realizing functions such as APP remote control, voice command operation, and multi device linkage, bringing users a convenient and efficient intelligent lighting management experience.





What is the difference between downlights and spotlights

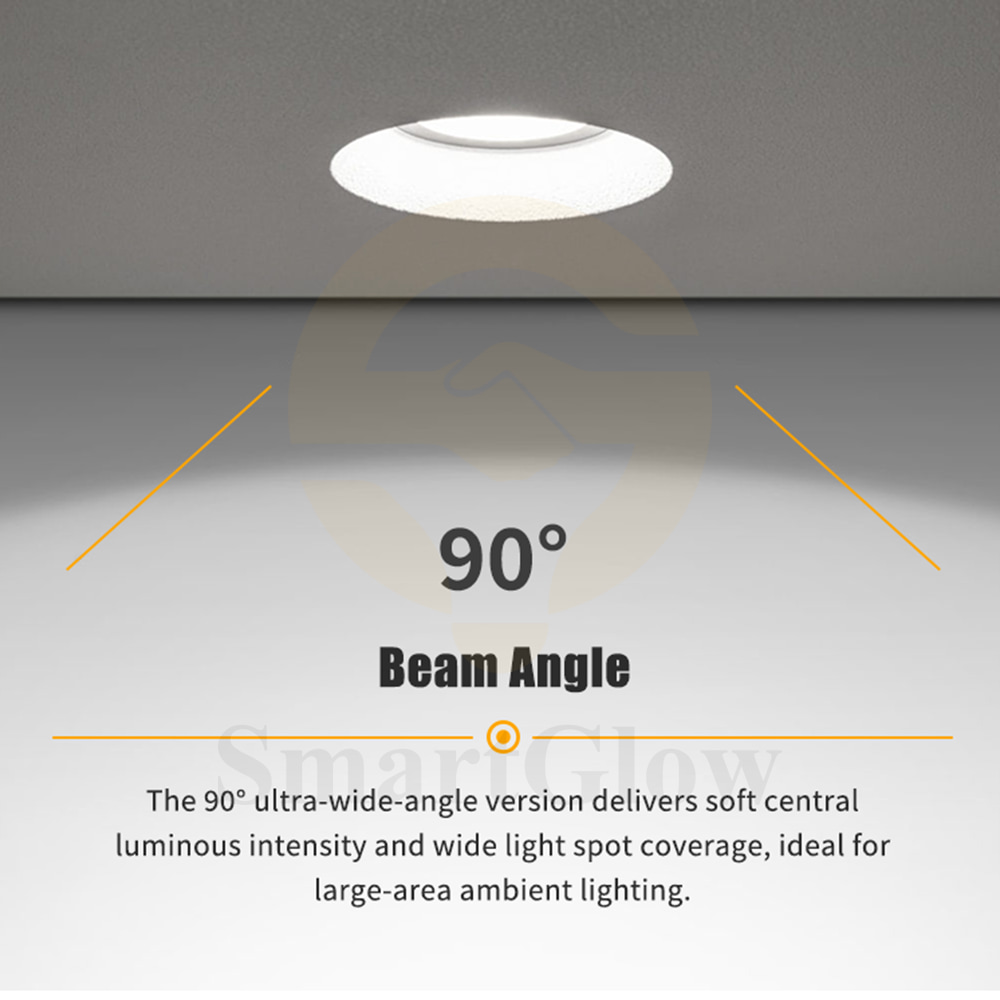

The spotlight spot is more concentrated and narrower, while the led downlight spot is more stretched and wider, which is also one of the core differences in light between the two.

downlights can provide uniform and soft overall lighting for indoor spaces, allowing light to fill the entire room. Therefore, they are very suitable for spaces that prioritize practical functions and weaken decorative elements, such as kitchens, offices, classrooms, etc. A lighting environment with sufficient and minimal shadows can provide better visual conditions for daily activities such as cooking, office work, and learning.

Compared to focused spotlights, downlights, with their wide-angle illumination characteristics, can fully illuminate a space with fewer quantities and hardly produce dark corners. However, precisely because the light has a wide range of diffusion and uniform distribution, although the lighting effect of the led downlight is bright and practical, the overall visual effect will be relatively simple and plain.

How to choose the appropriate embedded LED downlight

The selection process is crucial for achieving optimal performance of embedded LED downlights. When choosing, multiple key factors need to be considered comprehensively: first, clarify the color temperature requirements, beam angle, and compatibility of dimming options with existing lighting systems. Before installation, evaluate the ceiling type and insulation performance to ensure smooth installation and long-term stable operation of the lighting fixtures, ultimately creating a high-quality lighting solution that meets the design requirements.

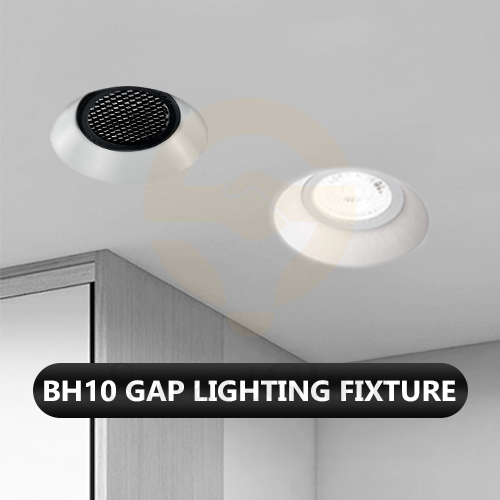

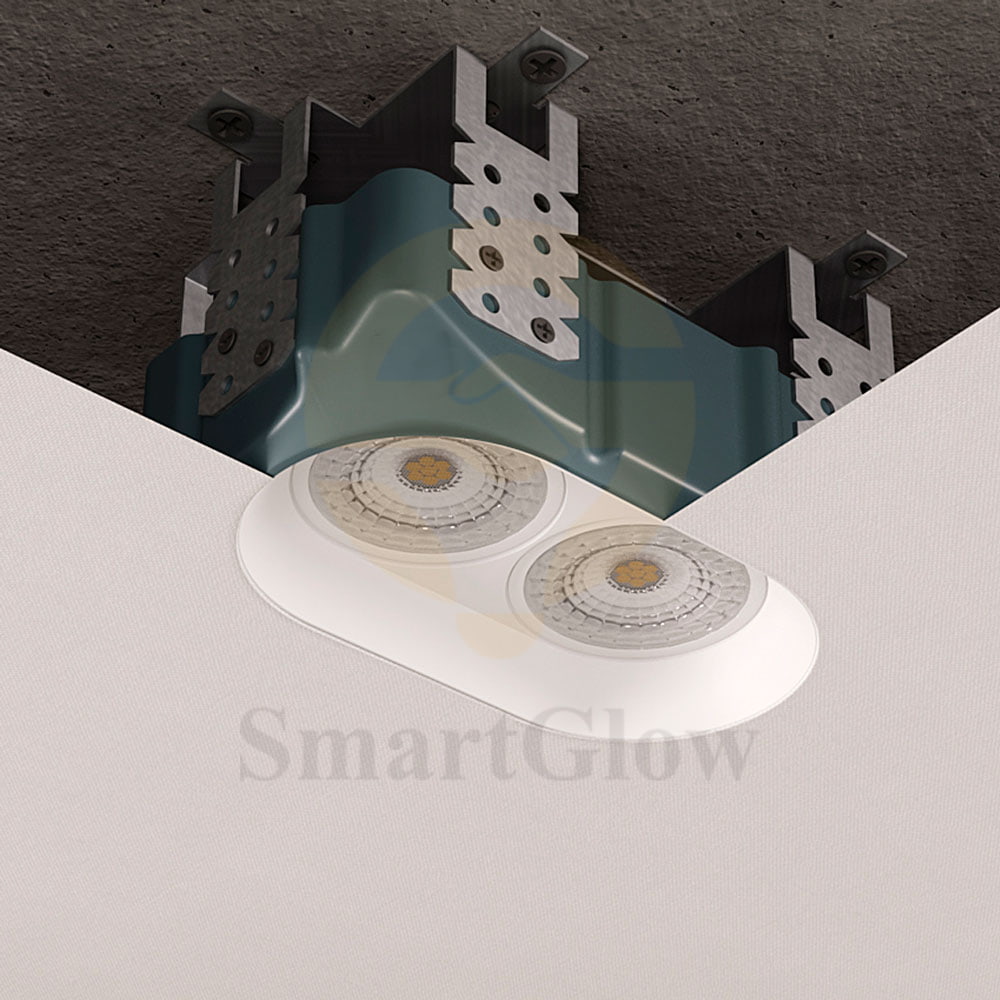

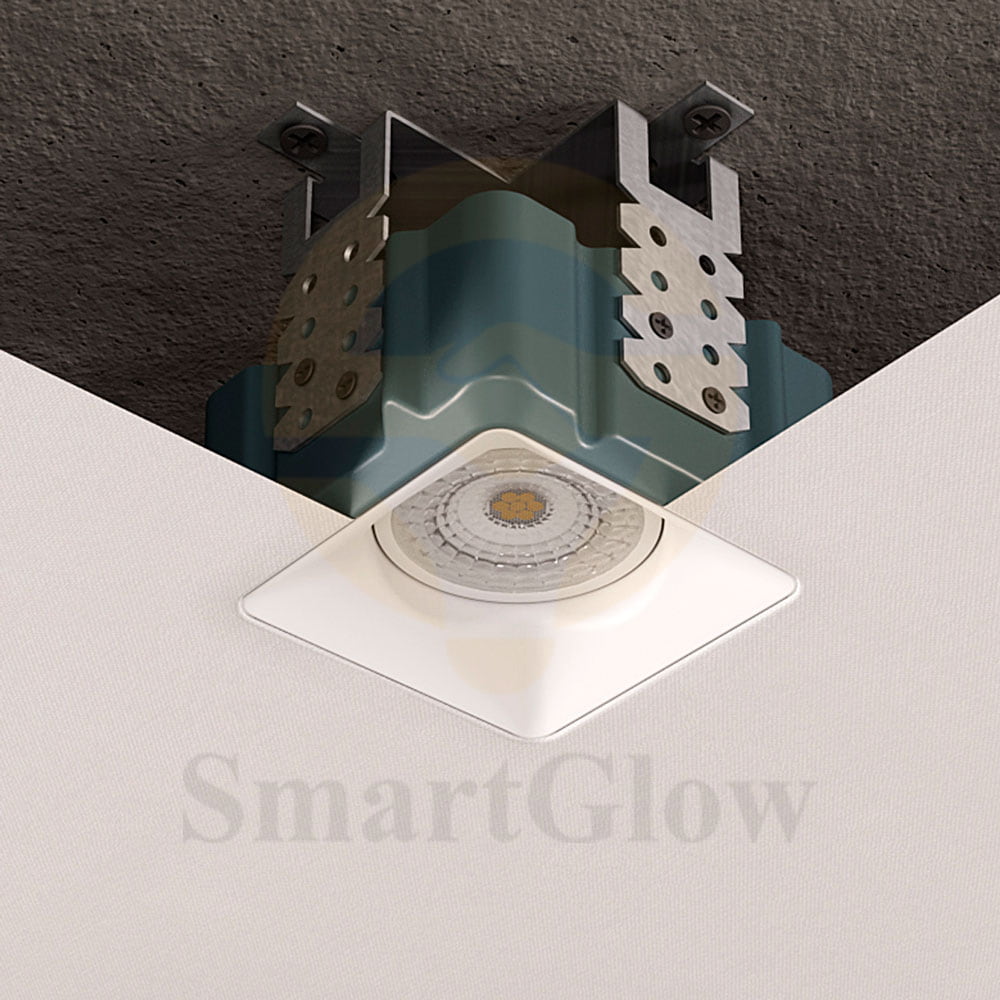

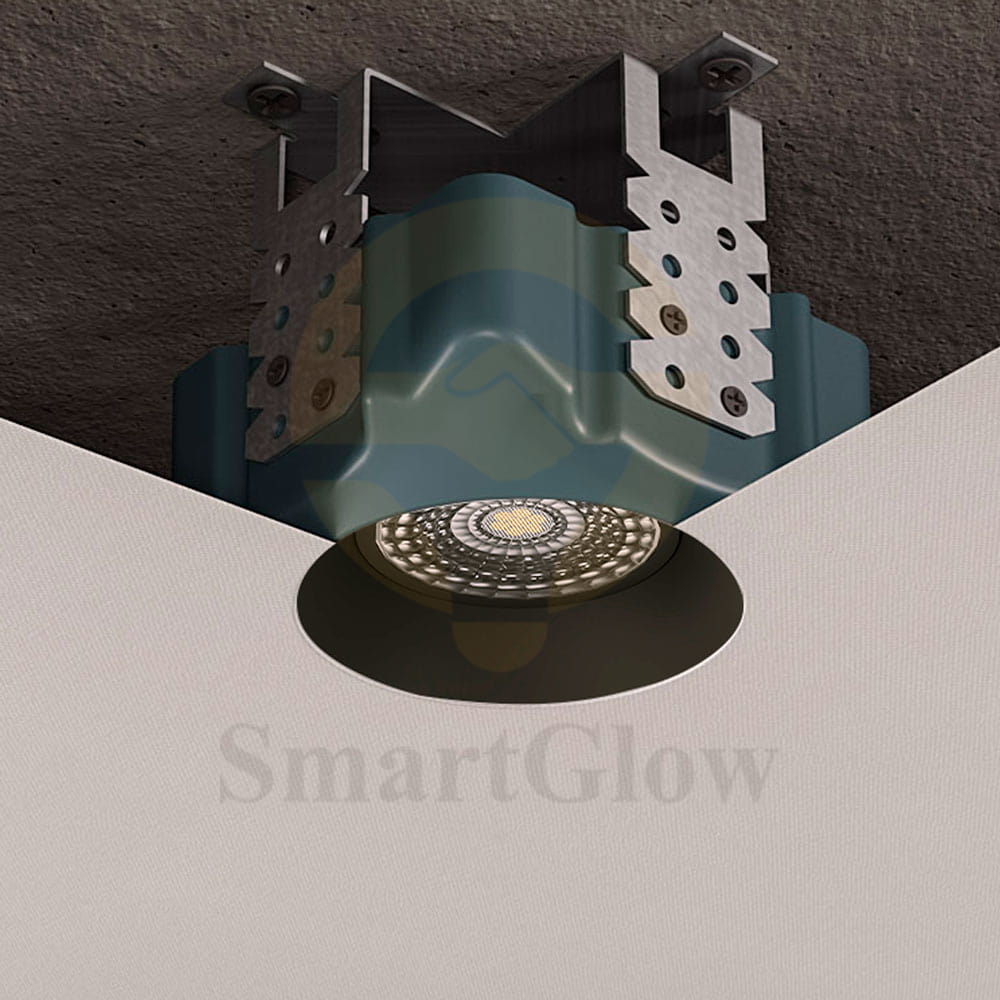

Our stretch ceiling embedded downlight series
The stretch ceiling embedded led downlight launched by SmartGlow is considered a leader in the field of led downlights. It adopts precision engineering design to ensure even distribution of light and maximize lumen output. This led downlight offers five color temperature options and is equipped with high-performance LEDs with a color rendering index (CRI) of up to 90+, providing customizable high-quality lighting.
Fire certification ensures safety and complies with the latest multi household residential fire safety regulations. The adjustable spring style fixed buckle makes installation easy and convenient, suitable for new construction and renovation projects.

Complete guide for installing embedded downlights

Pre confirmation (key! Avoid rework)

• Power off operation: Turn off the air switch in the corresponding area, use a voltage tester to confirm that there is no power in the circuit, and then proceed with construction
• Ceiling conditions: confirm that the ceiling thickness is ≥ 12cm (the ultra-thin downlight can be expanded to 8cm), and there is no barrier from beams, water pipes, wires, etc.
• Circuit matching: Check the specifications of the reserved wires to ensure compatibility with the power of the led downlight.

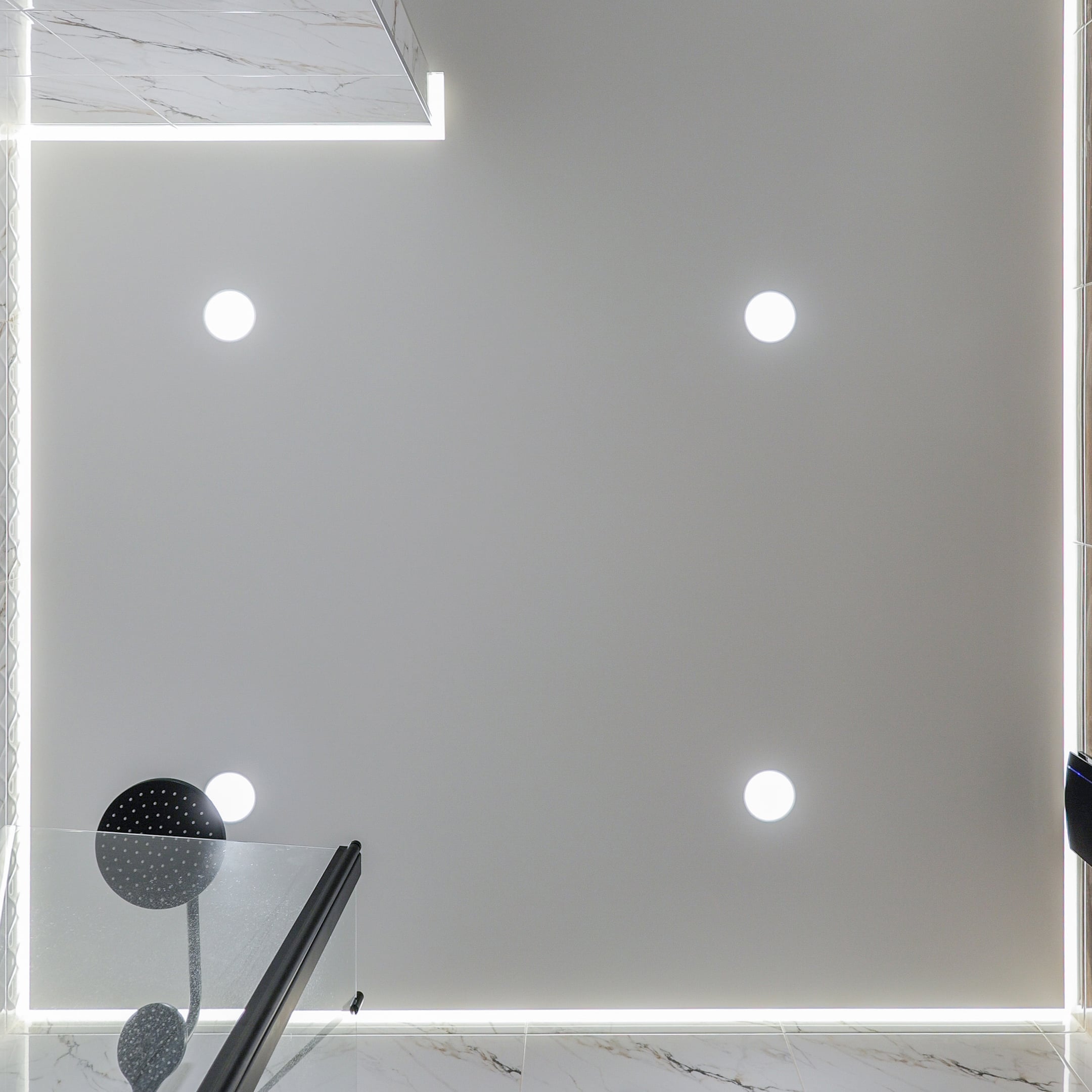

• Special scenario: The kitchen and bathroom need to confirm in advance that the downlights have an IP44+waterproof rating, and the ceiling has an insulation layer that requires the selection of IC certified anti overheating models.



Step 1: Precise positioning, marking of light positions and reinforcement areas

Measure the distance between the lamp positions with a tape measure, and mark the center point of the led downlight on the surface of the soft film with a pencil.

Based on the center point, mark the installation range of the reinforcement ring on the keel/base layer on the back of the soft film (the diameter of the reinforcement ring should be 5-10cm larger than the opening of the led downlight to ensure sufficient force area).

Calibrate all light positions with a spirit level to ensure they are on the same horizontal line or evenly distributed, avoiding visual clutter.

Step 2: Install the reinforcement ring and build a solid load-bearing foundation

Align the wooden or metal reinforcement ring with the marked position on the back and fix it on the keel with self tapping screws.

After fixing, check the stability of the reinforcement ring: press it with your hand without shaking, and keep a distance of 3-5cm from the soft film (to avoid squeezing the soft film and affecting its flatness).

If the soft film has been installed, it is necessary to insert it from the edge of the soft film or the maintenance port for operation. It is strictly prohibited to directly apply pressure and fix it on the surface of the soft film.

Step 3: Open holes in the soft film, reinforce the edges to prevent tearing

Use a hole opener to lightly drill a small hole (for positioning) at the center point marked on the soft film, and then use a soft film hole cutter to slowly enlarge the hole diameter along the center point. The hole diameter should be 1-2mm smaller than the outer diameter of the led downlight (to ensure a tight fit).

After opening the hole, gently stretch the edge of the soft film by hand to check for any risk of cracking. If the material of the soft film is brittle, use a heat sealing gun to quickly sweep the edge of the hole (adjust the temperature to low temperature), or apply a circle of special tear resistant tape to prevent tearing during later use.

Clean the debris at the opening to ensure that the edge of the soft film is smooth and free of burrs.

Step 4: Wiring operation, safety regulations

Pull out the reserved wire from the opening, leaving a length of 15-20cm (for easy subsequent wiring), wear insulated gloves, and use wire stripping pliers to remove the outer layer of the wire (about 5mm).

Remove the led downlight and connect it according to the principle of "same color docking": connect the live wire of the led downlight to the reserved live wire, connect the neutral wire to the neutral wire, and connect the ground wire to the ground wire.

After wiring, tightly wrap the interface with electrical tape to ensure that there are no exposed copper wires. Fix the driver on the reinforcement ring (away from the soft film, reserve 5cm of heat dissipation space to prevent the driver from overheating and damaging the soft film).

Step 5: Embed the led downlight, fit and fix it securely without looseness

Compress the spring buckles on both sides of the cylinder lamp and slowly insert them into the opening of the soft film to ensure that the lamp body is flush with the surface of the soft film, without protruding or sinking.

Gently release the spring buckle and snap it onto the reinforcement ring. Gently shake the led downlight to confirm that it is firmly fixed (if loose, adjust the buckle angle or add a shim to the reinforcement ring).

Check the status of the soft film: there is no pulling or deformation at the edge of the opening, and the led downlight is tightly attached to the soft film without obvious gaps (to avoid light leakage).

Step 6: Power on debugging, check the effect and safety

Restore power, turn on the switch and test whether the led downlight is emitting light normally, and whether there is flicker or glare.

Check each lamp one by one: the soft film does not sag due to the weight of the lamp, there is no overheating or odor at the wiring, and the light distribution is even without leakage.

If there is slight deformation of the soft film, adjust the position of the led downlight or reinforce the ring to ensure even force distribution.

Precautions after installation

• Installation timing: It is recommended to complete the installation of the reinforcement ring before stretching and fixing the soft film. If the soft film has already been installed, it should be operated through the inspection port to avoid damaging the integrity of the soft film.
• Force control: If the weight of a single led downlight is ≤ 500g, additional reinforcement plates (thickness ≥ 2cm) should be added if it exceeds this limit. It is strictly prohibited to install it directly without reinforcement.
• Moisture protection: In kitchen and bathroom scenarios, a waterproof gasket should be added between the reinforcement ring and the soft film to prevent moisture from seeping into the wiring.
• Maintenance tip: When replacing the led downlight in the later stage, it is necessary to first turn off the power, gently press the spring buckle to remove it, and do not forcefully pull the soft film. After replacement, recheck the fit.


Embedded LED downlights, with their core advantages of minimalist aesthetics, diverse functions, space saving, serial splicing, and intelligent controllability, have become the preferred full scene lighting for home, commercial, and various building spaces.
