| Suitable ceiling type | PVC stretch ceiling |

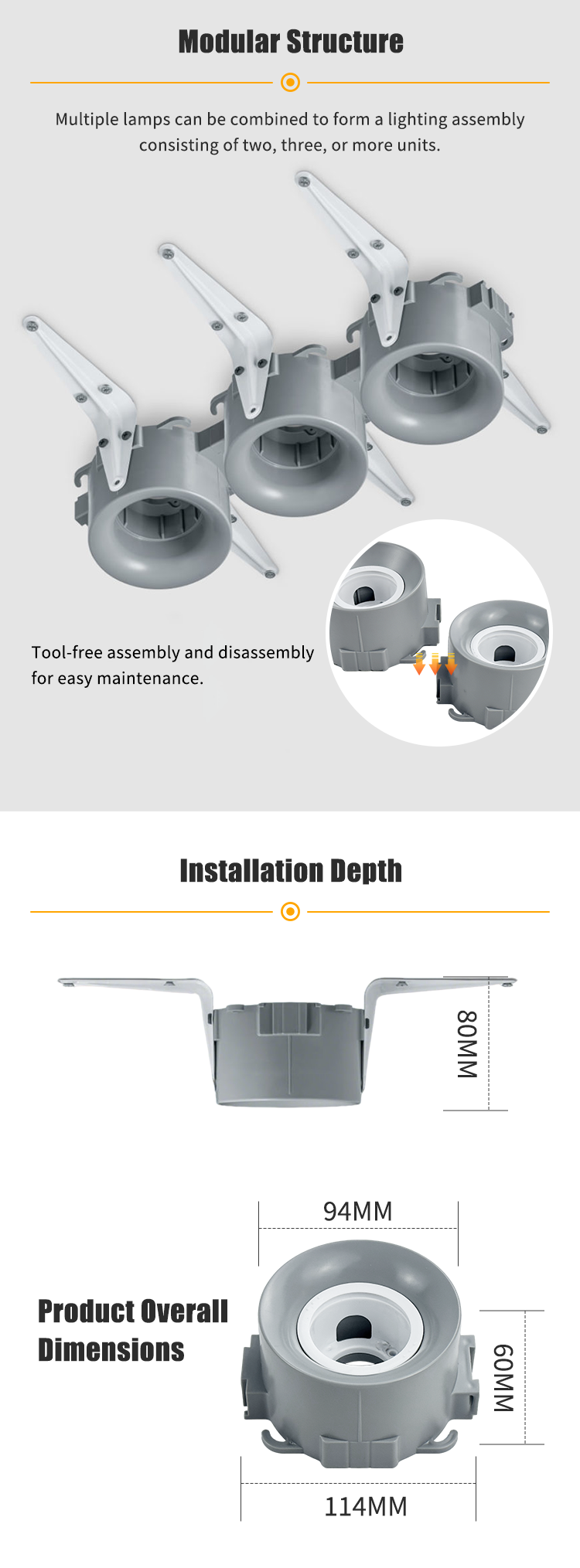

| Installation depth | 80mm |

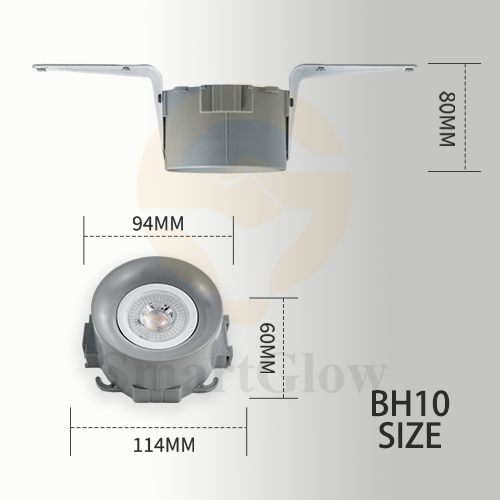

| Lamp body size | shell 94mm × 114mm, height 60mm |

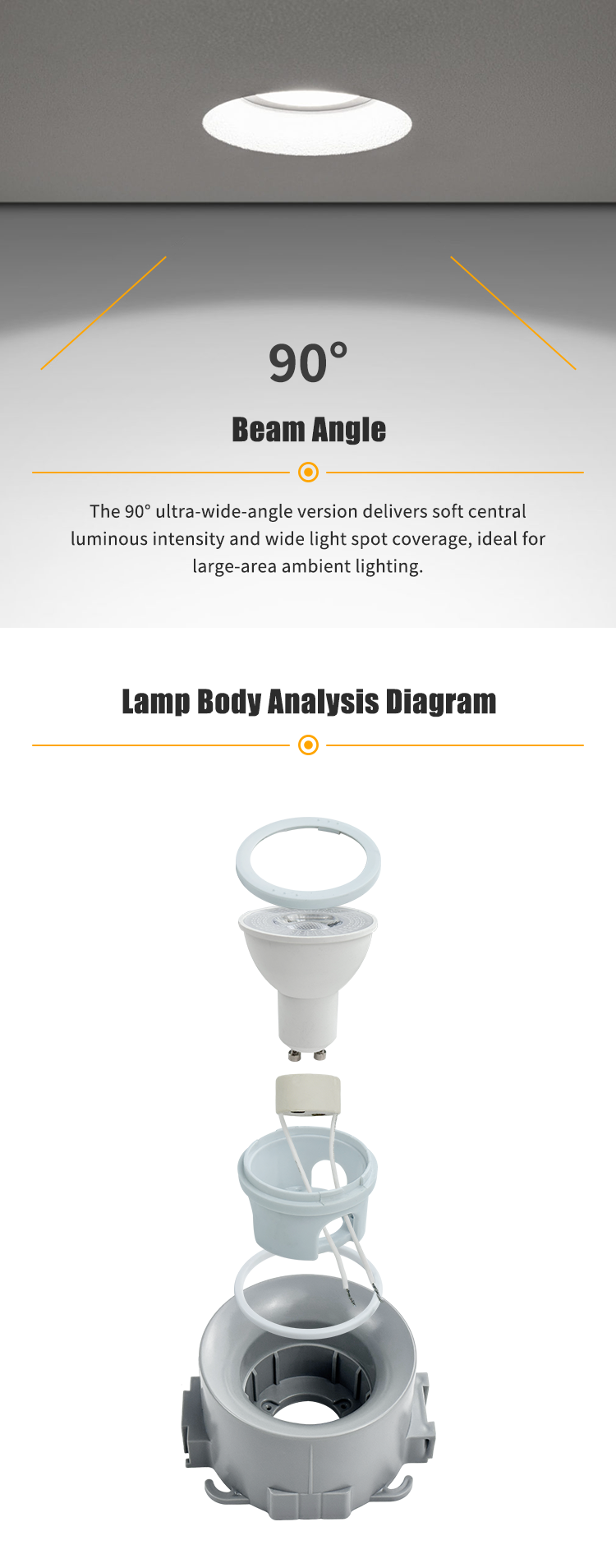

| Beam angle | 90 ° (directional focused light) |
| Protection level | IP20 (dustproof, moisture-proof) |
| Main material | ABS plastic |
| Product weight | 142g |

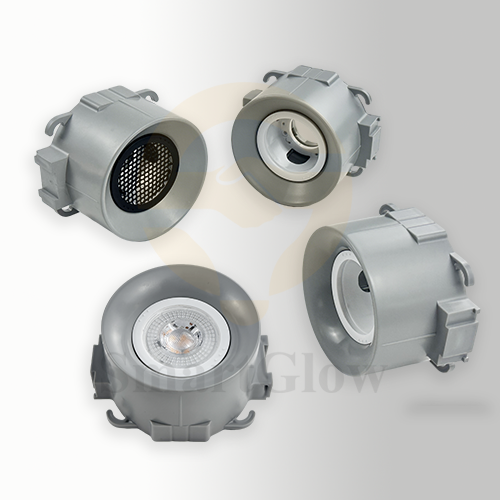

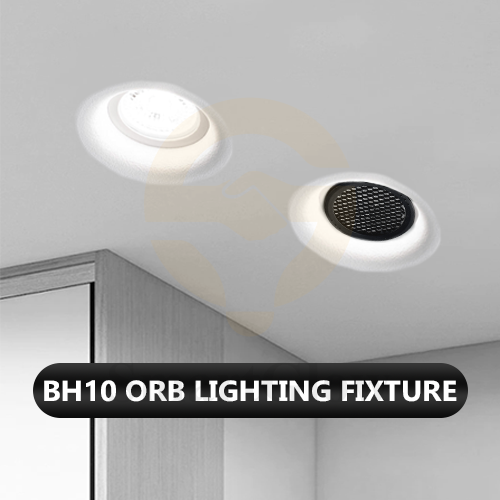

BH10 ORB is an innovative embedded point light source designed specifically for PVC stretch ceilings. It uses embedded stretching technology - through elastic PVC soft film naturally pulled in and tightly adhered to the lamp body, combined with a 15mm deep recessed design of the bulb, to create an integrated visual effect that is homogeneous with high-end gypsum ceilings. It completely solves the problems of "raised defects" and "uneven light transmission" when traditional lamps are adapted to stretch ceilings, and is an exclusive solution for local lighting in PVC stretch ceiling spaces.
Core Features
✅ Compatible with PVC soft film: Only suitable for PVC stretch ceilings. The soft film bends smoothly along the lamp body without any hard edge friction damage, and does not yellow or heat up after long-term use.
✅ Embedded stretching technology: No additional embedded parts are required. During installation, the PVC soft film is automatically embedded into the lamp body structure and adhered, completely hiding the lamp body under the soft film, leaving only uniform light effect.

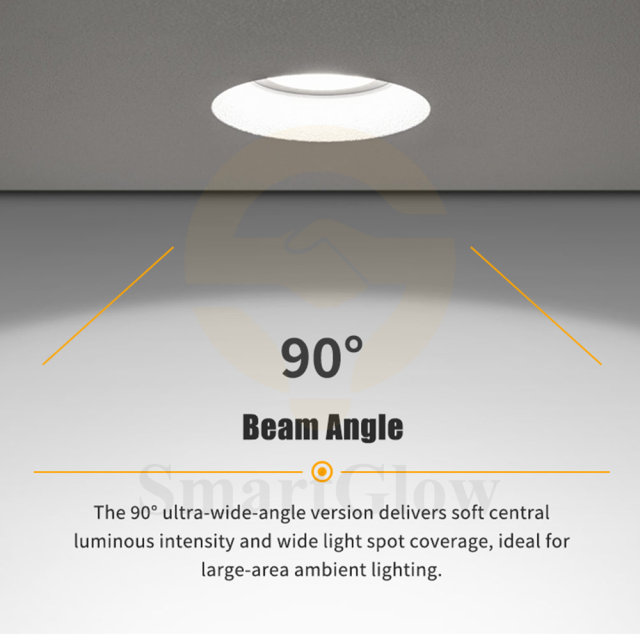

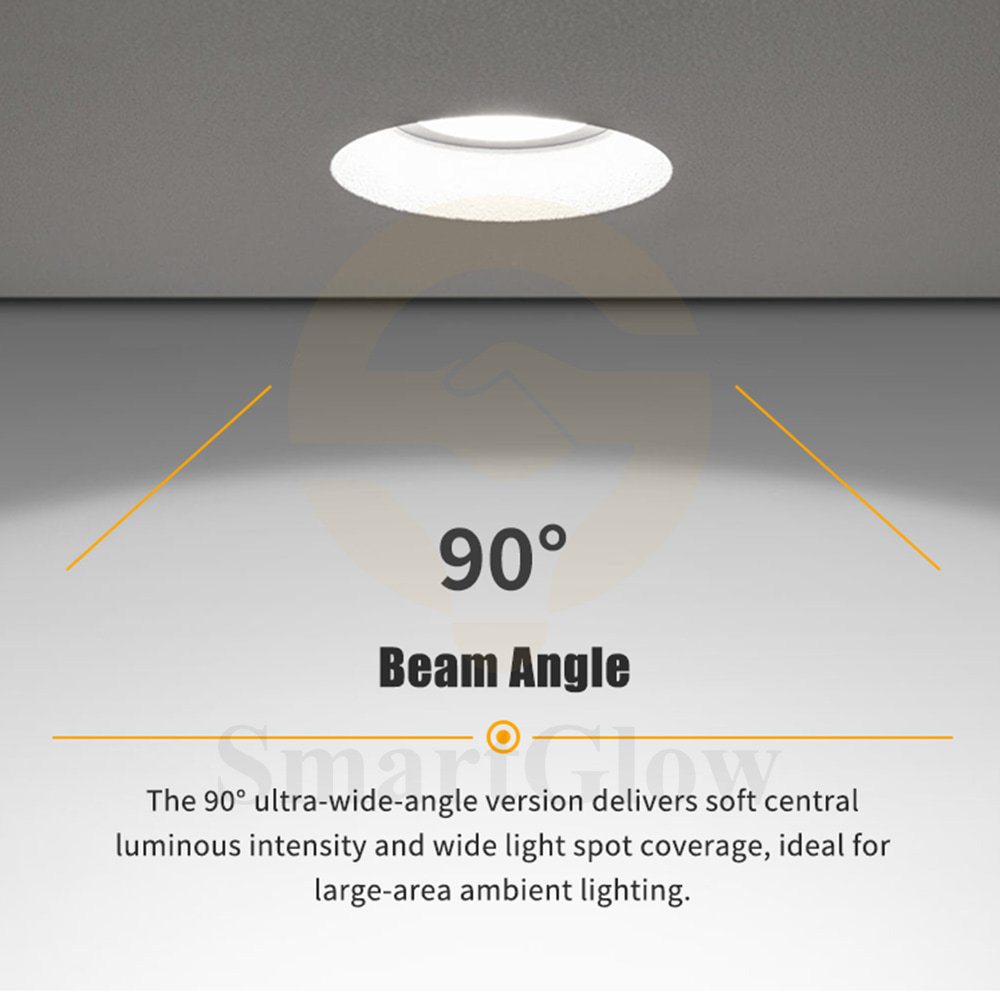

✅ 90 ° precise light control: The beam angle is fixed at 90 °, with strong light focusing ability, suitable for local key lighting (such as living room decoration area, bedroom reading area).
✅ Fast and easy installation: Single lamp installation only takes 2-4 minutes, without the need for complex wiring or ceiling openings, simply fix the base layer.
✅ Adaptation to high humidity environments: IP20 protection level, suitable for use in damp spaces such as bathrooms and toilets (ensuring a ceiling height of ≥ 2.4 meters).

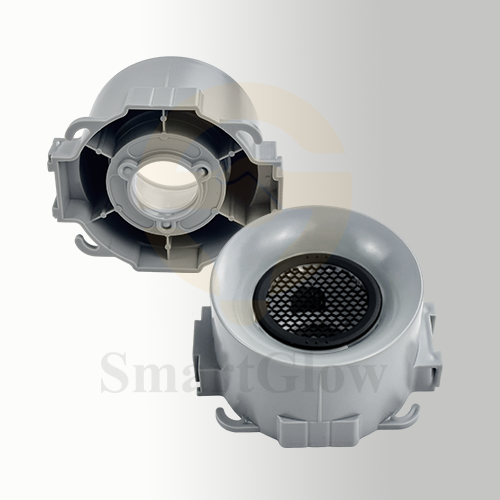

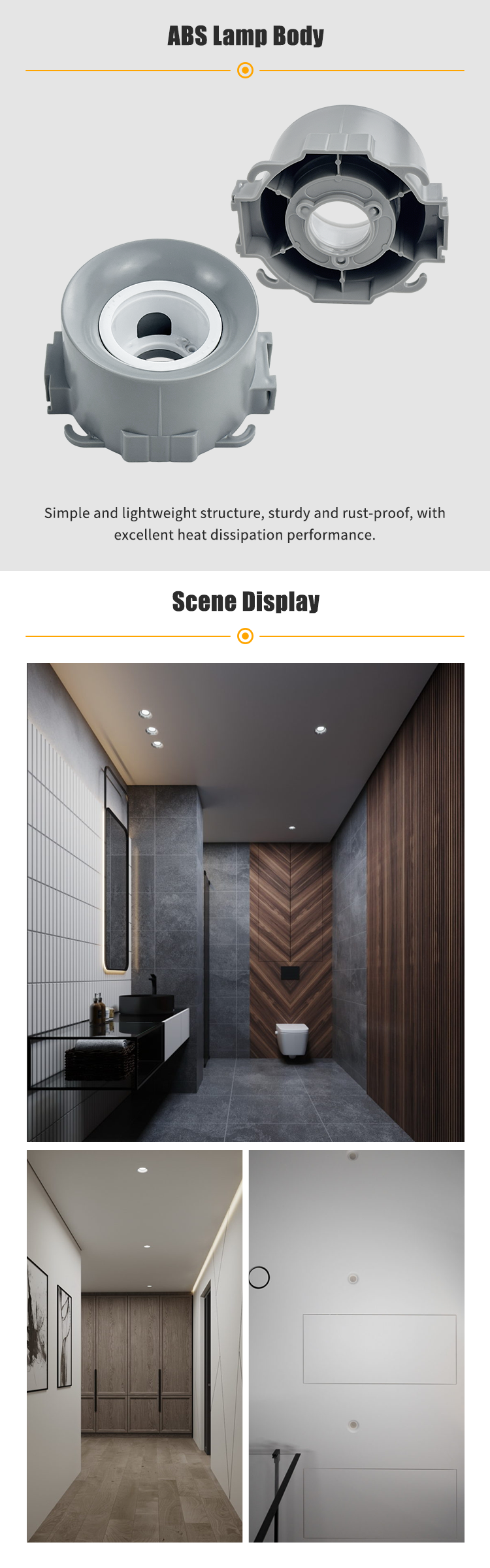

✅ Durable ABS material: the lamp body is made of ABS plastic, lightweight (142g), anti-aging, and matched with the service life of PVC stretched ceiling (10-15 years).
2-Step Rapid Installation Process
Fixed lamp base layer: Before installing the PVC stretched ceiling, fix the BH10 ORB lamp body to the ceiling base layer with screws and synchronously connect the AC220V circuit (no additional junction box required)

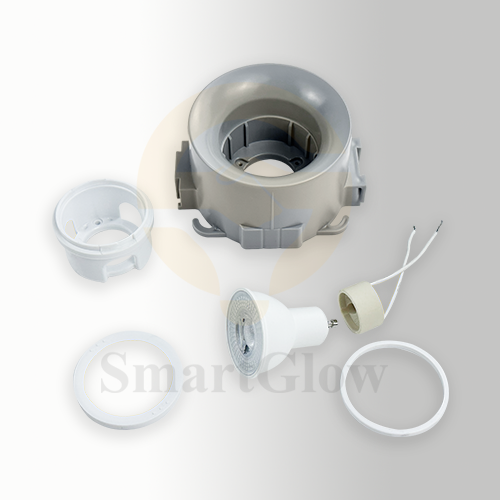

Soft film stretching and bonding: Following the conventional process of PVC stretching ceiling, the soft film is uniformly stretched towards the direction of the lamp body - the soft film will automatically embed into the "embedding and stretching" structure of the lamp body, naturally bond and tighten, and finally insert the selected GU10/MR16 bulb
Adaptation scenario
Residential space: bathroom, toilet (high humidity adaptation), bedroom, living room with PVC stretch ceiling, focusing on local lighting needs
Commercial space: hotel rooms, exhibition hall PVC stretch ceiling area, creating a simple and high-end lighting texture
Public areas: corridors and washrooms with PVC stretch ceilings, suitable for humid environments and maintaining cleanliness of the space
