【SG20-B300-12F】48V Dimmable LED Magnetic Track Flood Recessed Linear Lighting System

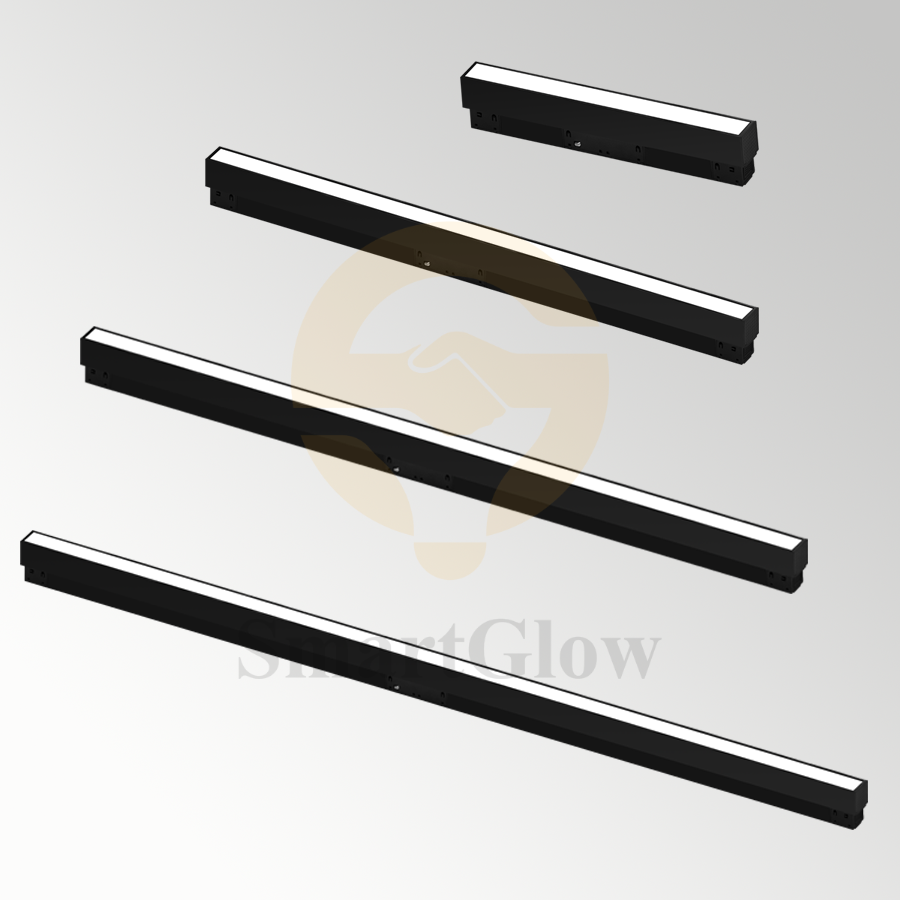

No.SG20-B300-12F/SG20-B600-24F/SG20-B900-36F/SG20-B1200-48F
This floodlight, as a track lighting fixture, provides a wide and uniform floodlight, making it an ideal choice for retail floors, offices, galleries, or exhibition halls. Magnetic installation can achieve tool free installation and repositioning. Energy saving LEDs ensure long-lasting use, combining versatility, style, and practicality to meet all your lighting needs.
$0.00
Power:
12W
12W
24W
24W
36W
36W
48W
48W
Size:
300*22*25mm
300*22*25mm
600*22*25mm
600*22*25mm
900*22*25mm
900*22*25mm
1200*22*25mm
1200*22*25mm
LED Brand:
SANAN
OSRAM
CCT:
3000K
4000K
6000K
GET A QUOTE
  • 【SG20-B300-12F】48V Dimmable LED Magnetic Track Flood Recessed Linear Lighting System
  • 【SG20-B300-12F】48V Dimmable LED Magnetic Track Flood Recessed Linear Lighting System
  • 【SG20-B300-12F】48V Dimmable LED Magnetic Track Flood Recessed Linear Lighting System
  • 【SG20-B300-12F】48V Dimmable LED Magnetic Track Flood Recessed Linear Lighting System

  • Description

  • Feature

  • Specifications



This track light is compatible with the SG20 series magnetic track rail.

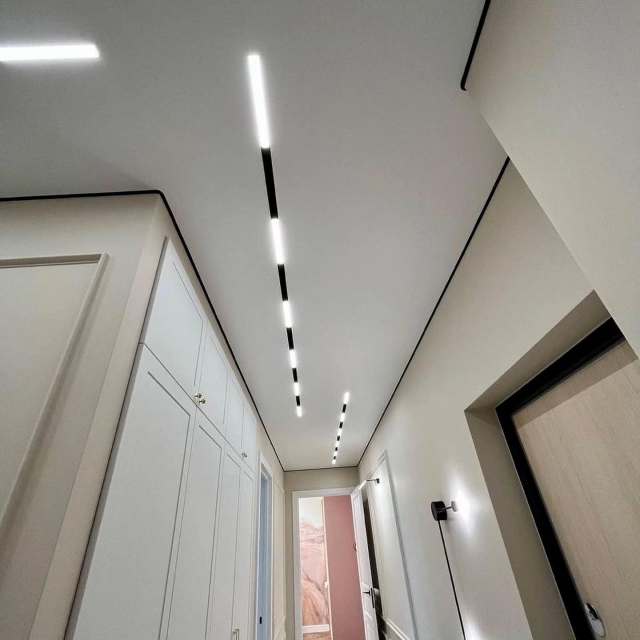

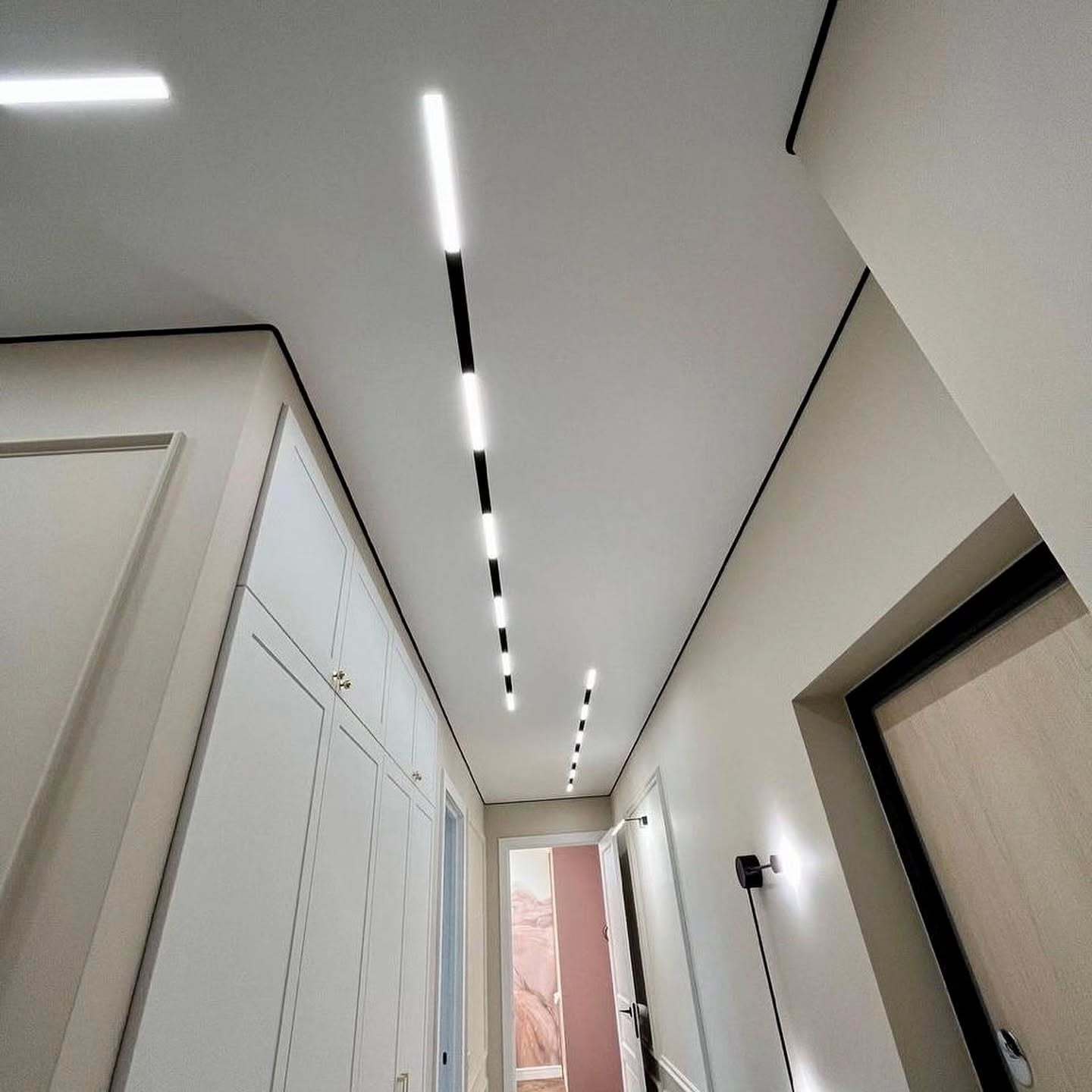

This embedded magnetic track lighting system can easily upgrade your ceiling lighting, creating a simple and smooth visual effect. The embedded track is flush with the ceiling, presenting a modern architectural aesthetic; Magnetic lamps can be easily installed, moved, or replaced without any tools. This system is suitable for living rooms, stairs, galleries, and commercial spaces, providing ultimate flexibility and allowing you to freely adjust the lighting layout as the space changes.

The stepless dimming function refers to the ability to adjust the color temperature and brightness of the light. The color temperature can be freely adjusted between warm white light, neutral white light, and cool white light, and the brightness adjustment range is 10% to 100%.

Main functions
Embedded track: Create a simple, flush appearance.

Magnetic buckle design: Simply place the light fixture near the track for installation - a powerful magnet can immediately lock it in place.

Flexible adjustment: can freely slide or reposition spotlights, linear light strips, and wall washers.

Strong magnetic attraction: safe and reliable, but easy to disassemble for maintenance.

Professional lighting data: IES files can be provided upon request; Please contact customer service for details.
Item No. SG20-B300-12F SG20-B600-24F SG20-B900-36F SG20-B1200-48F
Power 12 W 24W 36W 48W
Size 300*22*25mm 600*22*25mm 900*22*25mm 1200*22*25mm
Color Black
Voltage DC48V
Beam Angle 120°
LED Brand SANAN/OSRAM
CCT 3000K/4000K/6000K
Compatible Devices Automatic signal transmission and mode synchronization;
Supports smartphone apps and third-party voice control (requires 2.4G gateway);
Can be used in conjunction with Amazon Alexa and Google Assistant.
IP protection level IP20 non waterproof
