【SGW34】LED Linear Lighting Ceiling Stretch Tension Fabric Ceiling Aluminum Profile

Name: 【SGW34】LED Linear Lighting Ceiling Stretch Tension Fabric Ceiling Aluminum Profile
Brand: SmartGlow Magnetic Track Light
SKU: SGW34
Rating: 5 (1 reviews)

No.SGW34

This is a suspended ceiling system made of PVC film and aluminum profiles. The ceiling is fixed on the walls around the room. They are called stretch ceilings because PVC film heated to 70 º C is stretched and installed into wall mounted profiles.
We offer profiles with lengths of 2 meters and 3 meters, which will allow for the creation of continuous lines on the surface without any extra seams. At the same time, RAL color coding can also be applied to maintain consistency in the indoor color scheme.

GET A QUOTE

Description
Feature
Configuration
Specifications

The SGW34 launched by SmartGlow is a reinforced profile for stretching ceilings, suitable for stretching ceilings and designed specifically for large spaces, balancing aesthetics, structural rigidity, and durability.

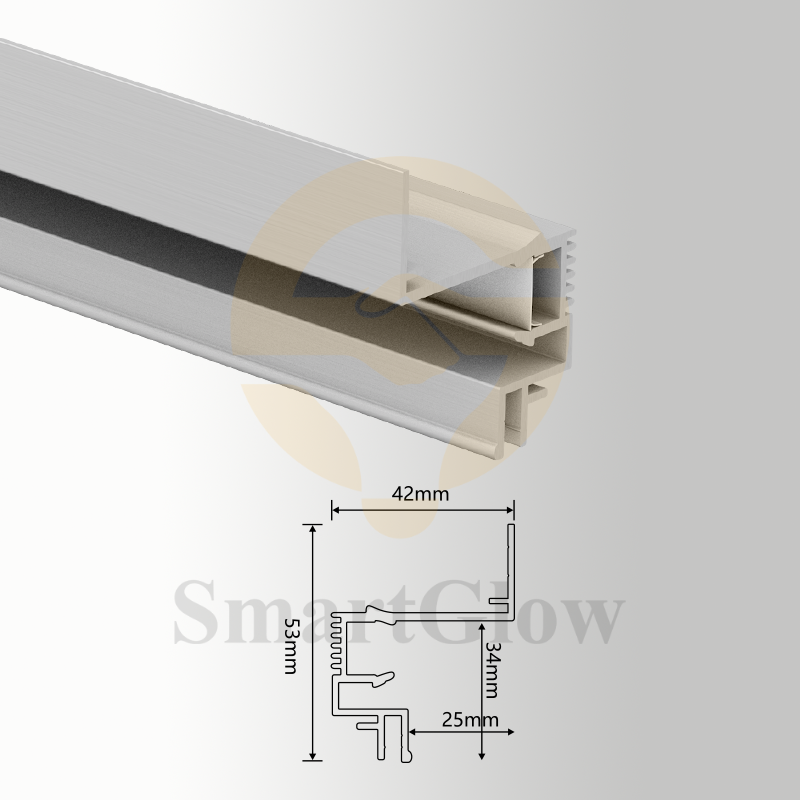

The most prominent feature of this profile is that it has a wide gap (about 40mm) with the wall, which can provide more design space for lighting. This profile adopts the same installation system as other models in the SGW series - wall installation, creating an elegant "suspended ceiling" effect. This effect is achieved through the unique shadow at the junction of the ceiling film and the wall.
This structure has a U-shaped groove that is flush with the selected surface during installation. The LED strip is placed inside the groove, directing the light towards the inside of the groove. Each compartment is individually enclosed with a PC diffusion plate to prevent the occurrence of light spots on the smooth metal surface and create a soft diffused light. The lamp housing is made of anodized aluminum, which has corrosion resistance and good heat exchange performance.

In addition, the profile also offers three surface treatment options:
Raw aluminum (uncoated),
⚪ White powder coating,
⚫ Black powder coating.

Feature:
✅ Reinforced structure, suitable for larger spaces
✅ The connection between the ceiling material and the wall is stable and reliable
✅ Fashionable shadow lines add visual depth
✅ Even under harsh conditions, installation is easy
✅ Three colors to choose from: aluminum, white (RAL-9016), black (RAL-9005)

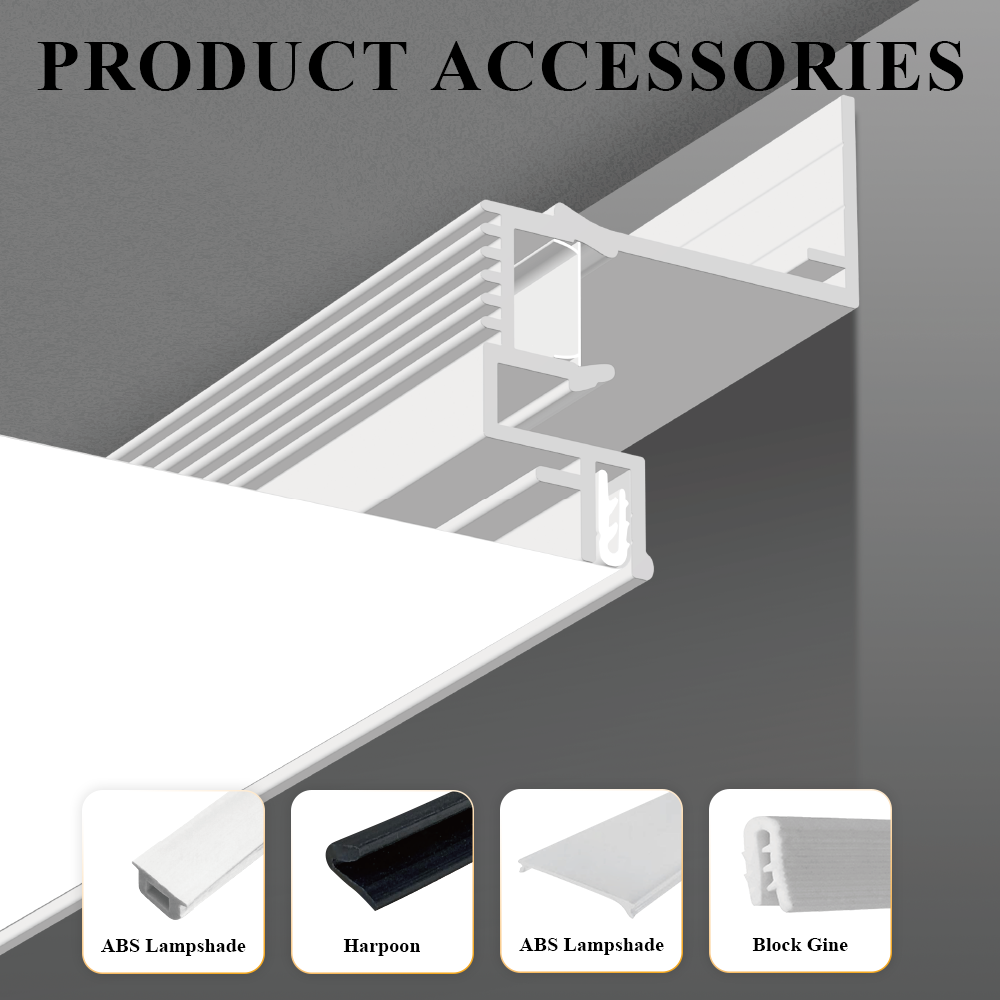

Compatible components
✅ Lampshade - Soft light diffusion, easy to install
✅ harpoon
✅ adhesive tape

ABS Lampshade
Harpoon
Pulley
End Cap

Material	6063-T5 Aluminum
Input Voltage(V)	AC 85-265V
Warranty(Year)	5-Year
Surface	Painted
Housing Color	Black/white/Silver
Length	11212.5/3/3.2/3.6 other customized Meters
Application	Industrial, Building
Product Characteristic	1.Neat and beautiful fine lines on the surface. 2.National standard aluminium billets are adopted. 3.With our even anodizing. process,which is adopted for protecting the surface4. Small order is acceptable. 5.Customized Extrusion as per your drawing.
