Aluminum LED profiles produced by SmartSlow, suitable for stretching ceilings

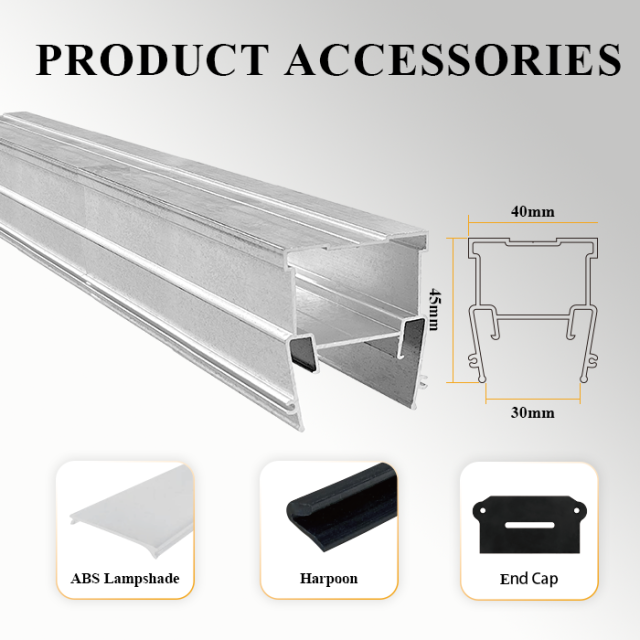

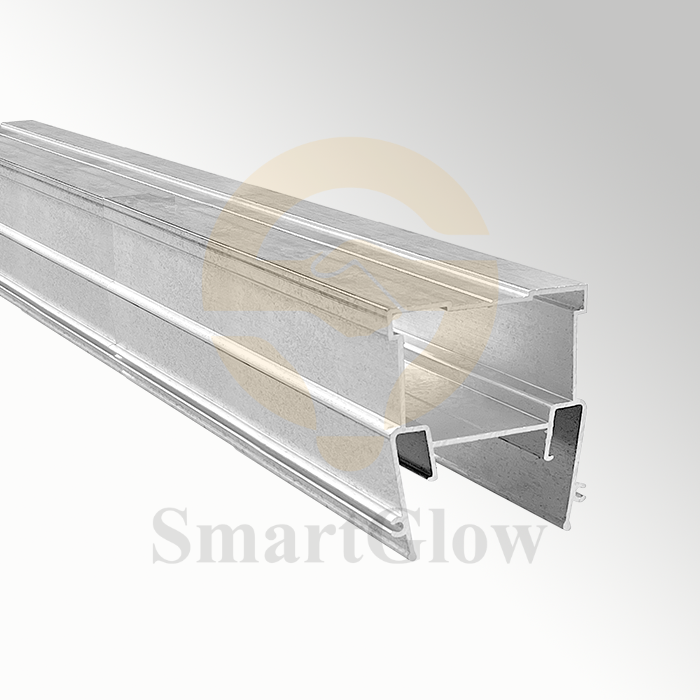

SGL01 is a reinforced aluminum profile designed specifically for creating simple 20mm wide beams in stretched ceiling systems. This model is the highest height style in the series. The height of this model is 45 millimeters, which is very suitable for scenes with sufficient space above the ceiling. Its sturdy structure supports the tension of two layers of thin film materials, ensuring uniform and consistent LED lighting throughout the entire circuit. It is compatible with 8-10mm LED light strips, providing the best brightness and heat dissipation effect - we recommend using LED light strips with a power of 14 watts per meter. Compared to the SGL02 model, this version features finer lighting and higher profile heights, making it suitable for low ceiling spaces.Main characteristics of SGL01 profiles
✅ Reinforced LED aluminum profile, suitable for stretch ceilings with 20mm light strips
✅ Installation holes on both sides - no bracket required, direct screw installation
✅ Compatible with 8-10 mm LED light strips - recommended power of 14 watts per meter

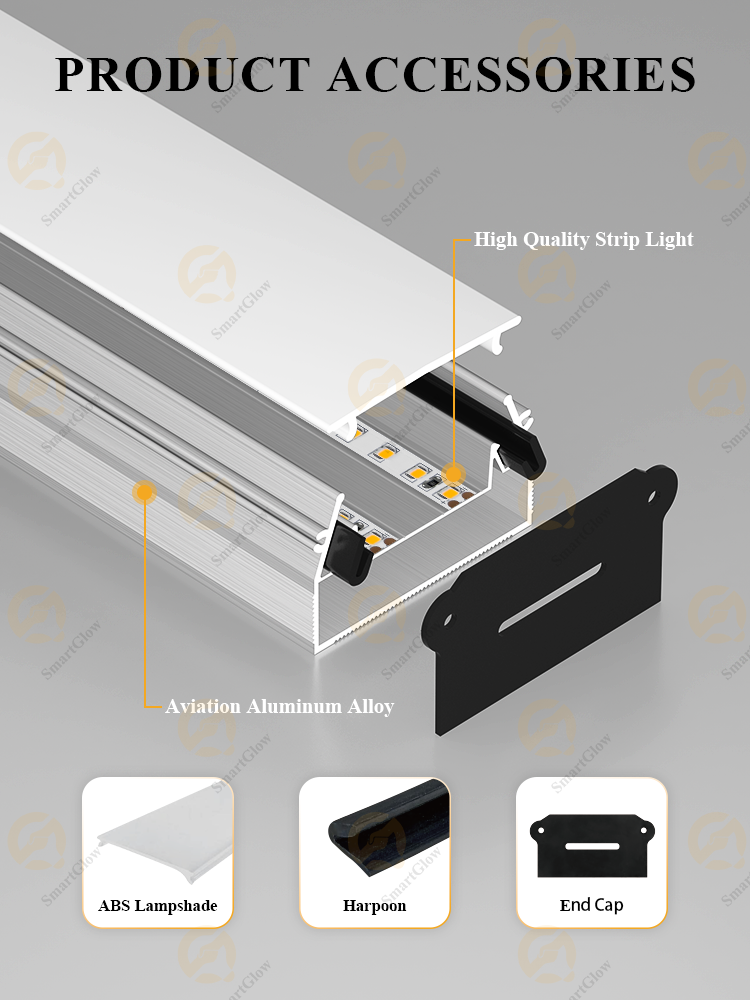

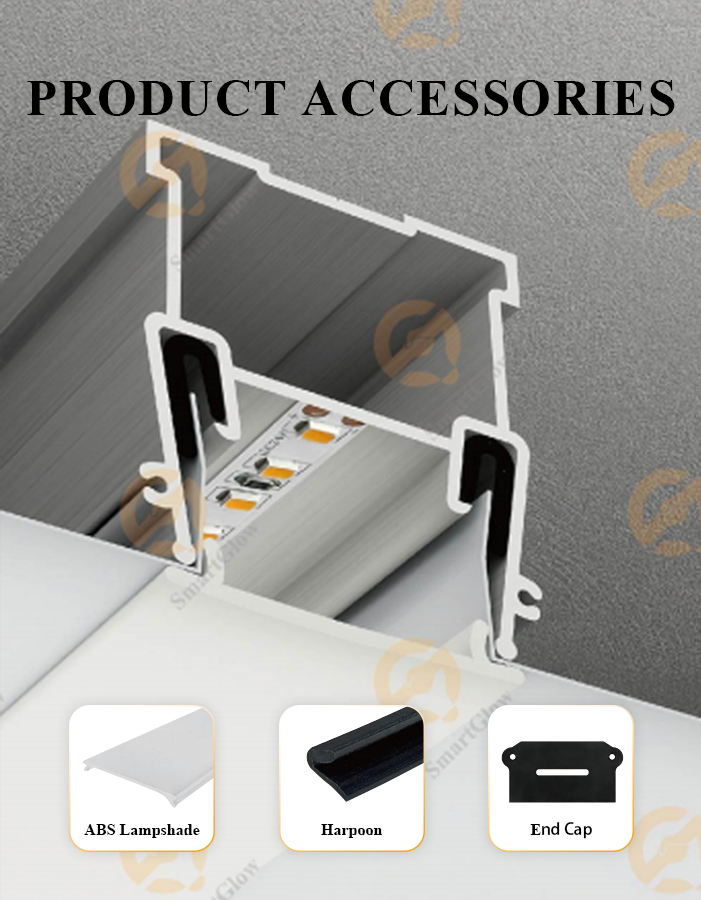

Compatible components
✅ Flexible diffuser
✅ Harpoon
LED profile replacement solution
✅ SGM03- The longest profile in this series, suitable for spaces with high ceilings
✅ SGW06- Ultra thin strip lighting suitable for creating ceilings and walls
✅ SGL02- Suitable for spaces with low ceilings
| Material | 6063-T5 Aluminum |
| Input Voltage(V) | AC 85-265V |
| Warranty(Year) | 5-Year |
| Surface | Painted |
| Housing Color | Black/white/Silver |
| Length | 11212.5/3/3.2/3.6 other customized Meters |
| Application | Industrial, Building |
| Product Characteristic | 1.Neat and beautiful fine lines on the surface. 2.National standard aluminium billets are adopted. 3.With our even anodizing. process,which is adopted for protecting the surface4. Small order is acceptable. 5.Customized Extrusion as per your drawing. |
