How To Install A Stretch Ceiling On An Old Ceiling? Attached Is A Detailed Breakdown Of Installation Costs
By SmartGlow
April 15th, 2026
Do you want to know how to install a retractable ceiling on an existing ceiling? Whether you choose PVC retractable ceiling, retractable fabric ceiling, acoustic retractable ceiling, or printed retractable ceiling, our seamless retractable ceiling system can hide pipes and wires, install quickly, minimize height loss, and upgrade any home or commercial space.
Many non construction and design industry owners are not quite sure how to install stretch ceilings for their own ceilings. Next, I will help you clarify several common ceiling foundation structures.1、 North American Residential Mainstream: Gypsum Board CeilingThe most common ceiling in North American residential buildings is drywall, also known as GWB gypsum wall panels in the industryThe standard size is 4 x 8 feet, and the thickness can be selected according to the needs. It is fixed to parallel wooden beams with screws, and the spacing between beams is usually about 18 inches;The vertical thickness of the support beam is relatively large, and gypsum board is fixed at the lower edge of the support beam. Insulation cotton is often filled between the support beams, and some spaces may also be equipped with keel strips;In newly constructed industrial/commercial buildings, the support beams may also be made of galvanized steel instead of solid wood.The top surface of this gypsum board is the most friendly basic structure for stretch ceiling installation: simply install a stretch aluminum profile frame under the original gypsum board, and then stretch the stretch ceiling film or stretch fabric ceiling without damaging the original top surface. The construction is fast and does not affect the original pipelines.
2、 High rise buildings/large flat floors: concrete floor slabs and ceilings
The ceiling of high-rise residential and commercial buildings is usually a solid concrete slab about 12 inches thick, which is also the floor slab of the upper floors:
The concrete slab is pre embedded with pipelines such as water pipes, wires, and ventilation ducts, and the surface is directly painted or plastered without additional wooden support beams;
When installing a stretch ceiling system on this type of top, simply fix the keel frame with expansion screws, then stretch the PVC/fabric film to perfectly hide the pipeline and create a flat and beautiful top surface, suitable for customized solutions such as acoustic stretch ceiling and printed stretch ceiling.
Click here to introduce you to different decorative styles of stretch ceilings

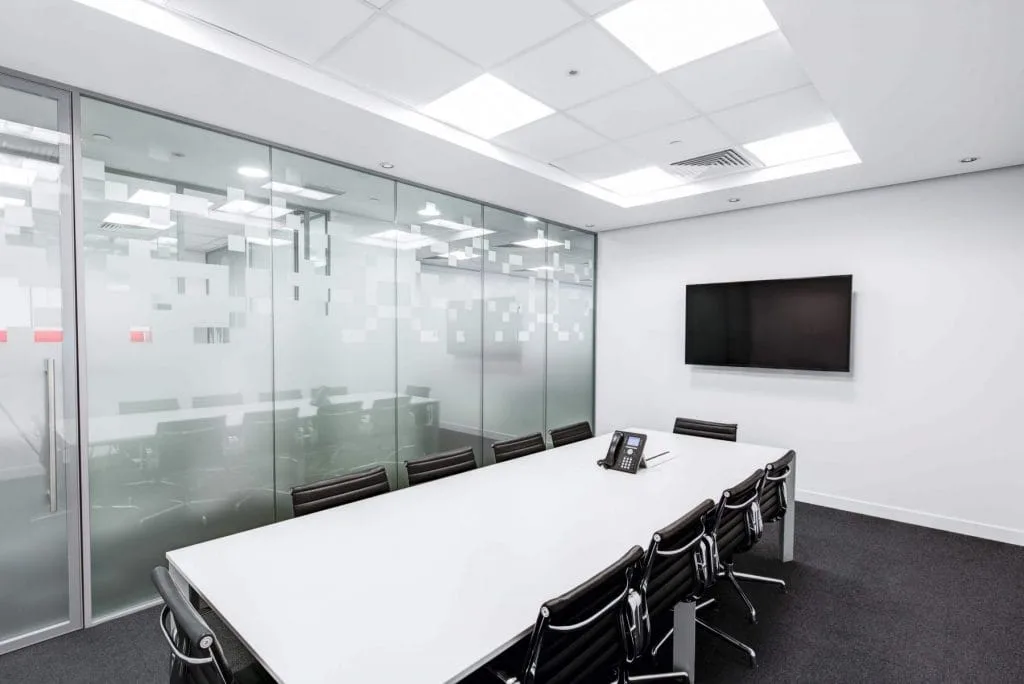

3、 Office Space: Old Ceiling
Many office, industrial spaces, and even residential basements are equipped with traditional suspended ceilings: sound-absorbing panels supported by metal grids measuring 1 x 1 foot or 1 x 2 feet are suspended from the original ceiling surface using steel wires, and the edges are fixed with wall frames. A 12 inch cavity in the middle is used to hide HVAC ducts, water pipes, and wires. This type of ceiling construction is fast and cost-effective, but it is prone to yellowing and deformation after aging, greatly reducing its appearance.
And stretch ceiling is an excellent solution for renovating such old ceilings:
Without the need to remove the original metal mesh, the semi transparent plastic lamp diffuser can be directly replaced with a customized stretch ceiling film;
It is also possible to replace some or all of the ceiling panels with specialized panels wrapped in PVC/fabric film, instantly creating a flat, stylish, and colorful new top surface that is compatible with personalized designs such as printed stretch ceilings;
After the renovation, not only does the appearance greatly improve, but it also perfectly preserves the pipeline hiding function of the ceiling. The construction is fast and does not affect the use of space, making it a cost-effective choice for revitalizing office and commercial spaces.
4、 Bare ceiling/popcorn ceiling: creative combination of industrial style and stretched ceiling
In recent years, more and more spaces have chosen to preserve exposed ceilings in industrial design: HVAC ducts and pipelines are directly exposed and uniformly painted in matte black or white to create an open and transparent visual effect, while maximizing the introduction of natural light and reducing the use of building materials, which is more in line with sustainable building concepts.
But the core pain point of exposing the top surface is poor acoustic effect, so it can be paired with acoustic stretch ceiling: hanging customized sound-absorbing stretch ceiling in key areas, which not only does not destroy the openness of industrial style, but also effectively improves the spatial acoustics, balancing aesthetics and practicality.
Whether it's renovating old ceilings or optimizing industrial spaces, choosing stretch fabric ceilings or PVC stretch ceilings can flexibly adapt and easily achieve dual upgrades in space aesthetics and functionality.
SmartGlow Lighting provides stretch ceiling solutions
SmartGlow Lighting's Stretch Ceiling is an innovative ceiling solution that differs from traditional gypsum boards and suspended ceilings. With its ultimate lightweight installation advantage, it has become a popular choice for revitalizing home activity rooms, residential and commercial spaces.
Unlike traditional ceilings that require a cavity of about 12 inches to hide pipelines, the installation height requirement for stretched ceilings is extremely low, with a minimum installation distance of less than 1 inch. It can be extremely close to existing finished or unfinished ceilings, with almost no compression of floor height, making it perfect for small-sized and old house renovations with limited floor height. Its installation logic is similar to traditional ceilings, but it does not require embedding hard panels. It is only formed by customizing stretched ceiling aluminum profiles and high elasticity stretch ceiling film stretching, with fast construction and no dust pollution. It can easily create personalized ceiling effects such as customized beige high gloss, giving stunning visual texture to spaces such as family activity rooms.
SmartGlow Lighting provides professional installation guidance services. Whether it's renovating old ceilings, renovating confined spaces, or pursuing minimalist and modern ceiling designs, SmartGlow Lighting stretched ceilings are high-quality solutions that balance aesthetics, space, and practicality.
Installation process of stretch ceiling
After understanding the unique installation advantages of stretch ceilings, we will now provide you with a detailed breakdown of the entire process from measurement to delivery. This standardized installation system ensures that regardless of the shape of the space, it can present a smooth and stunning high gloss effect. At the same time, the entire construction process is fast and free of dust pollution. Generally, a single project can be completed in only 1-3 hours.
1、 Preliminary survey and preparation
The entire installation process requires at least two professional installers to work together.
On site precise measurement: The first step for the master to come on-site is to conduct a field survey, accurately measuring the length, width, corner angle, and floor height data of the area to be installed.
Data transmission and customization: Customize exclusive stretch ceiling film materials and profiles according to actual dimensions.
On site preparation: An appointment is required before installation. If there are large furniture on the wall, it is recommended to move them away in advance; Unless the room is extremely small or crowded, there is no need to move furniture out of the room. The master will flexibly move items on site to leave enough space for construction.
2、 Core installation steps
The fixation of stretch ceiling profiles and the tensioning of stretch ceiling films are the core steps in installing stretch ceilings.
Profile in place: The delivered profiles are pre cut plastic or aluminum strips, with specifications precisely customized according to the selected film material type (such as high gloss PVC film, fabric film) and installation method (top or wall installation).
Fixed installation: We will lay and fix the cut profiles one by one along the edges of the ceiling (or irregular walls). The fixing method adopts multiple gypsum board screws directly screwed into the base layer. Due to the sufficient screw density and fastening strength to support the fully tensioned ceiling tension, there is no need to additionally fix it to the keel, ensuring structural stability without damaging the original top structure.

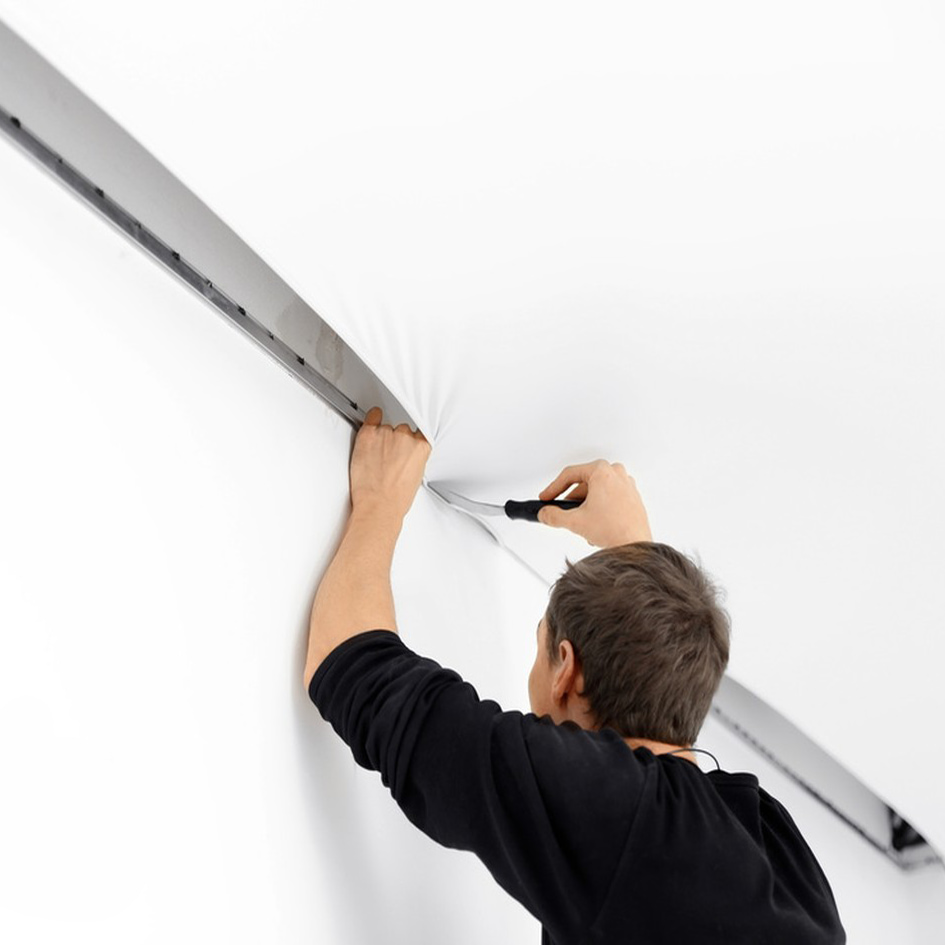

Membrane tensioning: The membrane is pre fixed with fork edges before leaving the factory. The installation personnel clamp the edge of the membrane into the profile track and use professional tools to gradually tension it from one corner to all sides until the membrane is completely tight and flat, presenting a seamless and smooth visual effect.
Whether it's a flat square space, a shaped ceiling with a sloping angle, or even a wall installation as a decoration for large artworks, we can perfectly achieve customized effects of stretching ceilings through precise profile cutting and installation angles.

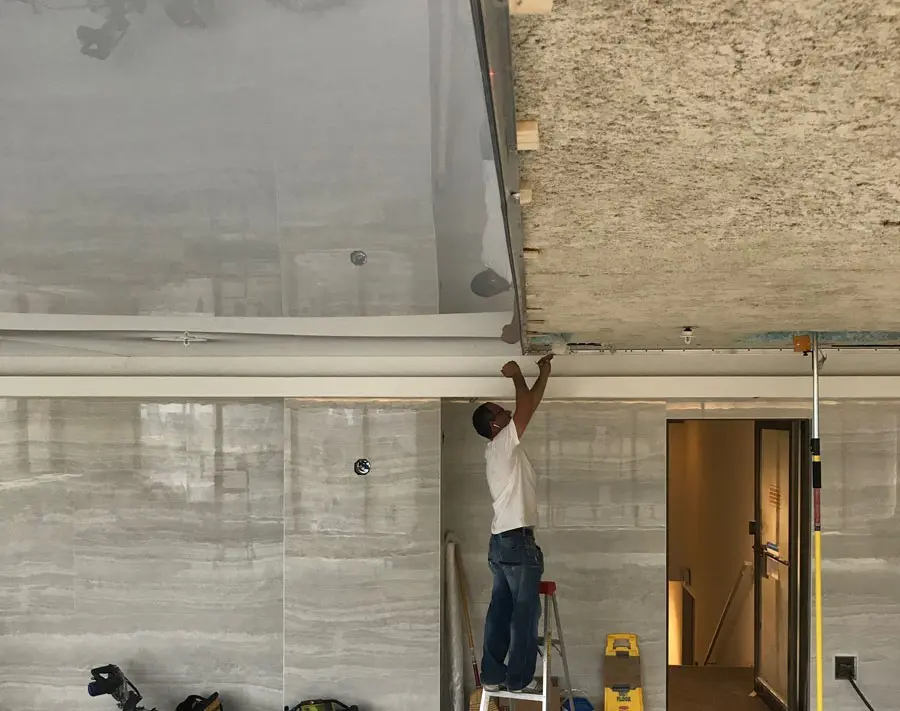

Install stretch ceiling on popcorn ceiling
The installation personnel will use a specialized scraper of the corresponding shape to press the sharp edge of the film material into the slot of the installed profile according to the selected profile type. Before fully positioning, the surface of the membrane material will exhibit a wrinkled feeling similar to rubber, which is a normal phenomenon.
The PVC film material we commonly use needs to undergo a process of "stretching first, then shrinking". During construction, we will use specialized heating equipment to evenly blow hot air to make the materials more elastic. All film materials will have a cutting and splicing space that is about 15% smaller than the actual installation space. The installation personnel start from multiple equilibrium points in the room, carefully spreading the membrane material gradually until it covers the entire area completely, and smoothing all edges and corners.
3、 Finished product reinforcement and practical performance
The harpoon strip and profile adopt an interlocking structure, and the greater the tension on the membrane material, the more firmly it is clamped and fixed. The finished stretched ceiling can bear a weight of approximately 0.17 kilograms per square meter (0.0348 pounds per square foot), and will undergo slight tensile deformation when subjected to force. Therefore, the hanging lights, recessed lighting, ventilation openings, and other equipment in the space need to be independently supported by the building structure above. Our installation technicians will install special collars at these locations to perfectly integrate the lighting fixtures and ventilation openings with the stretched ceiling, achieving a seamless visual effect.
This load-bearing and waterproof performance is of great practical value in actual use. Once there is a leak in the pipeline above the ceiling, the stretch film material can temporarily support the accumulated water. Before closing the valve and draining the water through siphoning, it effectively avoids water dripping and damaging the floor, furniture, and carpet.
4、 Construction completion
The entire installation process is efficient and fast, taking less than 2 hours to complete - unless it is an industrial scale ultra large space, structurally complex, or the construction environment temperature is too low, the construction period will be appropriately extended. After the construction is completed, all furniture that has been moved can be immediately returned to its original position without waiting for the materials to dry. The room can be instantly restored to normal use without affecting your daily routine. It is worth mentioning that all the cutting work of film materials and profiles is completed in our factory, and there will be no scraps generated during on-site construction, keeping your space clean without the need for additional cleaning.
What's even more reassuring is that our construction only targets the edge areas of the room. Even if there are items in the middle of the room that usually hinder ceiling construction, such as swimming pools, hot tubs, water beds, or large furniture, there's no need to worry and they won't have any impact on these items.
In addition, our stretch ceiling material comes with its own finished color, which does not require subsequent on-site painting or coloring processes. The color is long-lasting and stable, and there will be no fading, peeling, or blistering issues; The installation of lighting fixtures, ventilation openings, and other equipment does not require us to visit them again.
Reference for installation cost of stretch ceiling
The installation cost of a stretched ceiling mainly depends on material selection, space size, construction difficulty, and base type. The overall cost-effectiveness is outstanding, and combined with its durability and aesthetics, it is a cost-effective top renovation plan. The following are cost references for common scenarios, including all consumables such as Stretch Ceiling Film, profiles, and "harpoon" strips.
1. Basic household scenarios (such as bedrooms, small living rooms, with an area of 20-30 square meters): using conventional PVC film materials, the cost is about 12-18 US dollars per square foot, and the overall cost is between 240-540 US dollars, suitable for families who pursue simplicity and practicality without the need for large customization.
2. Quality customization scenarios (such as family activity rooms, study rooms, with an area of 30-50 square meters): choose fabric texture film materials or high gloss PVC film, support small format customization, cost about 18-25 US dollars per square foot, and the overall cost is between 540-1250 US dollars, balancing appearance and texture.
3. Special base/complex scenes (such as popcorn ceilings, irregular ceilings, or spaces that require large format printing): Due to the need to adapt to base treatment, customize profiles, and special construction techniques, the cost may increase appropriately, approximately $25-35 per square foot, and the specific quotation needs to be accurately based on the on-site survey results.
4. Industrial/commercial scenarios (such as office areas, exhibition halls, and other large spaces): Calculated based on batch construction, the cost can be appropriately discounted. Specific details need to be determined based on the space scale, membrane material type (such as acoustic stretch ceiling, printed stretch ceiling), and construction period. A dedicated person will conduct on-site surveys and provide a detailed quotation.
It should be noted that our quotation includes all material customization costs, and there is no need to pay additional fees for cutting, repainting, etc; If it is necessary to reserve lamp and ventilation positions on the stretched ceiling and install special loops, there will be no additional charges, truly achieving clear pricing.
If you are interested in installing stretch ceilings (or walls) and would like to install the same in other spaces, please feel free to contact SmartGlow Lighting. We provide professional and customized one-stop services to give your space a simple and high-end texture!
